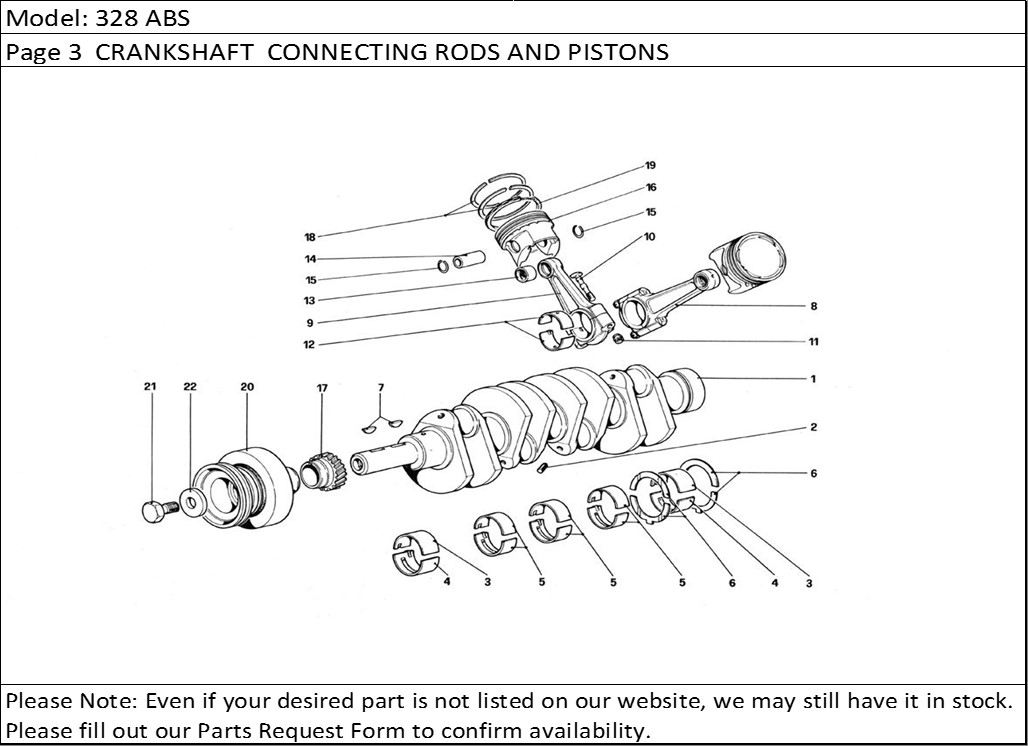

328 ABS Page 3 CRANKSHAFT CONNECTING RODS AND PISTONS
Product Description
328 ABS Page 3 CRANKSHAFT CONNECTING RODS AND PISTONS
Click on part number below to order. If unable to click on part number please fill out and submit Parts Request Form below to order.
| Location in Parts Diagram | Part # | Description | Quantity Used |
|---|---|---|---|
| 1 | 116961 | Crankshaft | 1 |
| 2 | 14326150 | Plug | 8 |
| 3 | 100118 | Upper half bearing | 2 |
| 3 | 100120 | 2nd undersize 0,508 mm. on ? | 2 |
| 4 | 100122 | Lower half bearing | 2 |
| 4 | 100123 | 1st undersize 0,254 mm. on ? | 2 |
| 4 | 100124 | 2nd undersize 0,508 mm. on ? | 2 |
| 5 | 104024 | 1st undersize 0,254 mm. on ? | 6 |
| 5 | 104023 | Half bearing, upper and lower | 6 |
| 5 | 104025 | 2nd undersize 0,508 mm. on ? | 6 |
| 5 | - | Shim | 6 |
| 6 | 100147 | 2nd oversize 0,25 mm. | 2 |
| 6 | 100146 | Shim for rear support | 2 |
| 6 | 113984 | 1st oversize 0,127 mm. | 2 |
| 7 | 10206020 | Tongue | 2 |
| 8 | 109738 | Connecting rod, complete | 8 |
| 9 | 109688 | Connecting rod and cap With assembly no. 109738 | 8 |
| 10 | 100156 | Bolt securing connecting rod | 16 |
| 11 | 104011 | Nut for connecting rod bolt | 16 |
| 12 | 100150 | Connecting rod half bearing | 16 |
| 12 | 100151 | 1st undersize 0,254 mm. on ? | 16 |
| 12 | 100152 | 2nd undersize 0,508 mm. on ? | 16 |
| 13 | 107100 | Bush for gudgeon pin | 8 |
| 14 | 119537 | Gudgeon pin | 8 |
| 15 | 100174 | Ring for gudgeon pin | 16 |
| 16 | 126580 | Piston with piston ring - Not for US - C7 and C8 | 8 |
| 16 | 126754 | Piston with piston ring - For US - C7 and C8 | 8 |
| 17 | 117655 | Driving sprocket for timing system | 1 |
| 18 | 126583 | Ac torsion seal ring1st- 2nd groove | 16 |
| 18 | 126582 | Set of pistons rings | 1 |
| 19 | 119851 | ROF scraper ring with spring3td groove | 8 |
| 20 | 126189 | Torsion damper with pulley | 1 |
| 21 | 100476 | Screw | 1 |
| 22 | 102775 | Washer | 1 |
