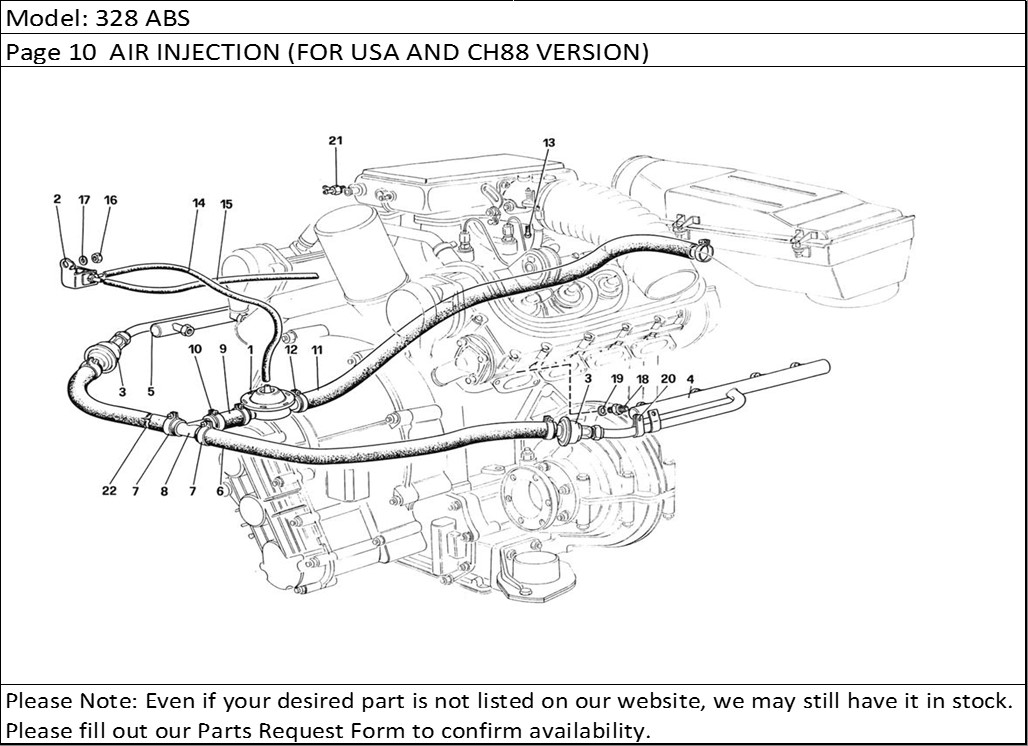

328 ABS Page 10 AIR INJECTION (FOR USA AND CH88 VERSION)
Product Description
328 ABS Page 10 AIR INJECTION (FOR USA AND CH88 VERSION)
Click on part number below to order. If unable to click on part number please fill out and submit Parts Request Form below to order.
| Location in Parts Diagram | Part # | Description | Quantity Used |
|---|---|---|---|
| 1 | 121751 | Cut-Off valve | 1 |
| 2 | 129059 | Solenoid valve | 1 |
| 4 | 121808 | Right manifold for air injection | 1 |
| 5 | 121783 | Left manifold for air injection | 1 |
| 6 | 139175 | Left pipe | 1 |
| 7 | 12180290 | Clip | 4 |
| 8 | 109887 | T union | 1 |
| 9 | 116783 | Sleeve | 1 |
| 10 | 12180290 | Clip | 2 |
| 11 | 118231 | Pipe | 1 |
| 12 | 12180290 | Clip | 2 |
| 13 | 113637 | Union - For US | 1 |
| 14 | 135959 | Pipe - For C8 | 1 |
| 14 | 118502 | Pipe - Not for C8 | 1 |
| 15 | 115147 | Pipi - For C8 | 1 |
| 15 | 117170 | Pipe - Not for C8 | 1 |
| 16 | 16104111 | Nut -Not for C8 | 1 |
| 17 | 14496501 | Washer - Not for C8 | 1 |
| 18 | 121718 | Union | 8 |
| 19 | 10257060 | Gasket | 8 |
| 20 | 119811 | Clamp | 2 |
| 21 | 135951 | Union - For C8 | 1 |
| 22 | 139174 | Right pipe | 1 |
