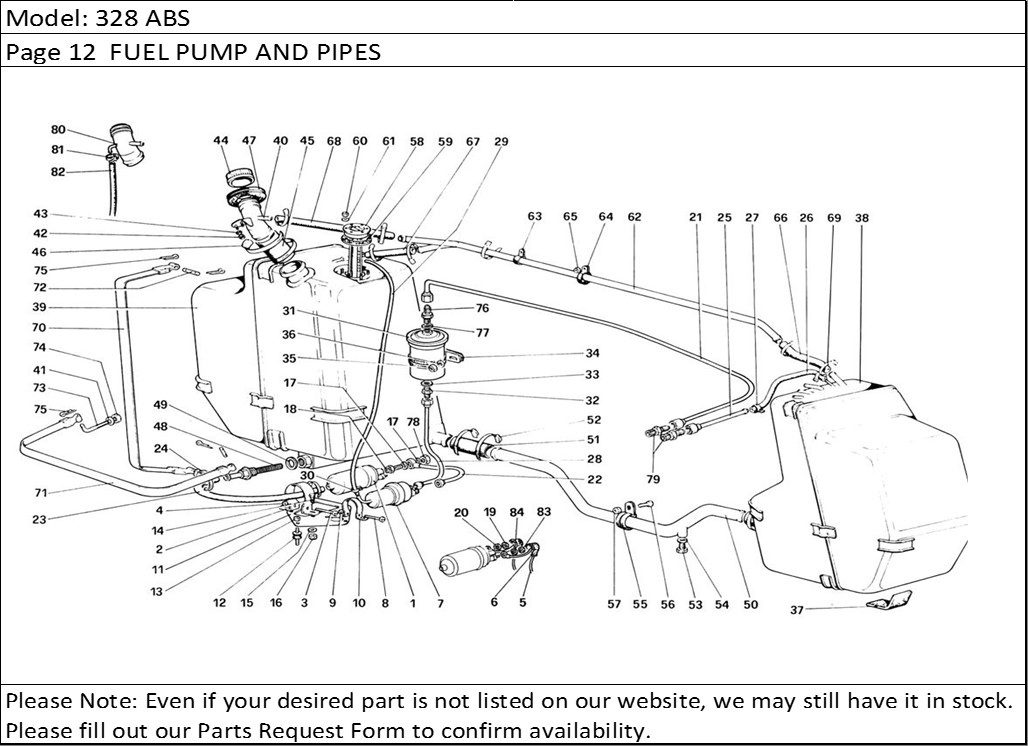

328 ABS Page 12 FUEL PUMP AND PIPES
Product Description
328 ABS Page 12 FUEL PUMP AND PIPES
Click on part number below to order. If unable to click on part number please fill out and submit Parts Request Form below to order.
| Location in Parts Diagram | Part # | Description | Quantity Used |
|---|---|---|---|
| 1 | 121727 | Fuel pump | 1 |
| 2 | 113673 | Pump strap | 1 |
| 4 | 14089311 | Nut | 1 |
| 5 | 115153 | Earth cable | 1 |
| 6 | 107003 | Rubber boot | 2 |
| 7 | 129037 | Accumulator - For C8 | 1 |
| 7 | 113978 | Accumulator - Not for C8 | 1 |
| 8 | 10376111 | Screw | 1 |
| 9 | 14089311 | Nut | 1 |
| 10 | 135881 | Strap - For C8 | 1 |
| 10 | 113674 | Strap - Not for C8 | 1 |
| 11 | 115513 | Support for pump and accumulator | 1 |
| 12 | 102947 | Pad | 3 |
| 13 | 12574211 | Nut | 5 |
| 14 | 10902121 | Screw | 4 |
| 15 | 10519421 | Washer | 3 |
| 16 | 12574211 | Nut | 4 |
| 17 | 11270160 | Gasket | 2 |
| 18 | 120098 | Check valve | 1 |
| 19 | 15896411 | Nut | 1 |
| 20 | 10615379 | Washer | 1 |
| 21 | 116571 | Pipe, filter to metering device Up to car no. 59619 | 1 |
| 21 | 128477 | Pipe, filter to metering device From car no. 59621 | 1 |
| 22 | 119305 | Pipe, pump to accumulator Not for C8 | 1 |
| 22 | 135779 | Pipe, pump to accumulator For C8 | 1 |
| 23 | 119281 | Pipe, filter to pump | 1 |
| 24 | 12179590 | Strap | 2 |
| 25 | 128479 | Return pipe - After exhaustion use no. 135088 | 1 |
| 26 | 126919 | Pipe | 1 |
| 27 | 12179490 | Strap | 2 |
| 28 | 117848 | Pipe, accumulator to filter - For C8 | 1 |
| 28 | 119278 | Pipe, accumulator to filter - Not for C8 | 1 |
| 29 | 115236 | Return pipe - For US - SA - C8 | 1 |
| 30 | 12179490 | Strap - For US - SA - C8 | 2 |
| 31 | 155738 | el filter - Not for US - SA - C8 | 1 |
| 31 | 117792 | Fuel filter - For US - SA - C8 | 1 |
| 32 | 109797 | Union - Not for US - SA - C8 | 1 |
| 32 | 109889 | Union - For US - SA - C8 | 1 |
| 33 | 10280060 | Gasket - For US - SA - C8 | 1 |
| 33 | 113910 | Gasket - Not for US - SA - C8 | 1 |
| 34 | 115140 | Bracket for filter - Not for US - SA - C8 | 1 |
| 34 | 117791 | Bracket for filter - For US - SA - C8 | 1 |
| 35 | 12574521 | Nut | 1 |
| 36 | 13550401 | Washer | 1 |
| 37 | 107889 | Shim for tanks | 14 |
| 38 | 116605 | R.H. tank - Not for US - SA -C8 | 1 |
| 38 | 114605 | R.H. tank - For US - SA - C8 | 1 |
| 39 | 121318 | L.H. tank - Not for US - SA - C8 | 1 |
| 39 | 119015 | L.H. tank - For US - SA - C8 | 1 |
| 40 | 132340 | Fuel filter - For C7 | 1 |
| 40 | 113865 | Fuel filter - For SA - GTB | 1 |
| 40 | 113866 | Fuel filter - For SA - GTS | 1 |
| 40 | 115680 | Fuel filter - For US - SA - C8 | 1 |
| 41 | 13605711 | SpacerPossibile fitting | 1 |
| 42 | 12574211 | Nut - for US - SA - C8 | 2 |
| 43 | 12643701 | Washer - For US - SA - C8 | 2 |
| 44 | 113401 | Fuel filler plug | 1 |
| 45 | 117618 | Sleeve - Not for US - SA - C8 | 1 |
| 45 | 114278 | Sleeve - For US - SA - C8 | 1 |
| 46 | 12174790 | Strap | 2 |
| 47 | 101465 | Gasket | 1 |
| 48 | 136595 | Filter - From car no. | 1 |
| 48 | 116870 | Filter - Until car no. | 1 |
| 49 | 117884 | Gasket | 1 |
| 50 | 115482 | Pipe, tanks connection | 1 |
| 51 | 114277 | Sleeve | 2 |
| 52 | 12173890 | Strap | 4 |
| 53 | 10300771 | Drain plug | 1 |
| 54 | 10278650 | Gasket | 1 |
| 55 | 106195 | Strap for pipe | 1 |
| 56 | 10902121 | Screw | 1 |
| 57 | 12574211 | Nut | 1 |
| 58 | 108644 | Level gauge control | 1 |
| 59 | 101462 | Gasket | 1 |
| 60 | 10794011 | Nut | 6 |
| 61 | 106848 | Washer | 6 |
| 62 | 108521 | Breather pipe | 1 |
| 63 | 10450490 | Strap | 1 |
| 64 | 10441790 | Strap | 2 |
| 65 | 12574211 | Nut | 3 |
| 66 | 114917 | Pipe - For US - SA - C8 | 1 |
| 66 | 109353 | Pipe - Not for US - SA- C8 | 2 |
| 67 | 114916 | Pipe - For US - SA - C8 | 1 |
| 68 | 109354 | Pipe | 1 |
| 69 | 12179590 | Strap | 6 |
| 70 | 109328 | Vertical band for tanks | 2 |
| 71 | 110937 | Trasverse band for tanks For US - SA - C7 - C8 | 2 |
| 72 | 103447 | Pin | 2 |
| 73 | 12311271 | Tie rod | 2 |
| 74 | 16104111 | Nut | 2 |
| 75 | 10796401 | Split pin | 2 |
| 76 | 109797 | Union - For pipe no. 116571 - For US - SA - C8 | 1 |
| 76 | 127756 | Union - For pipe no. 128477 - For US - SA - C8 | 1 |
| 76 | 125216 | Union - For pipe no. 128477 - Not US - SA - C8 | 1 |
| 77 | 113910 | Gasket - For union no. 109797 | 1 |
| 77 | 10298460 | Gasket - For union no. 127756 | 1 |
| 78 | 10183217 | Plug | 1 |
| 79 | 125215 | Union - For pipe no 128477 - 128479 | 2 |
| 80 | 109321 | Fuel filter - Not for US -SA -C8 | 1 |
| 81 | 101296 | Strap - Not for US - SA -C8 | 1 |
| 82 | 106666 | Pipe - Not for US -SA - C8 | 1 |
| 83 | 10794011 | Nut | 1 |
| 84 | 10615279 | Washer | 1 |
