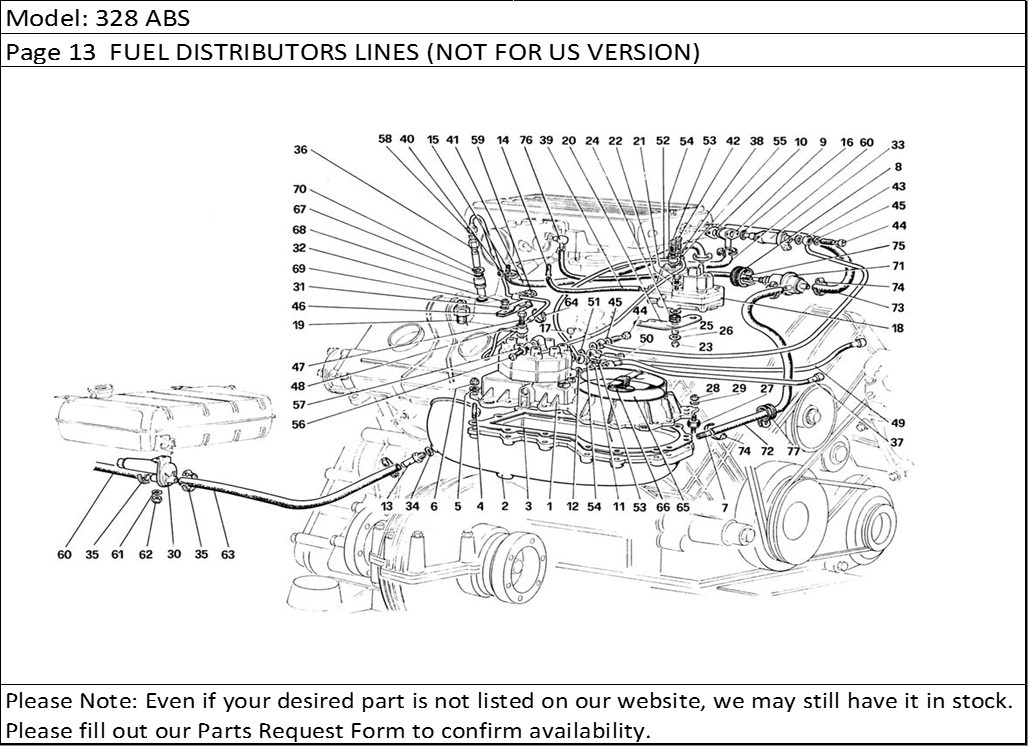

328 ABS Page 13 FUEL DISTRIBUTORS LINES (NOT FOR US VERSION)
Product Description
328 ABS Page 13 FUEL DISTRIBUTORS LINES (NOT FOR US VERSION)
Click on part number below to order. If unable to click on part number please fill out and submit Parts Request Form below to order.
| Location in Parts Diagram | Part # | Description | Quantity Used |
|---|---|---|---|
| 1 | 124754 | Metering device | 1 |
| 2 | 127159 | Support for metering device, complete | 1 |
| 2 | 127157 | Support for metering device - With unit no. 127159. | 1 |
| 2 | 129645 | Support for metering device, complete - For CH Version | 1 |
| 3 | 115011 | Gasket | 1 |
| 4 | 13541121 | Stud | 15 |
| 5 | 12601271 | Washer | 15 |
| 6 | 12574211 | Nut | 15 |
| 7 | 112030 | Union | 1 |
| 8 | 117437 | Clamp | 1 |
| 9 | 121056 | Union - For CH use no. 115004 | 1 |
| 10 | 115005 | Gasket | 1 |
| 11 | 115498 | Union with filter | 1 |
| 12 | 11270160 | Gasket | 1 |
| 13 | 116860 | Threaded union - For CH use no. 130860 | 1 |
| 14 | 113637 | Threaded union | 1 |
| 15 | 113652 | Threaded union | 1 |
| 16 | 103039 | Sealing ring | 1 |
| 17 | 115650 | Inviolability cap | 1 |
| 18 | 119825 | Warm up regulator | 1 |
| 19 | 113980 | Time termal switch - For CH use no. 118790 | 1 |
| 20 | 118291 | Support | 1 |
| 21 | 10903821 | Screw | 2 |
| 22 | 12604271 | Washer | 2 |
| 23 | 12574211 | Nut | 2 |
| 24 | 103549 | Grommet | 2 |
| 25 | 103550 | Spacer | 2 |
| 26 | 12643701 | Washer | 2 |
| 27 | 102947 | Vibration damping support | 3 |
| 28 | 12575411 | Nut | 3 |
| 29 | 12640601 | Washer | 1 |
| 29 | 12601271 | Washer | 2 |
| 30 | 120222 | Additional air valve - For CH use no. 121744 | 1 |
| 31 | 11197771 | Washer | 1 |
| 32 | 12575411 | Nut | 1 |
| 33 | 115739 | Auxiliary starting assembly | 1 |
| 34 | 10280060 | Gasket - For CH use no. 10259960 | 1 |
| 35 | 12179590 | Clamp - For CH use no. 12180290 | 4 |
| 36 | 113975 | Injector | 8 |
| 37 | 117885 | Pipe from fuel tank | 1 |
| 38 | 10260160 | Gasket | 2 |
| 39 | 115002 | Pipe | 1 |
| 40 | 12179190 | Clamp | 2 |
| 41 | 118293 | Pipe | 1 |
| 42 | 113670 | Pipe union | 1 |
| 43 | 115735 | Pipe | 12 |
| 44 | 113664 | Pipe union | 4 |
| 45 | 14330260 | Washer | 1 |
| 46 | 115417 | Bracket for clamp | 8 |
| 47 | 113670 | Pipe union | 16 |
| 48 | 10260160 | Gasket | 1 |
| 49 | 117787 | Return pipe | 1 |
| 50 | 111644 | Union | 2 |
| 51 | 113910 | Gasket | 1 |
| 52 | 118395 | Return pipe from regulator | 2 |
| 53 | 113664 | Union | 4 |
| 54 | 14330260 | Gasket | 1 |
| 55 | 115507 | Delivery pipe to regulator | 1 |
| 56 | 113664 | Union | 1 |
| 57 | 14330260 | Gasket | 1 |
| 58 | 118594 | Pipe from metering device to cylinder 5 | 1 |
| 58 | 118596 | Pipe from metering device to cylinder 7 | 1 |
| 58 | 118595 | Pipe from metering device to cylinder 6 | 1 |
| 58 | 118597 | Pipe from metering device to cylinder 8 | 1 |
| 58 | 118591 | Pipe from metering device to cylinder 2 | 1 |
| 58 | 118590 | Pipe from metering device to cylinder 1 | 1 |
| 58 | 118593 | Pipe from metering device to cylinder 4 | 1 |
| 58 | 118592 | Pipe from metering device to cylinder 3 | 1 |
| 59 | 115418 | Support clamp4 pipes | 1 |
| 59 | 113896 | Support clamp3 pipes | 1 |
| 59 | 117279 | Support clamp | 2 |
| 59 | 115595 | Support clamp4 pipes | 1 |
| 60 | 128204 | Pipe - For CH use no. 135117 | 1 |
| 61 | 12601271 | Washer | 2 |
| 62 | 12574211 | Nut | 2 |
| 63 | 124442 | Pipe - For CH use no. 135118 | 1 |
| 64 | 111193 | Clamp | 2 |
| 64 | 110381 | Clamp | 4 |
| 65 | 120812 | Air sensor plate | 1 |
| 66 | 120809 | Washer | 1 |
| 67 | 113570 | Sealing ring | 8 |
| 68 | 113309 | Bushing | 8 |
| 69 | 101031 | Sealing ring | 8 |
| 70 | 103326 | Seeger | 8 |
| 71 | 115741 | Valve for by - pass | 1 |
| 72 | 121823 | Hose from valve to support | 1 |
| 73 | 128309 | Pipe to valve from air delivery | 1 |
| 74 | 12179490 | Clamp | 4 |
| 75 | 124790 | Pipe | 1 |
| 76 | 127164 | Union | 1 |
| 77 | 123478 | Clamp | 1 |
