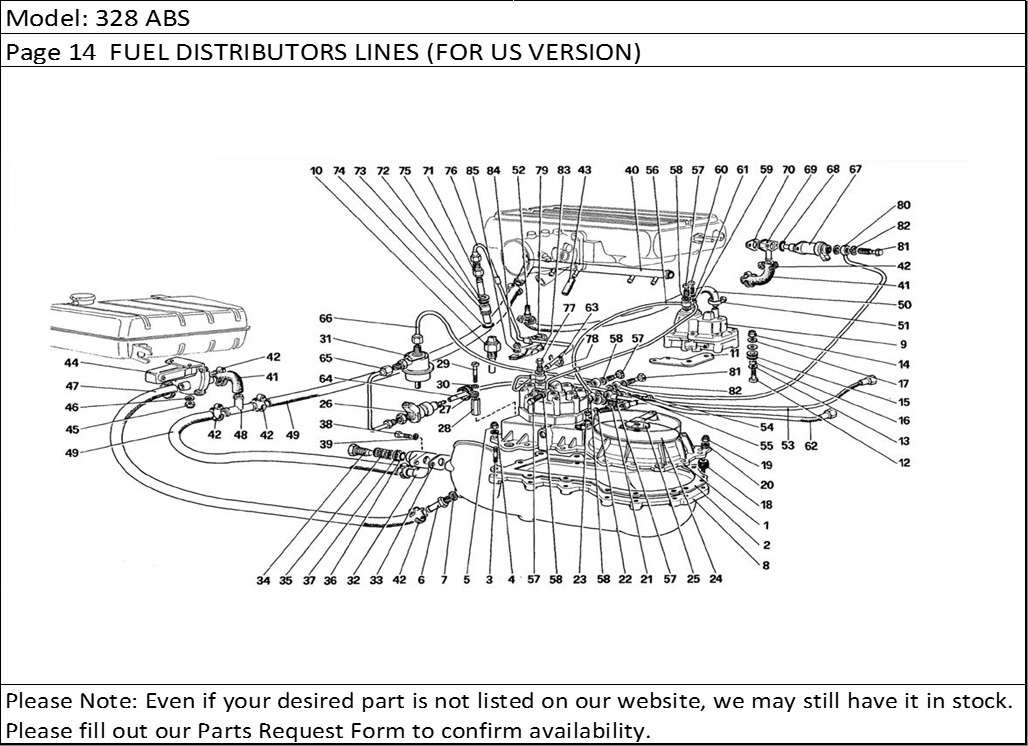

328 ABS Page 14 FUEL DISTRIBUTORS LINES (FOR US VERSION)
Product Description
328 ABS Page 14 FUEL DISTRIBUTORS LINES (FOR US VERSION)
Click on part number below to order. If unable to click on part number please fill out and submit Parts Request Form below to order.
| Location in Parts Diagram | Part # | Description | Quantity Used |
|---|---|---|---|
| 1 | 121745 | Metering device | 1 |
| 2 | 115011 | Gasket | 1 |
| 4 | 12601271 | Washer | 15 |
| 5 | 12574211 | Nut | 15 |
| 6 | 115751 | Threaded union | 1 |
| 7 | 10259960 | Gasket | 1 |
| 8 | 128027 | Support for metering device - With unit no. 128028 | 1 |
| 8 | 128028 | Support for metering device. complete | 1 |
| 9 | 121743 | Warm-up regulator | 1 |
| 10 | 121778 | Termo-time switch | 1 |
| 11 | 118291 | Support | 1 |
| 12 | 14305521 | Screw | 2 |
| 13 | 12604271 | Washer | 2 |
| 14 | 12574211 | Nut | 2 |
| 15 | 103549 | Rubber small block | 2 |
| 16 | 103550 | Spacer | 2 |
| 17 | 12643701 | Washer | 4 |
| 18 | 102947 | Vibration - damping support | 3 |
| 19 | 12575411 | Nut | 3 |
| 20 | 12640601 | Washer | 2 |
| 20 | 12601271 | Washer | 2 |
| 21 | 115498 | Union with filter | 1 |
| 22 | 11270160 | Gasket | 1 |
| 23 | 121571 | Inviolability plug | 1 |
| 24 | 120810 | Air sensor plate | 1 |
| 25 | 120809 | Washer | 1 |
| 26 | 121513 | Frequency valve | 1 |
| 27 | 121834 | Clamp | 1 |
| 28 | 121836 | Spacer | 1 |
| 29 | 10979421 | Screw | 1 |
| 30 | 106850 | Washer | 1 |
| 31 | 121514 | Damper for frequency valve | 1 |
| 32 | 128158 | Housing for air by-pass adj. | 1 |
| 33 | 128159 | Gasket | 1 |
| 34 | 119308 | Air adjusting screw | 1 |
| 35 | 113571 | Spring | 1 |
| 36 | 114919 | Sealing ring | 1 |
| 37 | 115204 | Plate | 1 |
| 38 | 14305221 | Screw | 2 |
| 39 | 12604271 | Washer | 4 |
| 40 | 128242 | Air delivery pipe | 1 |
| 41 | 123860 | Sleeve | 2 |
| 42 | 12180290 | Clamp | 10 |
| 43 | 121831 | Pipe | 8 |
| 44 | 121744 | Additional air valve | 1 |
| 45 | 12574211 | Nut | 2 |
| 46 | 12601271 | Pipe | 1 |
| 47 | 135118 | Pipe | 1 |
| 48 | 109887 | 3 way union | 1 |
| 49 | 135119 | Pipe | 2 |
| 50 | 118293 | Pipe | 1 |
| 51 | 12179190 | Clamp | 2 |
| 52 | 113652 | Threaded union | 1 |
| 53 | 117787 | Return pipe | 1 |
| 54 | 121752 | Union | 1 |
| 55 | 113910 | Gasket | 2 |
| 56 | 118395 | Return pipe from regulator | 1 |
| 57 | 113664 | Pipe union | 4 |
| 58 | 14330260 | Gasket | 8 |
| 59 | 115507 | Delivery pipe to regulator | 1 |
| 60 | 113670 | Union | 1 |
| 61 | 10260160 | Gasket | 2 |
| 62 | 117885 | Pipe from fuel tank | 1 |
| 63 | 110381 | Clamp | 4 |
| 64 | 121753 | Pipe from frequency valve to metering unit | 1 |
| 65 | 121755 | Pipe from damper to frequency valve | 1 |
| 66 | 121757 | Pipe from metering unit to damper | 1 |
| 67 | 115474 | Auxiliary starting assembly | 1 |
| 68 | 103039 | Sealing ring | 1 |
| 69 | 115004 | Union | 1 |
| 70 | 115005 | Gasket | 1 |
| 71 | 113975 | Injector | 8 |
| 72 | 113570 | Sealing ring | 8 |
| 73 | 113309 | Bushing | 8 |
| 74 | 101031 | Sealing ring | 8 |
| 75 | 103326 | Seeger | 8 |
| 76 | 118592 | Pipe from metering device to cylinder 3 | 1 |
| 76 | 118591 | Pipe from metering device to cylinder 2 | 1 |
| 76 | 118593 | Pipe from metering device to cylinder 4 | 1 |
| 76 | 118594 | Pipe from metering device to cylinder 5 | 1 |
| 76 | 118595 | Pipe from metering device to cylinder 6 | 1 |
| 76 | 118596 | Pipe from metering device to cylinder 7 | 1 |
| 76 | 118597 | Pipe from metering device to cylinder 8 | 1 |
| 76 | 118590 | Pipe from metering device to cylinder 1 | 1 |
| 77 | 113670 | Pipe union | 8 |
| 78 | 10260160 | Gasket | 16 |
| 79 | 115595 | Support clamp4 pipes | 1 |
| 79 | 113896 | Support clamp3 pipes | 1 |
| 79 | 115418 | Support clamp4 pipes | 1 |
| 79 | 117279 | Support clamp | 2 |
| 80 | 115735 | Pipe metering device to auxiliary starting assembly | 1 |
| 81 | 113664 | Pipe union | 2 |
| 82 | 14330260 | Gasket | 4 |
| 83 | 115417 | Bracker for clamp | 1 |
| 84 | 12575411 | Nut. | 1 |
| 85 | 11197771 | Washer | 1 |
