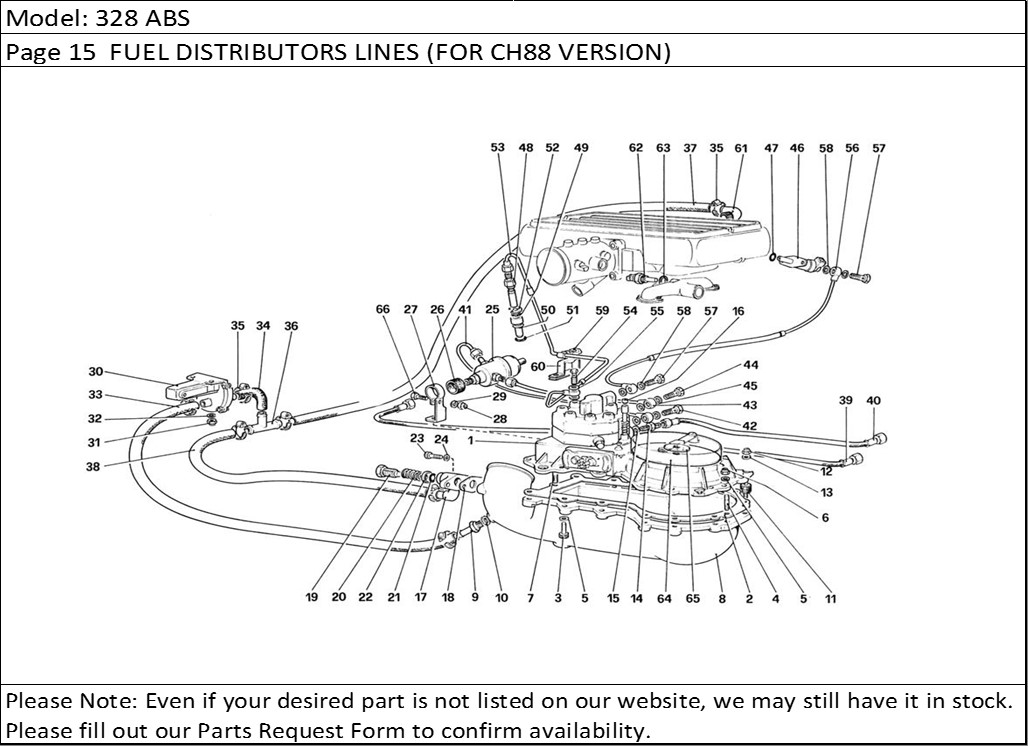

328 ABS Page 15 FUEL DISTRIBUTORS LINES (FOR CH88 VERSION)
Product Description
328 ABS Page 15 FUEL DISTRIBUTORS LINES (FOR CH88 VERSION)
Click on part number below to order. If unable to click on part number please fill out and submit Parts Request Form below to order.
| Location in Parts Diagram | Part # | Description | Quantity Used |
|---|---|---|---|
| 1 | 127237 | Metering device | 1 |
| 2 | 135096 | Gasket | 1 |
| 4 | 13541121 | Stud | 11 |
| 5 | 12601279 | Washer | 15 |
| 6 | 12574211 | Nut | 12 |
| 7 | 13541221 | Stud | 1 |
| 8 | 134886 | Support for metering device - With unit 134993 | 1 |
| 8 | 134993 | Support for metering device, complete | 1 |
| 9 | 115751 | Union | 1 |
| 10 | 10259960 | Gasket | 1 |
| 11 | 102947 | Vibration damping support | 3 |
| 12 | 12575411 | Selflocking nut | 4 |
| 13 | 12601279 | Washer | 4 |
| 14 | 115498 | Union with filter | 1 |
| 15 | 11270160 | Gasket | 1 |
| 16 | 137982 | Inviolability plug | 1 |
| 17 | 128158 | Housing for air by-pass adjusting | 1 |
| 18 | 135095 | Gasket | 1 |
| 19 | 119308 | Air adjusting screw | 1 |
| 20 | 113571 | Spring | 1 |
| 21 | 114919 | Sealing ring | 1 |
| 22 | 115204 | Plate | 1 |
| 23 | 14305221 | Screw | 2 |
| 24 | 12604271 | Washer | 12 |
| 25 | 128972 | Pressure regulator | 1 |
| 26 | 125825 | Anti-vibration bush | 1 |
| 27 | 125770 | Support | 1 |
| 28 | 12574211 | Selflocking nut | 1 |
| 29 | 12604271 | Washer | 1 |
| 30 | 121744 | Additional air valve | 1 |
| 31 | 12574211 | Selflocking nut | 2 |
| 32 | 12601271 | Washer | 2 |
| 33 | 135118 | Pipe from valve to support | 1 |
| 34 | 123860 | Sleeve | 8 |
| 35 | 12180290 | Clamp | 1 |
| 36 | 109887 | 3 way union | 1 |
| 37 | 136287 | Pipe from 3 way to body air delivery | 1 |
| 38 | 135119 | Pipe from 3 way to housing - for air by-pass adjusting | 1 |
| 39 | 123792 | Return pipe to regulator | 1 |
| 40 | 117885 | Delivery pipe to metering device | 1 |
| 41 | 135069 | Pipe from regulator to metering device | 1 |
| 42 | 113670 | Union | 1 |
| 43 | 135067 | Pipe from metering device to regulator | 1 |
| 44 | 111644 | Union | 1 |
| 45 | 10296160 | Gasket | 4 |
| 46 | 128968 | Auxiliary starting assembly | 1 |
| 47 | 103039 | Sealing ring | 1 |
| 48 | 129036 | Injector | 8 |
| 49 | 113570 | Sealing ring | 8 |
| 50 | 113309 | Bush | 8 |
| 51 | 101031 | Sealing ring | 8 |
| 52 | 103326 | Seeger ring | 8 |
| 53 | 135146 | Pipe from metering device to cylinder 1 | 1 |
| 53 | 135148 | Pipe from metering device to cylinder 3 | 1 |
| 53 | 135149 | Pipe from metering device to cylinder 4 | 1 |
| 53 | 135153 | Pipe from metering device to cylinder 8 | 1 |
| 53 | 135150 | Pipe from metering device to cylinder 5 | 1 |
| 53 | 135152 | Pipe from metering device to cylinder 7 | 1 |
| 53 | 135147 | Pipe from metering device to cylinder 2 | 1 |
| 53 | 135151 | Pipe from metering device to cylinder 6 | 1 |
| 54 | 113670 | Pipe union | 8 |
| 55 | 10260160 | Gasket | 16 |
| 56 | 134874 | Pipe metering device to auxiliary starting assembly | 1 |
| 57 | 113664 | Pipe union | 2 |
| 58 | 14330260 | Gasket | 4 |
| 59 | 113896 | Support clamp | 2 |
| 60 | 135079 | Bracket | 2 |
| 61 | 134493 | Union | 1 |
| 62 | 125769 | Water temperature sensor | 1 |
| 63 | 10298460 | Gasket | 1 |
| 64 | 120810 | Air sensor plate | 1 |
| 65 | 120809 | Washer | 1 |
| 66 | 10902421 | Screw | 1 |
