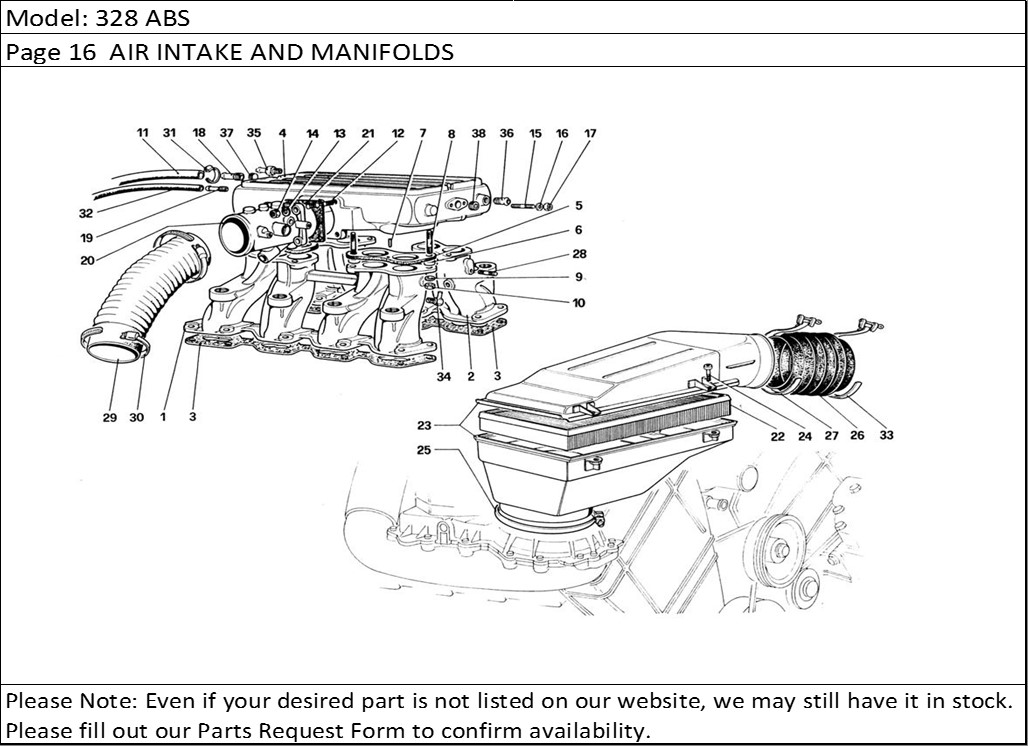

328 ABS Page 16 AIR INTAKE AND MANIFOLDS
Product Description
328 ABS Page 16 AIR INTAKE AND MANIFOLDS
Click on part number below to order. If unable to click on part number please fill out and submit Parts Request Form below to order.
| Location in Parts Diagram | Part # | Description | Quantity Used |
|---|---|---|---|
| 1 | 135032 | Intake manifold, right complete - For C8 | 1 |
| 1 | 128034 | Intake manifold, right complete - For US | 1 |
| 2 | 135033 | Intake manifold, left complete - For CS | 1 |
| 2 | 128201 | Intake manifold, left complete - Not for US and C8 | 1 |
| 2 | 128035 | Intake manifold, left complete - For US | 1 |
| 3 | 117262 | Gasket - Not for C8 | 2 |
| 3 | 135093 | Gasket - For C8 | 2 |
| 4 | 135133 | (B) Body, air delivery to manifolds complete - For C8 | 1 |
| 4 | 136434 | (A) Body, air delivery to manifolds complete - Not for US | 1 |
| 4 | 128023 | Body for air delivery to manifolds - With assembly no. 136434 | 1 |
| 4 | 128203 | Body for air delivery to manifolds - With assembly no. 127544 | 1 |
| 4 | 128023 | Body for air delivery to manifolds - With assembly no. 127097 | 1 |
| 4 | 127097 | (B) Body, air delivery to manifolds complete - Not for US | 1 |
| 4 | 127544 | (B) Body, air delivery to manifolds - complete - For US | 1 |
| 4 | 134873 | Body for air delivery to manifolds - With assembly no. 136435 | 1 |
| 4 | 136435 | (A) Body, air delivery to manifolds complete - For C8 | 1 |
| 4 | 134873 | Body for air delivery to manifolds - With assembly no. 135133 | 1 |
| 5 | 114983 | Gasket | 4 |
| 6 | 114984 | Spacer | 8 |
| 7 | 10331111 | Centring dowel | 4 |
| 8 | 13543521 | Stud | 8 |
| 9 | 11198071 | Washer | 8 |
| 10 | 16100811 | Nut | 8 |
| 11 | 107982 | (B) Rubber hose for servo-brake depression | 1 |
| 12 | 13541121 | Stud | 4 |
| 13 | 12601271 | Washer | 4 |
| 14 | 12574211 | Nut | 4 |
| 15 | 13540821 | Stud - For C8 | 2 |
| 15 | 13541621 | Stud - Not for C8 | 2 |
| 15 | 14305721 | Screw - Starting from car no. 76347 | 2 |
| 16 | 12601271 | Washer | 2 |
| 17 | 12574211 | Nut | 2 |
| 18 | 103870 | (B) Nipple for intake servo - brake depression | 1 |
| 19 | 113652 | Nipple for depression on the central ignition station | 1 |
| 20 | 134985 | Complete throttle body For CS | 1 |
| 20 | 128957 | Complete throttle body For US | 1 |
| 20 | 127899 | Throttle body - Not spare With assembly no. 128957 | 1 |
| 20 | 127163 | Throttle body - Not spare With assembly no. 128956 | 1 |
| 20 | 134980 | Throttle body - Not spare With assembly no. 134985 | 1 |
| 20 | 128956 | Complete throttle body Not for US and C8 | 1 |
| 21 | 135098 | Gasket - For C8 | 1 |
| 21 | 115038 | Gasket - Not for C8 | 1 |
| 22 | 118006 | Cartridge - Not for C7 and C8 | 1 |
| 22 | 132626 | Cartridge For C7 and C8 | 1 |
| 23 | 132874 | Air inlet - For C7 and C8 - Until to car no. 78068 | 1 |
| 23 | 121736 | Air inlet - For US - Until to car no. 78068 | 1 |
| 23 | 137781 | Air inlet - Not for US - C7 and C8 - Starting from car no. 78069 | 1 |
| 23 | 118313 | Air inlet - Not for US - C7and C8 Until to car no. 78068 | 1 |
| 23 | 137780 | Air inlet - For US - Starting from car no. 78069 | 1 |
| 23 | 137576 | Air inlet - For C7 and C8 - Starting from car no. 78069 | 1 |
| 24 | 14305426 | Screw | 4 |
| 25 | 138982 | Clamp | 1 |
| 26 | 114019 | Sleeve - For C7 and C8 use no. 133152 - Until to car no. 78068 | 1 |
| 26 | 136008 | Sleeve - Starting from car no. 78069 | 1 |
| 27 | 10300190 | Clamp - Not for C7 and C8 Until to car no. 78068 | 1 |
| 28 | 11500021 | Sud | 1 |
| 29 | 118310 | Pipe from support throttle | 1 |
| 30 | 12174990 | Clamp | 2 |
| 31 | 12179590 | Clamp | 1 |
| 32 | 128305 | Vacuum hose digiplex | 1 |
| 33 | 10301890 | Clamp - For C7 and C9 Q = 2 Until to car no. 78068 | 1 |
| 34 | 128016 | Union - For US | 8 |
| 35 | 119466 | Nipple for blow-by and A.C. Not for US | 1 |
| 35 | 119465 | Nipple for A.C. Not for US | 1 |
| 36 | 128208 | Union - Not for US and SA | 1 |
| 37 | 10269550 | (A) Plug | 1 |
| 38 | 10268450 | (A) Plug - For C8 | 1 |
