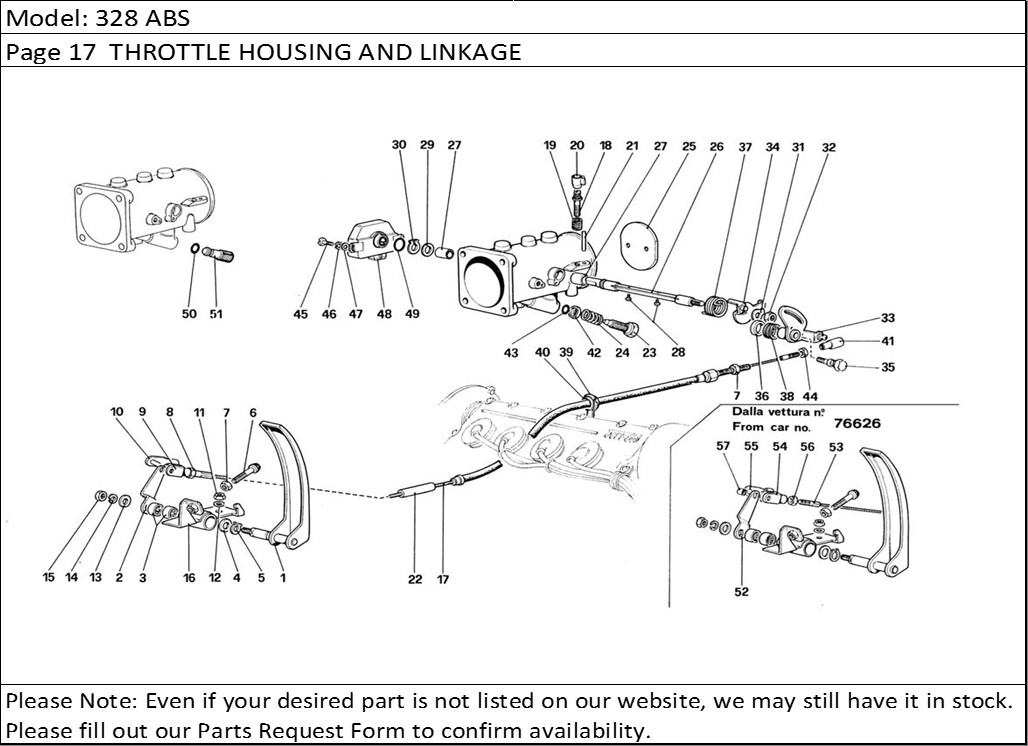

328 ABS Page 17 THROTTLE HOUSING AND LINKAGE
Product Description
328 ABS Page 17 THROTTLE HOUSING AND LINKAGE
Click on part number below to order. If unable to click on part number please fill out and submit Parts Request Form below to order.
| Location in Parts Diagram | Part # | Description | Quantity Used |
|---|---|---|---|
| 1 | 115393 | Accelerator pedal | 1 |
| 2 | 115399 | Lever | 1 |
| 4 | 108576 | Shim | 1 |
| 5 | 11066076 | Seeger ring | 1 |
| 6 | 105232 | Adjusting screw | 1 |
| 7 | 16102311 | Nut | 2 |
| 8 | 10725911 | Locknut | 1 |
| 9 | 100655 | Fork | 1 |
| 10 | 100656 | Pin with strap | 1 |
| 11 | 16100811 | Nut | 2 |
| 12 | 106852 | Washer | 2 |
| 13 | 10519601 | Spacer | 1 |
| 14 | 106852 | Washer | 1 |
| 15 | 16100811 | Nut | 1 |
| 16 | 115396 | Support for accelerator pedal | 1 |
| 17 | 120260 | Control cable for accelerator | 1 |
| 18 | 114366 | Adjust screw for throttle control lever | 1 |
| 19 | 107824 | Spring | 1 |
| 20 | 111182 | Inviolability cap | 1 |
| 21 | 114367 | Pin for cap | 1 |
| 22 | 118810 | Cable protection For RHD use no. 120499 | 1 |
| 23 | 119308 | Air adjusting screw - Not for US and C8 | 1 |
| 24 | 113571 | Spring - Not for US and C8 | 1 |
| 25 | 114851 | Throttle - Not spare | 1 |
| 26 | 121802 | Throttle spindle - Not spare | 1 |
| 27 | 107443 | Bush - Not spare | 2 |
| 28 | 115361 | Screw - Not spare | 2 |
| 29 | 121835 | Washer | 1 |
| 30 | 104182 | Seeger ring | 1 |
| 31 | 113566 | Lock washer | 1 |
| 32 | 16102311 | Nut | 1 |
| 33 | 118296 | Throttle control lever - After exhaustion use no. 128942 | 1 |
| 34 | 115590 | Throttle control lever | 1 |
| 35 | 114863 | Lever pin - After exhaustion use no. 10903021 | 1 |
| 36 | 114986 | Spacer washer - Not spare | 1 |
| 37 | 115573 | Spring | 1 |
| 38 | 118294 | Spring | 1 |
| 39 | 118809 | Support plate for cable | 1 |
| 40 | 10396580 | Fair - lead | 1 |
| 41 | 105617 | Ball ring | 1 |
| 42 | 115204 | Plate - Not for US and C8 | 1 |
| 43 | 114919 | Grommet - Not for US and C8 | 1 |
| 44 | 15896411 | Nut | 1 |
| 45 | 10444621 | Screw | 2 |
| 46 | 106848 | Washer | 2 |
| 47 | 10519201 | Washer | 2 |
| 48 | 121517 | Microswitch | 1 |
| 49 | 116736 | Sealing ring | 1 |
| 50 | 105661 | Sealing ring - For US and C8 | 1 |
| 51 | 127916 | Screw - For US and C8 | 1 |
| 52 | 132206 | Lever | 1 |
| 53 | 133061 | Control cable for accelerator | 1 |
| 54 | 132290 | Fork | 1 |
| 55 | 132291 | Pin with strap | 1 |
| 56 | 10725011 | Nut | 1 |
| 57 | 132212 | Bush | 1 |
