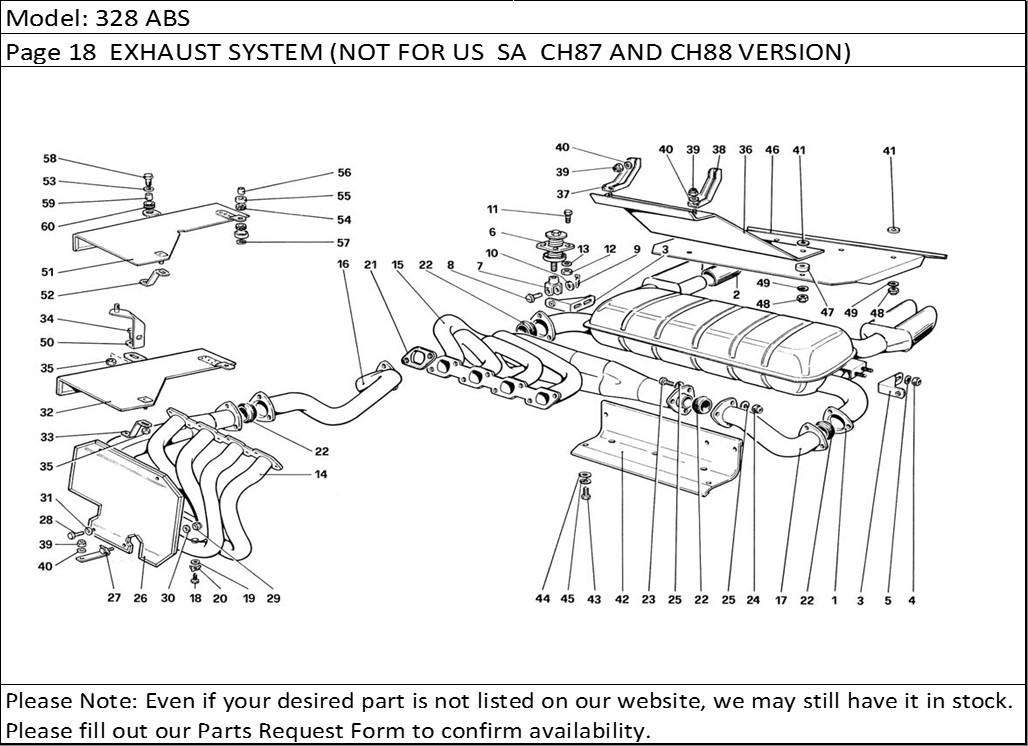

328 ABS Page 18 EXHAUST SYSTEM (NOT FOR US SA CH87 AND CH88 VERSION)
Product Description
328 ABS Page 18 EXHAUST SYSTEM (NOT FOR US SA CH87 AND CH88 VERSION)
Click on part number below to order. If unable to click on part number please fill out and submit Parts Request Form below to order.
| Location in Parts Diagram | Part # | Description | Quantity Used |
|---|---|---|---|
| 1 | 129407 | Exhaust silencer - For C6 | 1 |
| 1 | 127942 | Exhaust silencer Not for C6 and D | 1 |
| 2 | 127843 | Terminal - For D use no. 118774 | 4 |
| 3 | 108290 | Bracket | 2 |
| 4 | 114748 | Selflocking nut | 4 |
| 5 | 10519601 | Washer | 4 |
| 6 | 106052 | Buffer for supporting silencer | 2 |
| 7 | 108257 | Fork on buffer | 2 |
| 8 | 10033411 | Pin | 2 |
| 9 | 10796401 | Split | 2 |
| 10 | 103167 | Washer | 2 |
| 11 | 10977621 | Screw | 8 |
| 12 | 15896411 | Nut | 8 |
| 13 | 106849 | Washer | 8 |
| 14 | 118155 | Front exhaust manifold - For C6 use no. 129409 | 1 |
| 15 | 118156 | Rear exhaust manifold - For C6 use no. 129408 | 1 |
| 16 | 118157 | Intermediate pipe from front manifold to muffler - For C6 use no. 129410 | 1 |
| 17 | 118158 | Intermediate pipe from rear manifold to muffler - For C6 use no. 129411 | 1 |
| 18 | 110860 | Plug | 8 |
| 19 | 10298460 | Washer | 8 |
| 20 | 14198901 | Plate | 8 |
| 21 | 111532 | Gasket | 3 |
| 22 | 118338 | Gasket | 4 |
| 23 | 119632 | Screw | 12 |
| 24 | 114748 | Selflocking nut | 12 |
| 25 | 10519601 | Washer | 24 |
| 26 | 118632 | Protection plate | 1 |
| 27 | 118786 | Bracket | 1 |
| 28 | 10902121 | Screw | 1 |
| 29 | 15896211 | Nut | 3 |
| 30 | 12643701 | Washer | 4 |
| 31 | 106850 | Washer | 4 |
| 32 | 118612 | Protection plateUp to car no. 64823 | 1 |
| 33 | 118619 | BracketUp to car no. 64823 | 1 |
| 34 | 10902121 | ScrewUp to car no. 64823 | 1 |
| 35 | 116416 | NutUp to car no. 64823 | 2 |
| 36 | 118495 | Protection plate | 1 |
| 37 | 118602 | Right bracket | 1 |
| 38 | 118603 | Left bracket | 1 |
| 39 | 116416 | Nut | 6 |
| 40 | 12643701 | Washer | 6 |
| 41 | 105924 | Spacer | 6 |
| 42 | 128572 | Lower conveyor for air to manifold | 1 |
| 43 | 10902021 | Screw | 4 |
| 44 | 106744 | Washer | 4 |
| 45 | 106850 | Washer | 4 |
| 46 | 127989 | Protection plate | 1 |
| 47 | 128284 | Spacer | 2 |
| 48 | 116416 | Nut | 4 |
| 49 | 106744 | Washer | 4 |
| 50 | 129586 | Bracket - Starting from car no.77366 use no. 136953From to car no. 64825 | 1 |
| 51 | 128950 | Protection plate Starting from car no. 77366 use no. 136954From to car no. 64825 | 1 |
| 52 | 128952 | Washer - After exhaustion use no. 137188From to car no. 64825 | 1 |
| 53 | 12643701 | WasherFrom to car no. 64825 | 4 |
| 54 | 107978 | PadFrom to car no. 64825 | 4 |
| 55 | 107979 | CupFrom to car no. 64825 | 4 |
| 56 | 107980 | BushFrom to car no. 64825 | 2 |
| 57 | 12646701 | WasherFrom to car no. 64825 | 1 |
| 58 | 10902621 | BoltFrom to car no. 64825 | 1 |
| 59 | 103550 | BushFrom to car no. 64825 | 1 |
| 60 | 103549 | Fair - LeadFrom to car no. 64825 | 1 |
