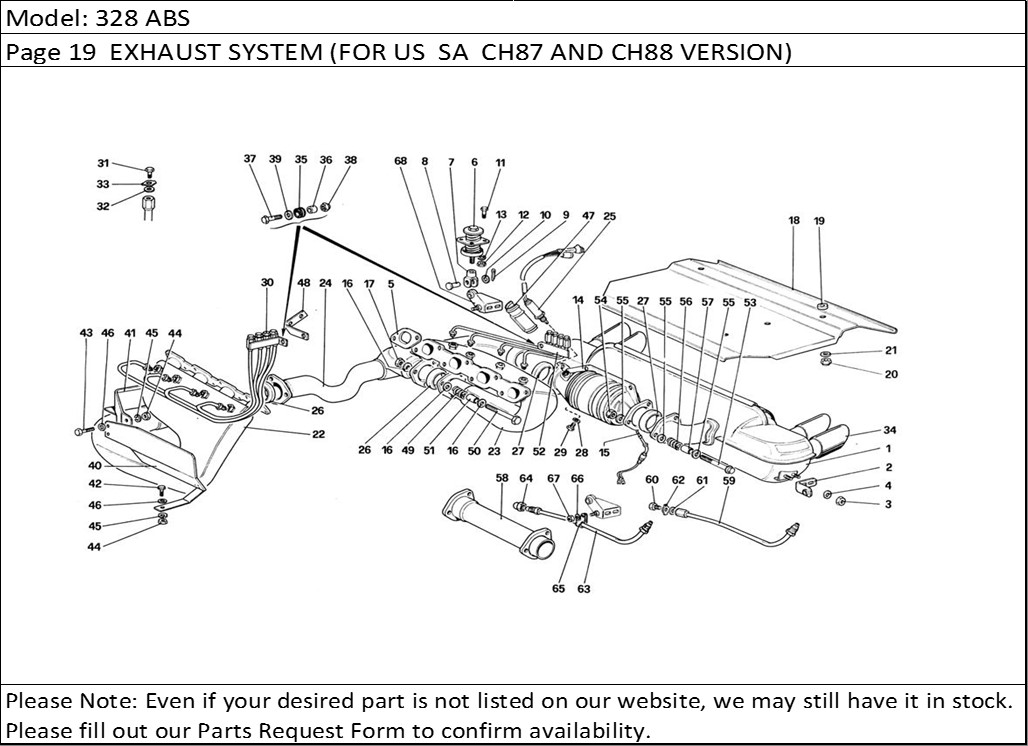

328 ABS Page 19 EXHAUST SYSTEM (FOR US SA CH87 AND CH88 VERSION)
Product Description
328 ABS Page 19 EXHAUST SYSTEM (FOR US SA CH87 AND CH88 VERSION)
Click on part number below to order. If unable to click on part number please fill out and submit Parts Request Form below to order.
| Location in Parts Diagram | Part # | Description | Quantity Used |
|---|---|---|---|
| 1 | 131194 | Exhaust silencer - For AUS and SA | 1 |
| 1 | 131954 | After exhaustion use no. 131954 - Exhaust silencer - For C7 and C8 | 1 |
| 2 | 108290 | Bracket - Unit car no. 75608 | 2 |
| 3 | 114748 | Nut | 4 |
| 4 | 10519601 | Washer | 4 |
| 5 | 111532 | Gasket | 8 |
| 6 | 106052 | Buffer for supporting silencer | 2 |
| 7 | 108257 | Fork on buffer | 2 |
| 8 | 10033411 | Pin | 2 |
| 9 | 10796401 | Split pin | 2 |
| 10 | 103167 | Washer | 2 |
| 11 | 10977621 | Screw fixing buffer to chissis | 8 |
| 12 | 15896411 | Nut | 8 |
| 13 | 106849 | Washer | 8 |
| 14 | 121385 | Catalytic converter - Not for SA | 1 |
| 15 | 62347100 | Thermocouple - For C7 and C8 - Starting from car no. 76529 - Use for US | 1 |
| 15 | 61402400 | Thermocouple - For US | 1 |
| 16 | 112761 | Washer | 18 |
| 17 | 114748 | Selflocking nut | 5 |
| 18 | 128711 | Proteciton plate | 1 |
| 19 | 105924 | Spacer | 6 |
| 20 | 116416 | Nut | 6 |
| 21 | 106744 | Washer | 6 |
| 22 | 118821 | Front exhaust manifold | 1 |
| 23 | 129003 | Rear exhaust manifold | 1 |
| 24 | 128188 | Extension pipe from manifold | 1 |
| 25 | 10300811 | Plug - Only for C7 | 1 |
| 25 | 121515 | Oxygen sensor - Not for C7 and SA | 1 |
| 26 | 103377 | Gasket | 2 |
| 27 | 121426 | Gasket | 2 |
| 28 | 10298460 | Gasket - Up to car no. 75608 | 1 |
| 29 | 110860 | Plug - Up to car no. 75608 | 1 |
| 30 | 118886 | Analyzing pipes, front | 1 |
| 31 | 103748 | Plug | 8 |
| 32 | 103749 | Gasket | 8 |
| 33 | 103587 | Plate | 8 |
| 34 | 132577 | Terminal - For C7 - C8 - SA and AUS | 4 |
| 34 | 114743 | Terminal - Not C7 | 4 |
| 35 | 103549 | Anti - vibration rubber | 2 |
| 36 | 103550 | Bush for rubber | 2 |
| 37 | 10902621 | Screw for pipes | 2 |
| 38 | 12574211 | Selflocking nut | 2 |
| 39 | 106744 | Washer | 2 |
| 40 | 115557 | Protection plate | 1 |
| 41 | 115552 | Protection plate | 1 |
| 42 | 10902321 | Screw | 2 |
| 43 | 10902121 | Screw | 2 |
| 44 | 15896211 | Nut | 4 |
| 45 | 106850 | Washer | 4 |
| 46 | 12643701 | Washer | 6 |
| 47 | 121833 | Protection for oxygen sensor Not for C7 and SA | 1 |
| 48 | 118999 | Bracket | 1 |
| 48 | 132577 | Bracket - Only for SA | 1 |
| 49 | 111743 | Spring, fixing flanges | 6 |
| 50 | 115675 | Screw | 6 |
| 51 | 114749 | Spacer for spring | 6 |
| 52 | 121780 | Analyzing pipes, rear | 1 |
| 53 | 121676 | Screw | 6 |
| 54 | 121677 | Nut | 6 |
| 55 | 121678 | Washer | 18 |
| 56 | 121674 | Spring | 6 |
| 57 | 121675 | Spacer | 6 |
| 58 | 126534 | Pipe to extension pipe from silencer - Only for SA | 1 |
| 59 | 136253 | Analyzing pipe - From car no. 75609 and until exhaustion - Not for C8 | 1 |
| 60 | 103748 | PlugFor pipe no. 136253 | 1 |
| 61 | 103749 | GasketFor pipe no. 136253 | 1 |
| 62 | 103587 | PlateFor pipe no. 136253 | 1 |
| 63 | 136747 | Analizing pipe - After exhaustion no. 136253 | 1 |
| 64 | 16109642 | Plug - For pipe no. 136747 | 1 |
| 65 | 10418101 | Clamp | 1 |
| 66 | 12644601 | Washer | 1 |
| 67 | 116416 | Nut | 1 |
| 68 | 136251 | Right bracket - From car no. 75609 | 1 |
| 68 | 108290 | Left bracket - From car no. 75609 | 1 |
