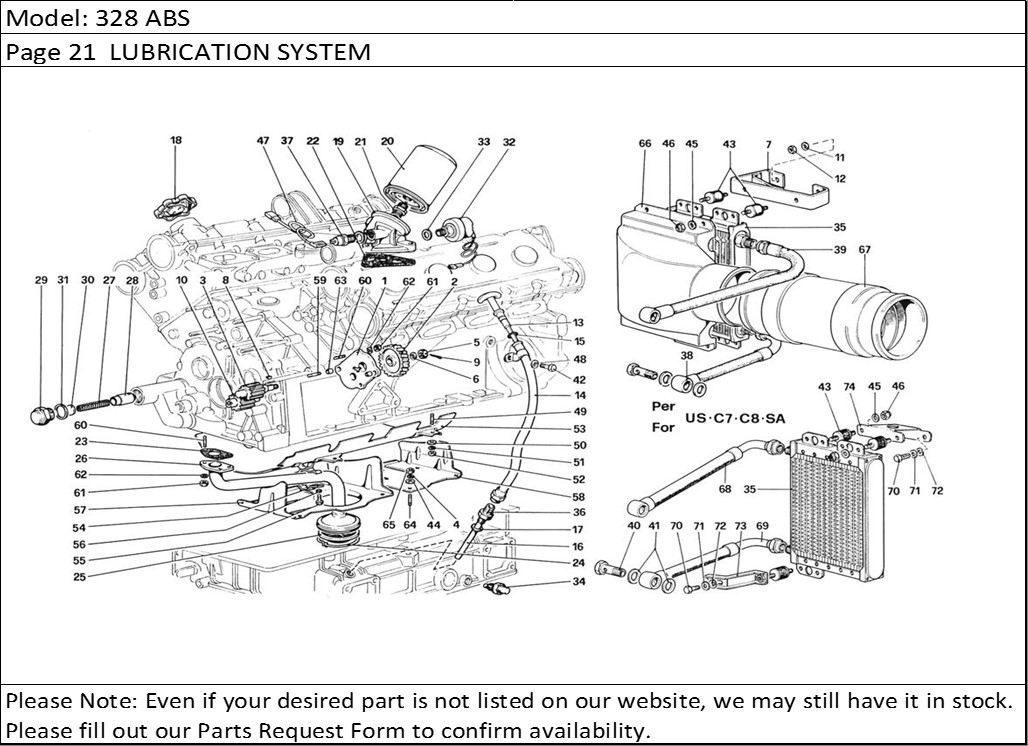

328 ABS Page 21 LUBRICATION SYSTEM
Product Description
328 ABS Page 21 LUBRICATION SYSTEM
Click on part number below to order. If unable to click on part number please fill out and submit Parts Request Form below to order.
| Location in Parts Diagram | Part # | Description | Quantity Used |
|---|---|---|---|
| 1 | 109300 | Cover for oil pump | 1 |
| 2 | 117659 | Control gear | 1 |
| 4 | 106849 | Spring washer | 8 |
| 5 | 102900 | Nut | 1 |
| 6 | 11198570 | Washer | 1 |
| 7 | 114735 | Radiator support | 1 |
| 8 | 10205620 | Tongue | 1 |
| 9 | 10734301 | Split pin | 1 |
| 10 | 109308 | Driven gear | 1 |
| 11 | 14496501 | Washer | 2 |
| 12 | 16104111 | Nut | 2 |
| 13 | 105657 | Oil level rod | 1 |
| 14 | 132483 | Hose for level rod - For C7 and C8 | 1 |
| 14 | 120001 | Hose for level rod - Not for C7 and C8 | 1 |
| 15 | 100317 | Sealing ring | 1 |
| 16 | 107868 | Pipe | 1 |
| 17 | 10259960 | Gasket | 1 |
| 18 | 103936 | Cap | 1 |
| 19 | 123863 | Filter base | 1 |
| 20 | 111782 | Oil cartridge | 1 |
| 21 | 121246 | Union | 1 |
| 22 | 123869 | Gasket - Not for C8 | 1 |
| 22 | 135120 | Gasket - For C8 | 1 |
| 23 | 134961 | Gasket - For C8 | 1 |
| 23 | 103942 | Gasket - Not for C8 | 1 |
| 24 | 103944 | Sealing ring | 1 |
| 25 | 100332 | Filter | 1 |
| 26 | 129551 | Suction pipe - From engine no. 1392 Eur. 686 USA | 1 |
| 26 | 105998 | Suction pipe Up to engime no. 1391 Eur. 685 USA | 1 |
| 27 | 133550 | Spring for pressure adjusting valve | 1 |
| 28 | 125885 | Piston | 1 |
| 29 | 106237 | Plug | 1 |
| 30 | 135679 | Spacer | 1 |
| 31 | 10264660 | Gasket | 1 |
| 32 | 122592 | Transmitter | 1 |
| 33 | 10259960 | Gasket | 1 |
| 34 | 107576 | Thermistor | 1 |
| 35 | 126917 | Oil radiator - Until car no. 75271 | 1 |
| 35 | 135774 | Oil radiator - From car no. 75272 | 1 |
| 36 | 102668 | Union | 1 |
| 37 | 110664 | Switch for oil pressure warning light | 1 |
| 38 | 126912 | Hose from cooler to crankcase | 1 |
| 39 | 126913 | Hose from cooler to filler support | 1 |
| 40 | 123881 | Union | 2 |
| 41 | 10246160 | Gasket | 4 |
| 42 | 10902011 | Screw | 1 |
| 43 | 102947 | Vibration damping support | 3 |
| 44 | 12638101 | Washer | 8 |
| 45 | 14496401 | Washer | 3 |
| 46 | 12575411 | Nut | 3 |
| 47 | 112388 | Switch cable | 1 |
| 48 | 12601271 | Washer | 1 |
| 49 | 13516521 | Stud on crankcase | 4 |
| 50 | 10519601 | Washer | 4 |
| 51 | 10516671 | Split washer | 4 |
| 52 | 16102311 | Nut | 4 |
| 53 | 103929 | Upper protection plate | 1 |
| 54 | 103933 | Fixing bracket | 1 |
| 55 | 10977710 | Bolt | 2 |
| 56 | 11195471 | Washer | 2 |
| 57 | 107073 | Front lower bulkhead | 1 |
| 58 | 107074 | Rear lower bulkhead | 1 |
| 59 | 13541121 | Long stud | 2 |
| 60 | 13540821 | Short stud | 5 |
| 61 | 15896211 | Nut | 7 |
| 62 | 11197771 | Washer | 7 |
| 63 | 102725 | Dowel | 2 |
| 64 | 13539021 | Stud for protection | 8 |
| 65 | 15896411 | Nut | 8 |
| 66 | 127035 | Conveyor - Until car no. 75271 | 1 |
| 66 | 136035 | Conveyor - From car no. 75272 | 1 |
| 67 | 107533 | Bellows - For conveyor no. 127035 | 1 |
| 67 | 136008 | Bellows - For conveyor no. 136035 | 1 |
| 68 | 128239 | Hose from cooler to filter support - Until car no. 77132 | 1 |
| 68 | 136939 | Hose from cooler to filter support - Starting from car no. 77133 | 1 |
| 69 | 128238 | Hose from cooler to crankase | 1 |
| 70 | 10902021 | Screw | 1 |
| 71 | 127494 | Washer | 1 |
| 72 | 12644401 | Washer | 1 |
| 73 | 136941 | Radiator support - Starting from car no. 77133 | 1 |
| 73 | 119168 | Radiator support - Until car no. 77132 | 1 |
| 74 | 136942 | Radiator support - Starting from car no. 77133 | 1 |
