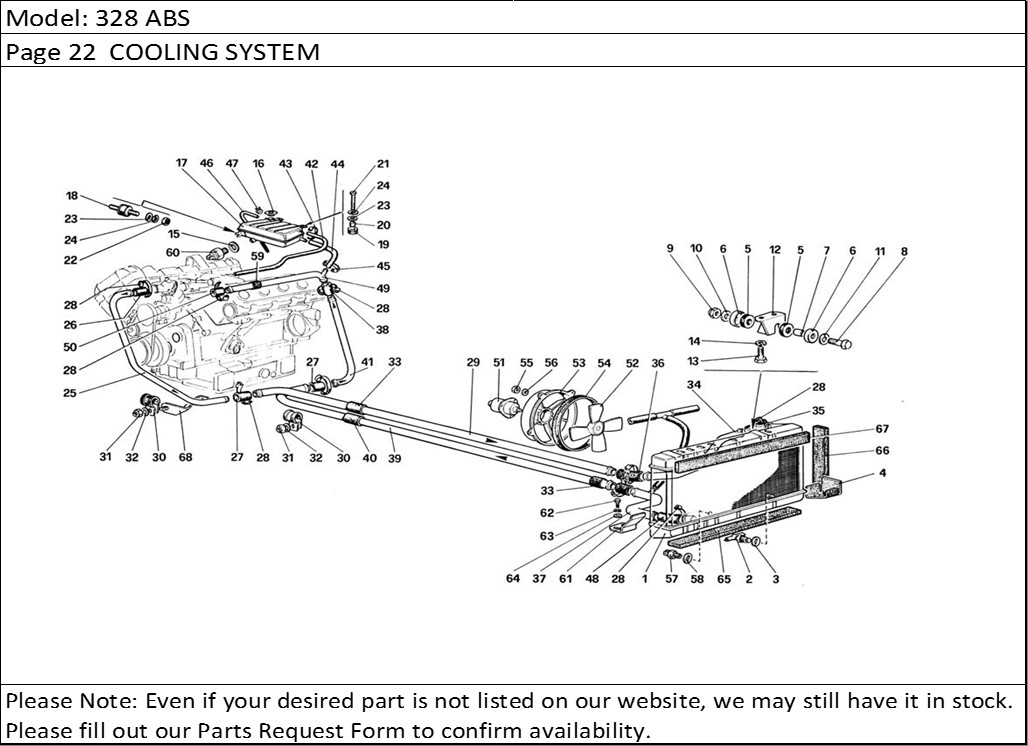

328 ABS Page 22 COOLING SYSTEM
Product Description
328 ABS Page 22 COOLING SYSTEM
Click on part number below to order. If unable to click on part number please fill out and submit Parts Request Form below to order.
| Location in Parts Diagram | Part # | Description | Quantity Used |
|---|---|---|---|
| 1 | 126879 | Water radiator | 1 |
| 2 | 101488 | Water drain cock | 1 |
| 4 | 117994 | Rubber shim, vibration damping | 2 |
| 5 | 107978 | Pad | 4 |
| 6 | 107979 | Cup | 4 |
| 7 | 107980 | Spacer | 2 |
| 8 | 16043821 | Screw | 2 |
| 9 | 16104411 | Nut | 2 |
| 10 | 112761 | Washer | 2 |
| 11 | 108292 | Washer | 2 |
| 12 | 117995 | Bracket | 2 |
| 13 | 16043021 | Screw | 4 |
| 14 | 11194071 | Washer | 4 |
| 15 | 10260060 | Gasket - For US | 1 |
| 16 | 101499 | Plug for tank | 1 |
| 17 | 120273 | Expansion tank - Not for US and CH | 1 |
| 17 | 121647 | Expansion tank - For US | 1 |
| 17 | 130641 | Expansion tank - For CH | 1 |
| 18 | 102947 | Vibration - damping support | 1 |
| 19 | 103549 | Vibration - damping bushing | 2 |
| 20 | 103550 | Spacer | 2 |
| 21 | 10902421 | Screw | 2 |
| 22 | 15896211 | Nut | 1 |
| 23 | 12643701 | Washer | 3 |
| 24 | 106850 | Washer | 3 |
| 25 | 108042 | Rear pipe, R.H. - For RHD use no. 108053 | 1 |
| 26 | 122817 | Sleeve - For RHD use no. 102957 | 1 |
| 27 | 105190 | Sleeve | 2 |
| 28 | 12177090 | Clamp | 18 |
| 29 | 108081 | Central pipe delivery to radiator - For RHD use no. 108082 | 1 |
| 30 | 107002 | Clamp | 2 |
| 31 | 12574211 | Nut | 2 |
| 32 | 12643701 | Washer | 2 |
| 33 | 105385 | Vibration damping sleeve | 3 |
| 34 | 127393 | Front pipe delivery to radiator - After exhaustion use no. 137962 - For RHD use no. 137963 | 1 |
| 35 | 122817 | Sleeve - For RHD use no. 102956 | 1 |
| 36 | 102957 | Sleeve | 1 |
| 37 | 118636 | Return pipe, front - For RHD use no. 109504 | 1 |
| 38 | 102957 | Sleeve | 2 |
| 39 | 108082 | Return pipe, central | 1 |
| 40 | 107465 | Vibration damping sleeve | 1 |
| 41 | 118795 | Rear pipe, L.H. - For RHD use no. 120497 | 1 |
| 42 | 122218 | Breather pipe, engine to water reservoir | 1 |
| 43 | 12179490 | Clamp | 2 |
| 44 | 122221 | Feeding pipe, expansion tank to engine | 1 |
| 45 | 12179990 | Clamp | 2 |
| 46 | 126292 | Breather pipe | 1 |
| 47 | 13423379 | Clamp | 1 |
| 48 | 122817 | Sleeve - For RHD use no. 102957 | 1 |
| 49 | 115136 | Pipe between heads | 1 |
| 50 | 122817 | Sleeve | 1 |
| 51 | 117546 | Electric fan motor | 2 |
| 52 | 122953 | Fan | 2 |
| 53 | 60870300 | Conveyor | 2 |
| 54 | 126883 | Gasket | 2 |
| 55 | 12574211 | Nut | 8 |
| 56 | 12643701 | Washer | 8 |
| 57 | 101507 | Thermocontact | 1 |
| 58 | 101508 | Gasket | 1 |
| 59 | 105385 | Sleeve | 1 |
| 60 | 121777 | Thermostat - For US | 1 |
| 61 | 130113 | Bracket | 2 |
| 62 | 10902211 | Screw | 4 |
| 63 | 12646701 | Washer | 4 |
| 64 | 127494 | Washer | 4 |
| 65 | 60773400 | Gasket | 1 |
| 66 | 61980300 | Gasket | 2 |
| 67 | 62369000 | Gasket | 1 |
| 68 | 129642 | Bracket - For US | 1 |
