328 ABS Page 23 WATER PUMP AND PIPING
Product Description

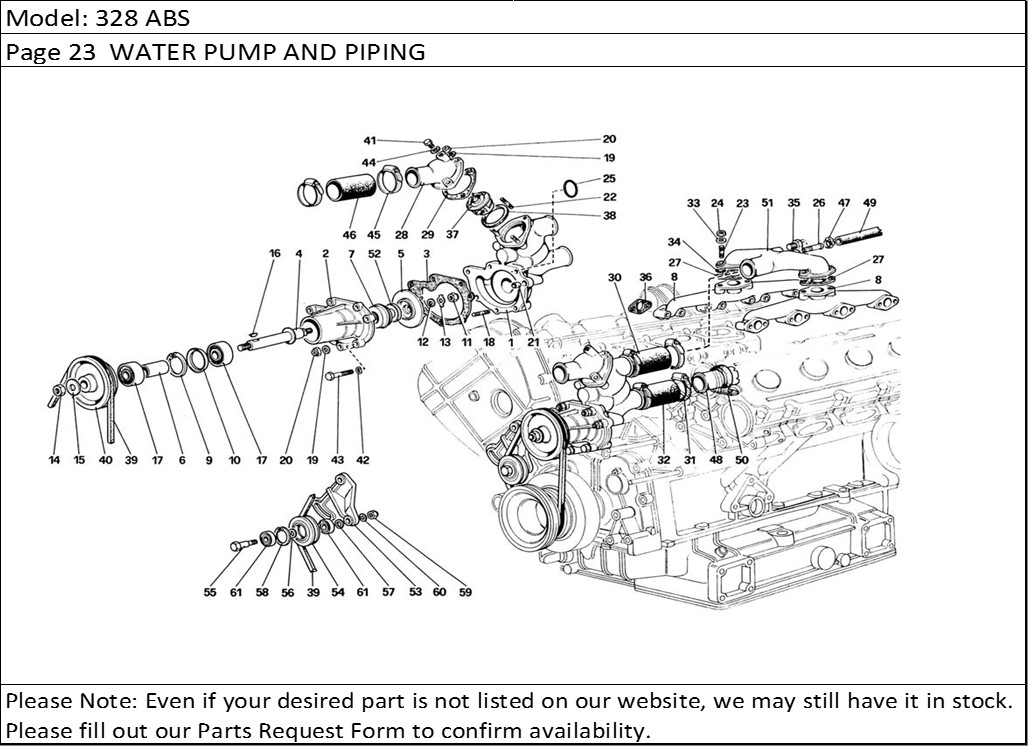

328 ABS Page 23 WATER PUMP AND PIPING
Click on part number below to order. If unable to click on part number please fill out and submit Parts Request Form below to order.
| Location in Parts Diagram | Part # | Description | Quantity Used |
|---|---|---|---|
| 1 | 115471 | Water pump body, complete | 1 |
| 1 | 115470 | Water pump body - With assembly no. 115471 | 1 |
| 1 | 121255 | Water pump completeFront | 1 |
| 2 | 121252 | Pump cover - With assembly no. 121255 | 1 |
| 3 | 103952 | Gasket - Not for C8 | 1 |
| 3 | 135121 | Gasket - For C8 | 1 |
| 4 | 121253 | Spindle for pulley | 1 |
| 5 | 121254 | Impeller | 1 |
| 6 | 116157 | Spacer | 1 |
| 7 | 120948 | Sealing ring | 1 |
| 8 | 116967 | Manifold of output water to the heads | 2 |
| 9 | 11060076 | Seeger ring | 1 |
| 10 | 116158 | Washer | 1 |
| 11 | 100436 | Cap nut | 1 |
| 12 | 10730301 | Washer | 1 |
| 13 | 100434 | Plate | 1 |
| 14 | 16101521 | Nut | 1 |
| 15 | 11198671 | Conic washer | 1 |
| 16 | 10205820 | Tongue | 1 |
| 17 | 116159 | Bearing | 2 |
| 18 | 11500721 | Stud | 3 |
| 19 | 12601271 | Corrugated washer | 6 |
| 20 | 12574211 | Nut | 6 |
| 21 | 102704 | Dowel | 2 |
| 22 | 11500421 | Stud | 3 |
| 23 | 13516821 | Stud | 4 |
| 24 | 16100811 | Nut | 4 |
| 25 | 105196 | Sealing ring | 1 |
| 26 | 106241 | Union | 1 |
| 27 | 132981 | Gasket - For C8 | 1 |
| 27 | 111481 | Gasket - Not for C8 | 1 |
| 28 | 105165 | Water outlet union | 1 |
| 29 | 105189 | Gasket | 1 |
| 30 | 121258 | Sleeve | 1 |
| 31 | 12177090 | Clamp | 2 |
| 32 | 122817 | Sleeve | 1 |
| 33 | 11198071 | Washer | 4 |
| 34 | 103039 | Sealing ring | 4 |
| 35 | 104628 | Thermistor | 1 |
| 36 | 111480 | Gasket | 8 |
| 37 | 128991 | Thermostat | 1 |
| 38 | 132980 | Gasket - For C8 | 1 |
| 38 | 105192 | Gasket - Not for C8 | 1 |
| 39 | 121655 | Control belt for water pump | 1 |
| 40 | 121654 | Pulley | 1 |
| 41 | 16042940 | Screw | 1 |
| 42 | 12601371 | Washer | 4 |
| 43 | 16044421 | Fixing screw for pump | 4 |
| 44 | 10260060 | Gasket | 1 |
| 45 | 12177090 | Clamp | 2 |
| 46 | 105190 | Sleeve | 1 |
| 47 | 12179490 | Clamp | 2 |
| 48 | 122857 | Tube | 1 |
| 49 | 122219 | Breather pipe | 1 |
| 50 | 61712600 | Clamp for pipe | 1 |
| 51 | 134863 | Joint piping to manifolds of output water - For C8 | 1 |
| 51 | 116968 | Joint piping to manifolds of output water - Not for C8 | 1 |
| 52 | 121553 | Backplate for ring | 1 |
| 53 | 121658 | Support | 1 |
| 54 | 121659 | Pulley | 1 |
| 55 | 105048 | Pin | 1 |
| 56 | 107841 | Spacer | 1 |
| 57 | 107842 | Spacer | 1 |
| 58 | 11059076 | Seeger | 1 |
| 59 | 16105121 | Nut | 1 |
| 60 | 103025 | Washer | 1 |
| 61 | 105038 | Bearing | 2 |
