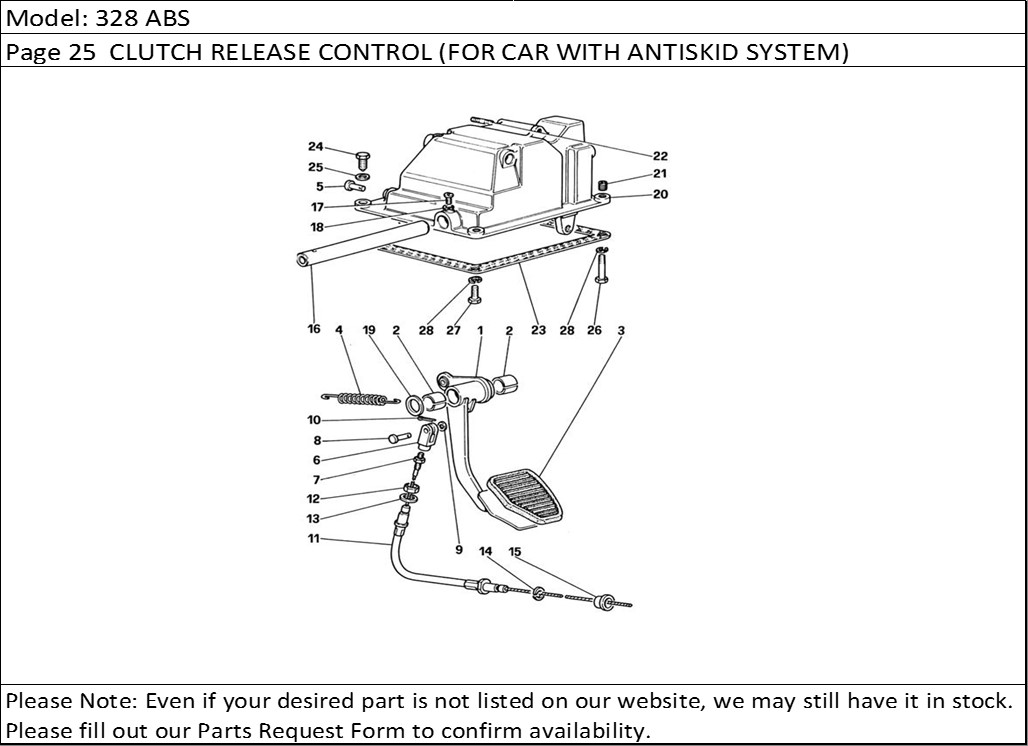

328 ABS Page 25 CLUTCH RELEASE CONTROL (FOR CAR WITH ANTISKID SYSTEM)
Product Description
328 ABS Page 25 CLUTCH RELEASE CONTROL (FOR CAR WITH ANTISKID SYSTEM)
Click on part number below to order. If unable to click on part number please fill out and submit Parts Request Form below to order.
| Location in Parts Diagram | Part # | Description | Quantity Used |
|---|---|---|---|
| 1 | 129946 | Clutch pedal | 1 |
| 2 | 103163 | Bush | 2 |
| 4 | 111734 | Return spring for pedal | 1 |
| 5 | 129612 | Pin for spring | 1 |
| 6 | 108575 | Fork | 1 |
| 7 | 100861 | Locknut | 1 |
| 8 | 103218 | Pin | 1 |
| 9 | 12638701 | Washer | 1 |
| 10 | 10734201 | Split pin | 1 |
| 11 | 106745 | Clutch control cable | 1 |
| 12 | 16103611 | Nut | 1 |
| 13 | 12601571 | Washer | 1 |
| 14 | 12601671 | Washer | 1 |
| 15 | 105396 | Fair lead | 1 |
| 16 | 129954 | Pin pedal support | 1 |
| 17 | 13276121 | Screw | 1 |
| 18 | 12601271 | Washer | 1 |
| 19 | 113834 | Shim, 1,2 mm. - Possible fitting | 1 |
| 19 | 113833 | Shim, 1 ,1 mm. - Possible fitting | 1 |
| 19 | 106083 | Shim, 1 mm. - Possible fitting | 1 |
| 19 | 113835 | Shim, 1,3mm. - Possible fitting | 1 |
| 19 | 113836 | Shim, 1,4 mm. - Possible fitting | 1 |
| 20 | 129956 | Pedals support | 1 |
| 21 | 13525770 | Heli - coil | 2 |
| 22 | 11500121 | Stud | 3 |
| 23 | 129957 | Gasket | 1 |
| 24 | 16139021 | Screw | 2 |
| 25 | 12601471 | Washer | 2 |
| 26 | 16044221 | Screw | 1 |
| 27 | 16043421 | Screw | 1 |
| 28 | 127496 | Washer | 2 |
| 32 | 82254300 | LH BRACKET | |
| 33 | 69129500 | ROLLER | |
