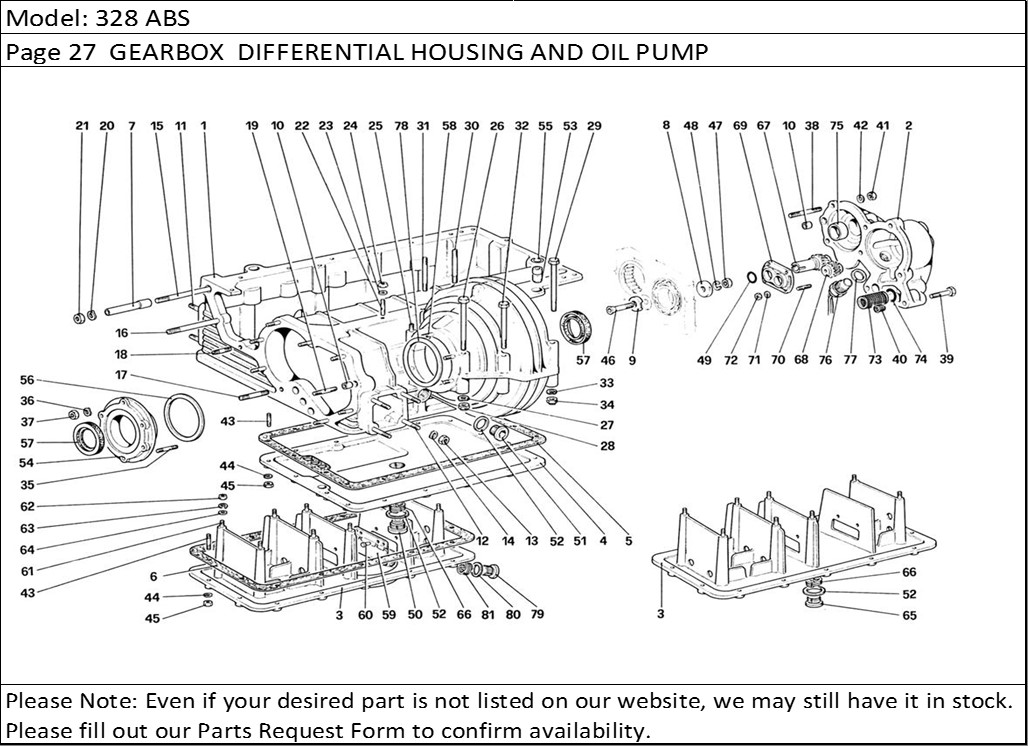

328 ABS Page 27 GEARBOX DIFFERENTIAL HOUSING AND OIL PUMP
Product Description
328 ABS Page 27 GEARBOX DIFFERENTIAL HOUSING AND OIL PUMP
Click on part number below to order. If unable to click on part number please fill out and submit Parts Request Form below to order.
| Location in Parts Diagram | Part # | Description | Quantity Used |
|---|---|---|---|
| 1 | 118341 | Gearbox differential and oil sumpWith assembly no. 115179 | 1 |
| 1 | 115179 | Complete gearbox | 1 |
| 1 | 131176 | Gearbox differential and oil sumpFor US M.Y. 87 | 1 |
| 2 | 113073 | Rear cover - With assembly no. 115179 | 1 |
| 3 | 104192 | Oil sump cover - With assembly no. 107875 | 1 |
| 3 | 129553 | Oil sump cover - With assembly no. 130919 | 1 |
| 3 | 130919 | Oil sump cover, complete - From engine no. 1395 EUR - 686 US | 1 |
| 3 | 107875 | Oil sump cover, complete - Up to engine no. 1391 EUR - 685 US | 1 |
| 4 | 115353 | Lower cover | 1 |
| 5 | 104196 | Gasket | 1 |
| 6 | 104197 | Gasket | 1 |
| 7 | 134480 | Centering dowel - From car no. 71799 | 1 |
| 7 | 104033 | Centering dowel - Until car no. 71797 | 1 |
| 8 | 104198 | Washer | 1 |
| 9 | 104199 | Washer | 1 |
| 10 | 102704 | Centering dowel | 2 |
| 11 | 13449321 | Stud for front pads | 8 |
| 12 | 13450021 | Stud for rear pads | 8 |
| 13 | 12164711 | Nut | 16 |
| 14 | 106853 | Washer | 16 |
| 15 | 13952821 | Stud | 1 |
| 16 | 13952621 | Stud | 1 |
| 17 | 13517421 | Stud | 1 |
| 18 | 13517221 | Stud | 8 |
| 19 | 13517321 | Stud | 1 |
| 20 | 11198071 | Washer | 12 |
| 21 | 16100811 | Nut | 12 |
| 22 | 108966 | Stud for Crankcase | 4 |
| 23 | 11198071 | Washer | 4 |
| 24 | 16100811 | Nut | 4 |
| 25 | 13450421 | Stud | 4 |
| 26 | 15972021 | Bolt | 2 |
| 27 | 12638601 | Washer | 2 |
| 28 | 12574511 | Selflocking nut | 4 |
| 29 | 104189 | Bolt | 4 |
| 30 | 13518021 | Stud | 1 |
| 31 | 13517821 | Stud | 2 |
| 32 | 107711 | Bolt | 1 |
| 33 | 10519601 | Washer | 1 |
| 34 | 16104111 | Selflocking nut | 5 |
| 35 | 12429721 | Stud | 5 |
| 36 | 12601371 | Spring washer | 6 |
| 37 | 16104111 | Nut | 6 |
| 38 | 13517221 | Stud | 5 |
| 39 | 16044221 | Screw for cover and propelling unit earth | 1 |
| 39 | 16044121 | Screw | 2 |
| 40 | 13525770 | Heli -Coil | 3 |
| 41 | 16100811 | Nut | 5 |
| 42 | 11198071 | Washer | 8 |
| 43 | 13541121 | Stud | 30 |
| 44 | 11197771 | Washer | 30 |
| 45 | 15896211 | Nut | 30 |
| 46 | 104218 | Screw | 1 |
| 47 | 16100811 | Nut | 1 |
| 48 | 106852 | Washer | 1 |
| 49 | 101032 | Sealing ring | 1 |
| 50 | 104280 | Plug | 1 |
| 51 | 10275001 | Plug | 1 |
| 52 | 10263460 | Gasket | 3 |
| 53 | 103838 | Dowel | 2 |
| 54 | 108226 | Differential side code - With assembly no. 115179 | 1 |
| 55 | 103839 | Ring | 2 |
| 56 | 132927 | Ditto thickness mm. 2,70 | 1 |
| 56 | 132931 | Ditto thickness mm. 2,95 | 1 |
| 56 | 132926 | Ditto thickness mm. 2,65 | 1 |
| 56 | 103422 | Spacer for L. H. bearing, thickness mm. 2, 4 (eventual use) | 1 |
| 56 | 103423 | Ditto thickness mm. 2,60 | 1 |
| 56 | 132930 | Ditto thickness mm. 2,90 | 1 |
| 56 | 109145 | Ditto thickness mm. 4,30 | 1 |
| 56 | 132929 | Ditto thickness mm. 2,85 | 1 |
| 56 | 103424 | Ditto thickness mm. 2,80 | 11 |
| 56 | 132928 | Ditto thickness mm. 2,75 | 1 |
| 56 | 103425 | Ditto thickness mm. 3,00 | 1 |
| 56 | 132925 | Ditto thickness mm. 2,55 | 1 |
| 56 | 132924 | Ditto thickness mm. 2,50 | 1 |
| 56 | 132923 | Ditto thickness mm. 2,45 | 1 |
| 56 | 103426 | Ditto thickness mm. 3,20 | 1 |
| 57 | 125078 | Sealing ring | 1 |
| 58 | 13543421 | Stud | 2 |
| 59 | 107589 | Vertical protection | 4 |
| 60 | 100033 | Rivet | 8 |
| 61 | 13539021 | Stud for lower | 8 |
| 62 | 15896411 | Nut | 8 |
| 63 | 106849 | Spring washer | 8 |
| 64 | 12638101 | Washer | 1 |
| 65 | 10275040 | Plug - For cover no. 107875 | 2 |
| 66 | 112254 | Heli - coil | 1 |
| 67 | 116953 | Oil pump drive gear | 1 |
| 68 | 113082 | Oil pump driven gear | 1 |
| 69 | 113086 | Oil pump cover | 1 |
| 70 | 11000921 | Stud | 4 |
| 71 | 12601171 | Washer | 4 |
| 72 | 15896411 | Nut | 4 |
| 73 | 115538 | Oil pump filter | 1 |
| 74 | 101034 | Sealing ring | 1 |
| 75 | 113088 | Seat | 1 |
| 76 | 116987 | Pulse generator | 1 |
| 77 | 10263460 | Gasket | 1 |
| 78 | 103424 | Space for R. H. bearing | 1 |
| 79 | 103974 | PlugWith cover no. 129553 | 1 |
| 80 | 10257060 | GasketWith cover no. 129553 | 1 |
| 81 | 111352 | Heli -coilWith cover no. 129553 | 1 |
