328 ABS Page 29 LAY SHAFT GEARS
Product Description

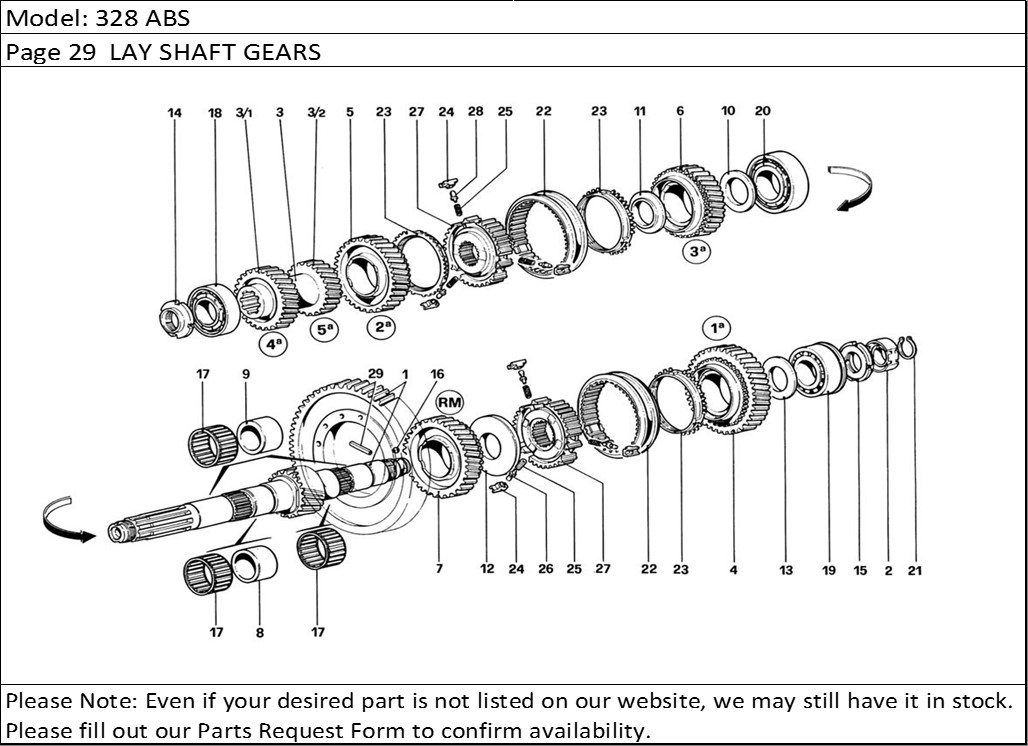

328 ABS Page 29 LAY SHAFT GEARS
Click on part number below to order. If unable to click on part number please fill out and submit Parts Request Form below to order.
| Location in Parts Diagram | Part # | Description | Quantity Used |
|---|---|---|---|
| 1 | 128990 | Layshaft - With assembly no. 132471 | 1 |
| 1 | 119706 | Layshaft - With assembly no. 119725 | 1 |
| 1 | 119725 | Crown and pinion, complete - For US | 1 |
| 1 | 132471 | Crown and pinion complete - For C7 and C8 | 1 |
| 1 | 119761 | Layshaft - With assembly no. 119763 | 1 |
| 2 | 116352 | Disc for pulse generator | 1 |
| 3 | 119707 | Gear, 4th - 5th speeds | 1 |
| 3 | 129836 | Gear, 5th speed - After exhaustion use no. 119707- 3/2 on Picture | 1 |
| 3 | 129835 | Gear, 4th speed - After exhaustion use no. 119707- 3/1 on Picture | 1 |
| 4 | 119715 | Gear, 1st speed - Until gearbox no. 2279 EUR - 1694 US | 1 |
| 4 | 132823 | Gear, 1st speed - Starting from gearbox no. 2280 EUR - 1695 USA | 1 |
| 5 | 119716 | Gear, 2nd speed Until gearbox no. 2279 EUR - 1694 US | 1 |
| 5 | 132824 | Gear, 2nd speed Starting from gearbox no. 2280 EUR - 1695 US | 1 |
| 6 | 119717 | Gear, 3rd speed Until gearbox no. 2279 EUR - 1694 US | 1 |
| 6 | 132825 | Gear, 3nd speed - Starting from gearbox no.2280 EUR - 1695 US | 1 |
| 7 | 119720 | Gear, reverse Until gearbox no. 2279 EUR - 1694 USA | 1 |
| 7 | 132828 | Gear, reverse Starting from gearbox no. 2280 EUR - 1695 USA | 1 |
| 8 | 113083 | Bearing race, 3rd speed | 1 |
| 9 | 113084 | Bearing race, 1st - 2nd speeds | 1 |
| 10 | 104245 | Spacer | 1 |
| 11 | 104246 | Spacer | 1 |
| 12 | 104247 | Spacer | 1 |
| 13 | 104248 | Spacer | 1 |
| 14 | 104252 | Ring nut | 1 |
| 15 | 104253 | Ring nut | 1 |
| 16 | 101611 | Ball | 1 |
| 17 | 104254 | Roller cage for 1st, 2nd, 3rd speeds and reverse | 4 |
| 18 | 108656 | Bearing, clutch side | 1 |
| 19 | 103042 | Bearing | 1 |
| 20 | 108657 | Central bearing | 1 |
| 21 | 11067376 | Spring ring | 1 |
| 22 | 131804 | Sleeve for synchronizer Starting from gearbox no. 2280 EUR - 1965 US | 2 |
| 22 | 106038 | Sleeve for synchronizer Unit gearbox no. 2279 EUR - 1694 US | 2 |
| 23 | 106040 | Synchromesh ring | 3 |
| 24 | 106042 | Pad | 6 |
| 25 | 106043 | Spring for cap | 6 |
| 26 | 106044 | Cap | 3 |
| 27 | 106050 | Synchronizer body | 2 |
| 28 | 113412 | Cap | 3 |
| 29 | 13907570 | Pin | 1 |
| 32 | 82254300 | LH BRACKET | |
| 33 | 69129500 | ROLLER | |
| 1 | 9664 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Cadenino- -Leather- -Leather- -Valid | 1 |
| 1 | 9665 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Cadenino- -Leather- -Alcantara- stitching | 1 |
| 1 | 9690 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona + lining- -Leather- -Leather- | 1 |
| 1 | 9691 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona + lining- -Leather- -Alcantara- | 1 |
| 1 | 9666 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Daytona + lining- -Leather- -Leather- | 1 |
| 1 | 9667 | L.H. SEAT COMPLETE WITH GUDES -Easy entry- -Full OPT- -Daytona + lining- -Leather- -Alcantara- | 1 |
| 1 | 9692 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Logerzy- -Leather- -Leather- -Valid for | 1 |
| 1 | 9693 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Logerzy- -Leather- -Alcantara- -Valid for | 1 |
| 1 | 9668 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Logerzy- -Leather- -Leather- -Valid for | 1 |
| 1 | 9669 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Logerzy- -Leather- -Alcantara- -Valid | 1 |
| 1 | 9694 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Piping+Quilt- -Leather- -Leather- -Valid | 1 |
| 1 | 9695 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Piping+Quilt- -Leather- -Alcantara- -Valid | 1 |
| 1 | 9670 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Piping+Quilt- -Leather- -Leather- -Valid for USA and CDN- -For vehicles up to Ass. No. 86008 with seat with back panel without | 1 |
| 1 | 9671 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Piping+Quilt- -Leather- -Alcantara- | 1 |
| 1 | 9696 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Carbon- -Leather- -Leather- -Valid for | 1 |
| 1 | 9697 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Carbon- -Leather- -Alcantara- -Valid for | 1 |
| 1 | 9672 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Carbon- -Leather- -Leather- -Valid for | 1 |
| 1 | 9673 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Carbon- -Leather- -Alcantara- -Valid for | 1 |
| 1 | 9698 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona- -Carbon- -Leather- -Leather- | 1 |
| 1 | 9699 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona- -Carbon- -Leather- -Alcantara- | 1 |
| 1 | 9674 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Daytona- -Carbon- -Leather- | 1 |
| 1 | 9675 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Daytona- -Carbon- -Leather- | 1 |
| 1 | 9700 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Cadenino- -Carbon- -Leather- -Leather- | 1 |
| 1 | 9701 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Cadenino- -Carbon- -Leather- | 1 |
| 1 | 9676 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Cadenino- -Carbon- -Leather- -Leather--Valid for USA and CDN- -For vehicles up to Ass. No. 86008 with seat with back panel | 1 |
| 1 | 9677 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Cadenino- -Carbon- -Leather- | 1 |
| 1 | 9702 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona + lining- -Carbon- -Leather- | 1 |
| 1 | 9703 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona + lining- -Carbon- -Leather- | 1 |
| 1 | 9678 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Daytona + lining- -Carbon- -Leather- | 1 |
| 1 | 9679 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Daytona + lining- -Carbon- -Leather- | 1 |
| 1 | 9704 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Lozengy- -Carbon- -Leather- -Leather- | 1 |
| 1 | 9705 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Lozengy- -Carbon- -Leather- -Alcantara- stitching | 1 |
| 1 | 9680 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Lozengy- -Carbon- -Leather- | 1 |
| 1 | 9681 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Lozengy- -Carbon- -Leather- | 1 |
| 1 | 9706 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Piping + Quilt- -Carbon- -Leather- | 1 |
| 1 | 9707 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Piping + Quilt- -Carbon- -Leather- | 1 |
| 1 | 9682 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Piping + Quilt- -Carbon- -Leather- | 1 |
| 1 | 9683 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Piping + Quilt- -Carbon- -Leather- | 1 |
