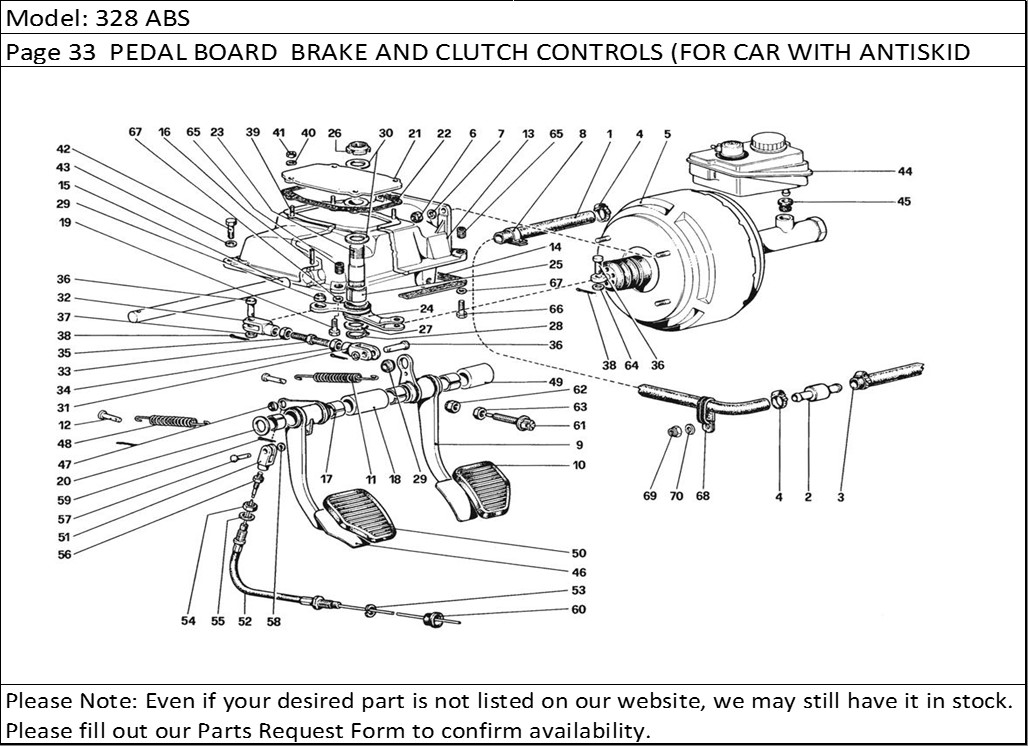

328 ABS Page 33 PEDAL BOARD BRAKE AND CLUTCH CONTROLS (FOR CAR WITH ANTISKID SYSTEM)
Product Description
328 ABS Page 33 PEDAL BOARD BRAKE AND CLUTCH CONTROLS (FOR CAR WITH ANTISKID SYSTEM)
Click on part number below to order. If unable to click on part number please fill out and submit Parts Request Form below to order.
| Location in Parts Diagram | Part # | Description | Quantity Used |
|---|---|---|---|
| 1 | 120233 | Pipe, vacum servo to check valve - For RHD use no. 129230 | 1 |
| 2 | 101538 | Check valve - After exhaustion use no. 128435 | 1 |
| 3 | 107982 | Pipe, check valve to manifold | 1 |
| 4 | 12179590 | Strap | 4 |
| 5 | 133569 | Vacuum servo - From car no. 72029 | 1 |
| 5 | 124514 | Vacuum servo - After exhaustion use no. 131008 | 1 |
| 6 | 16104411 | Nut | 4 |
| 7 | 12601371 | Washer | 4 |
| 8 | 10418901 | Strap | 1 |
| 9 | 108533 | Brake pedal | 1 |
| 10 | 106950 | Cover for brake pedal | 1 |
| 11 | 104895 | Return spring for brake pedal | 1 |
| 12 | 104896 | Pin | 2 |
| 13 | 106187 | Pedals support - With assembly no. 108022 | 1 |
| 13 | 108022 | Pedals support, complete | 1 |
| 14 | 104899 | Gasket - After exhaustion use no. 129957 | 1 |
| 15 | 104900 | Pin | 1 |
| 16 | 104901 | Pin | 1 |
| 17 | 103163 | Bushing | 4 |
| 18 | 104902 | Spacer | 1 |
| 19 | 16043621 | Screw, fixing pedals | 1 |
| 20 | 106083 | Washer | 1 |
| 21 | 104904 | Cover | 1 |
| 22 | 104905 | Gasket | 1 |
| 23 | 106081 | Pin | 1 |
| 24 | 108313 | Vacuum servo lever | 1 |
| 25 | 100787 | Bushing | 1 |
| 26 | 106082 | Ring nut | 1 |
| 27 | 108382 | Spacer | 1 |
| 28 | 11066875 | Seeger ring | 1 |
| 29 | 100424 | Ball joint | 2 |
| 30 | 106084 | Washer | 2 |
| 31 | 104910 | ForkL.H. thread | 1 |
| 32 | 104911 | Fork | 1 |
| 33 | 104912 | Adjusting screw | 1 |
| 34 | 11690911 | NutL.H. thread | 1 |
| 35 | 10788711 | NutR.H. thread | 1 |
| 36 | 10033411 | Pin | 3 |
| 37 | 103167 | Washer | 2 |
| 38 | 10796301 | Split pin | 3 |
| 39 | 11500021 | Stud | 4 |
| 40 | 12601271 | Corrugated washer | 4 |
| 41 | 15896211 | Nut | 4 |
| 42 | 16139021 | Bolt | 2 |
| 43 | 12601471 | Corrugated washer | 2 |
| 44 | 119566 | Brake fluid reservoir - For vacuum servo no. 124514 and 131008 | 1 |
| 44 | 133579 | Brake fluid reservoir - For vacuum servo no. 133569 | 1 |
| 45 | 106625 | Sealing ring | 2 |
| 46 | 116324 | Clutch pedal | 1 |
| 47 | 100423 | Ball joint | 1 |
| 48 | 117374 | Return spring for clutch pedal | 1 |
| 49 | 104903 | Spacer | 1 |
| 50 | 106949 | Cover for pedal | 1 |
| 51 | 108575 | Fork | 1 |
| 52 | 106745 | Clutch control cable | 1 |
| 53 | 12601671 | Spring washer | 1 |
| 54 | 16103611 | Nut | 1 |
| 55 | 12601571 | Spring washer | 1 |
| 56 | 100861 | Lock nut | 1 |
| 57 | 103218 | Pin | 1 |
| 58 | 12639701 | Washer | 1 |
| 59 | 10734201 | Split pin | 1 |
| 60 | 105369 | Fair lead | 3 |
| 61 | 101663 | Switch for stop lights | 1 |
| 62 | 101662 | Nut | 1 |
| 63 | 10791211 | Nut | 1 |
| 64 | 10730521 | Washer | 1 |
| 65 | 106188 | Threaded bushing | 2 |
| 66 | 10644321 | Screw, fixing pedals | 1 |
| 67 | 106852 | Washer | 2 |
| 68 | 61712600 | Strap | 1 |
| 69 | 12574211 | Nut | 1 |
| 70 | 14496401 | Washer | 1 |
