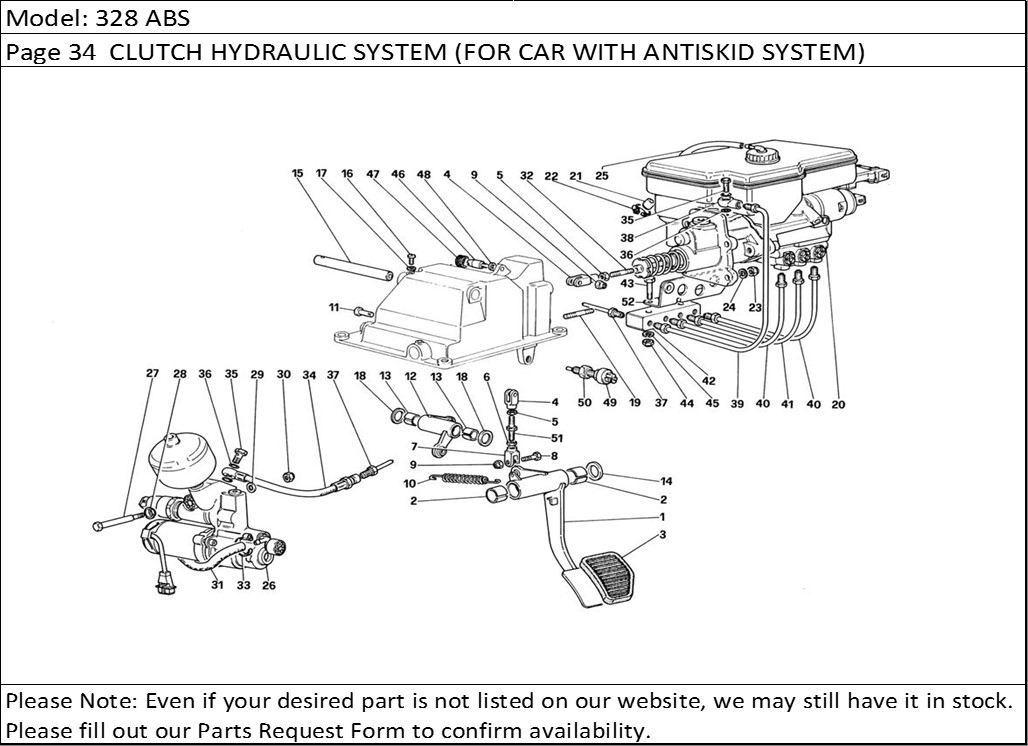

328 ABS Page 34 CLUTCH HYDRAULIC SYSTEM (FOR CAR WITH ANTISKID SYSTEM)
Product Description
328 ABS Page 34 CLUTCH HYDRAULIC SYSTEM (FOR CAR WITH ANTISKID SYSTEM)
Click on part number below to order. If unable to click on part number please fill out and submit Parts Request Form below to order.
| Location in Parts Diagram | Part # | Description | Quantity Used |
|---|---|---|---|
| 1 | 129948 | Brake pedal | 1 |
| 2 | 117812 | Bush | 2 |
| 3 | 106950 | Pedal cover | 1 |
| 4 | 129616 | Fork | 2 |
| 5 | 16102311 | Lock nutL.H. thread | 2 |
| 6 | 16102911 | Lock nutR.H. thread | 1 |
| 7 | 129951 | Fork | 1 |
| 8 | 130926 | Screw | 3 |
| 9 | 16104411 | Selflocking nut | 3 |
| 10 | 104895 | Spring return pedal | 1 |
| 11 | 129612 | Pin | 1 |
| 12 | 128952 | Brake lever | 1 |
| 13 | 106500 | Bush | 2 |
| 14 | 106083 | Shim | 1 |
| 15 | 129955 | Pin for brake lever | 1 |
| 16 | 13276121 | Screw | 1 |
| 17 | 12601271 | Washer . | 1 |
| 18 | 112126 | Shim | 2 |
| 19 | 13543421 | Stud | 4 |
| 20 | 137006 | Idraulic control unit | 1 |
| 21 | 136379 | Plug | 1 |
| 22 | 12179190 | Clamp | 1 |
| 23 | 16104111 | Selflocking nut | 4 |
| 24 | 12601379 | Washer | 4 |
| 25 | 110926 | Breather pipe | 1 |
| 26 | 131324 | Master cylinder | 1 |
| 27 | 129636 | Screw | 1 |
| 28 | 130861 | Washer | 1 |
| 29 | 121558 | Washer | 1 |
| 30 | 12574211 | Selflocking nut | 1 |
| 31 | 120930 | Pipe | 1 |
| 32 | 13517121 | Stud | 1 |
| 33 | 12179190 | Clamp | 2 |
| 34 | 136315 | Hose | 1 |
| 35 | 131873 | Union | 2 |
| 36 | 131874 | OR ring | 4 |
| 37 | 105849 | Pipe | 1 |
| 38 | 136311 | Union | 1 |
| 39 | 105851 | Pipe | 1 |
| 40 | 106671 | PipeFront circuite | 2 |
| 41 | 137427 | PipeRear circuite | 1 |
| 42 | 136377 | Plate union | 1 |
| 43 | 10902821 | Screw | 2 |
| 44 | 12575421 | Selflocking nut | 2 |
| 45 | 12601271 | Washer | 2 |
| 46 | 137144 | Pin | 1 |
| 47 | 103549 | Fair lead | 1 |
| 48 | 106744 | Washer | 1 |
| 49 | 101663 | Switch for stop light | 1 |
| 50 | 10791211 | Nut | 1 |
| 51 | 129950 | Adjust | 1 |
| 52 | 136378 | Bracket | 1 |
