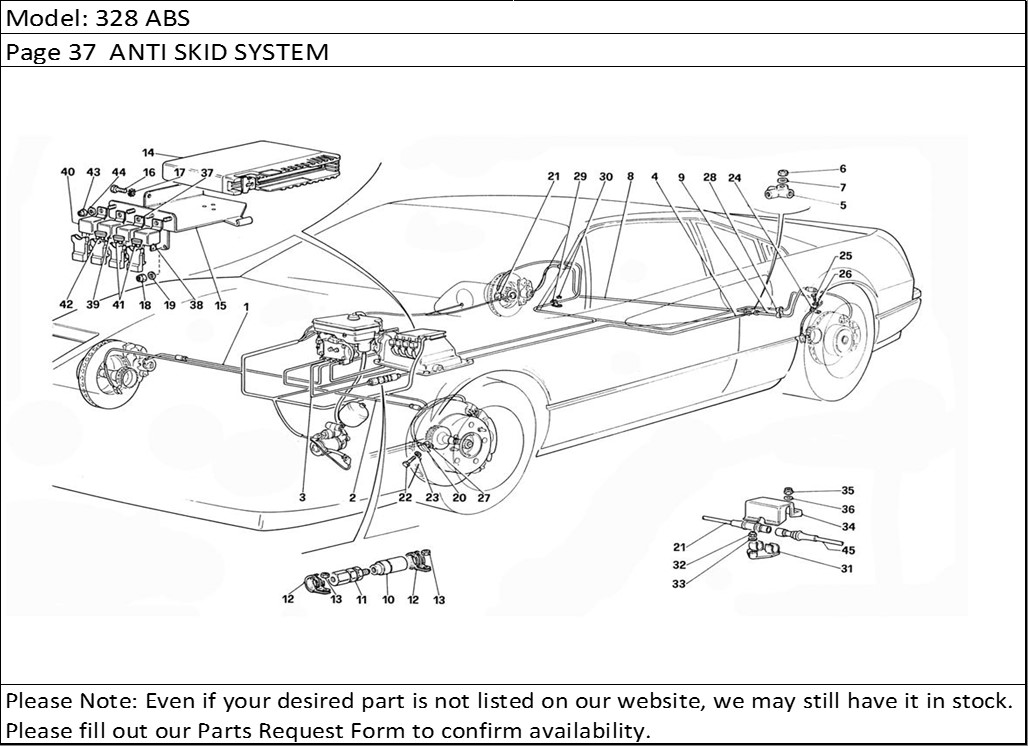

328 ABS Page 37 ANTI SKID SYSTEM
Product Description
328 ABS Page 37 ANTI SKID SYSTEM
Click on part number below to order. If unable to click on part number please fill out and submit Parts Request Form below to order.
| Location in Parts Diagram | Part # | Description | Quantity Used |
|---|---|---|---|
| 1 | 105278 | Pipe right - (front circuit) For RHD use no. 104469 | 1 |
| 2 | 105278 | Pipe left - (front circuit) For RHD use no. 104469 | 1 |
| 4 | 128370 | Pipe from pressure regulator - to 3 way union For RHD use no. 117344 | 1 |
| 5 | 101394 | 3 way union | 1 |
| 6 | 12674211 | Selflocking nut | 1 |
| 7 | 12639701 | Washer | 1 |
| 8 | 104470 | Pipe from 3 way to hose R.H. rear | 1 |
| 9 | 101395 | Pipe from 3 way to hose L.H. rear | 1 |
| 10 | 136313 | Pressure regulator | 1 |
| 11 | 134597 | Delay valve | 1 |
| 12 | 10441990 | Clamp | 2 |
| 13 | 12575411 | Nut | 2 |
| 14 | 131325 | Electronic control unit | 1 |
| 15 | 136431 | Electronic control unit braket - For RHD use no. 138883 | 1 |
| 16 | 131745 | Screw | 2 |
| 17 | 10615271 | Washer | 2 |
| 18 | 12574211 | Selflocking nut | 2 |
| 19 | 10519401 | Washer | 2 |
| 20 | 136312 | Front sensor | 2 |
| 21 | 131876 | Rear sensor | 2 |
| 22 | 10902121 | Screw | 4 |
| 23 | 12601271 | Washer | 4 |
| 24 | 131783 | Clip | 4 |
| 25 | 10902121 | Screw | 4 |
| 26 | 12601271 | Washer | 4 |
| 27 | 136401 | Washer - Possible fitting | 4 |
| 28 | 124551 | Clip | 4 |
| 29 | 10418501 | Strap | 10 |
| 30 | 12575411 | Selflocking nut | 10 |
| 31 | 128292 | Clip | 2 |
| 32 | 12574011 | Selflocking nut | 2 |
| 33 | 10519201 | Washer | 2 |
| 34 | 137021 | Cover | 2 |
| 35 | 12574011 | Selflocking nut | 4 |
| 36 | 10519201 | Washer | 4 |
| 37 | 131938 | Ectronic control unit relay | 1 |
| 38 | 131939 | Relay for motor pump | 1 |
| 39 | 131940 | Protection for system oveririding | 1 |
| 40 | 131785 | Protection relay | 1 |
| 41 | 131941 | 30 Amp fuse | 2 |
| 42 | 131942 | 3 Amp fuse | 1 |
| 43 | 12574111 | Selfolocking nut | 4 |
| 44 | 10519301 | Washer | 4 |
| 45 | 62451500 | Cable for Antiskid - For RHD use no. 62462100 | 1 |
