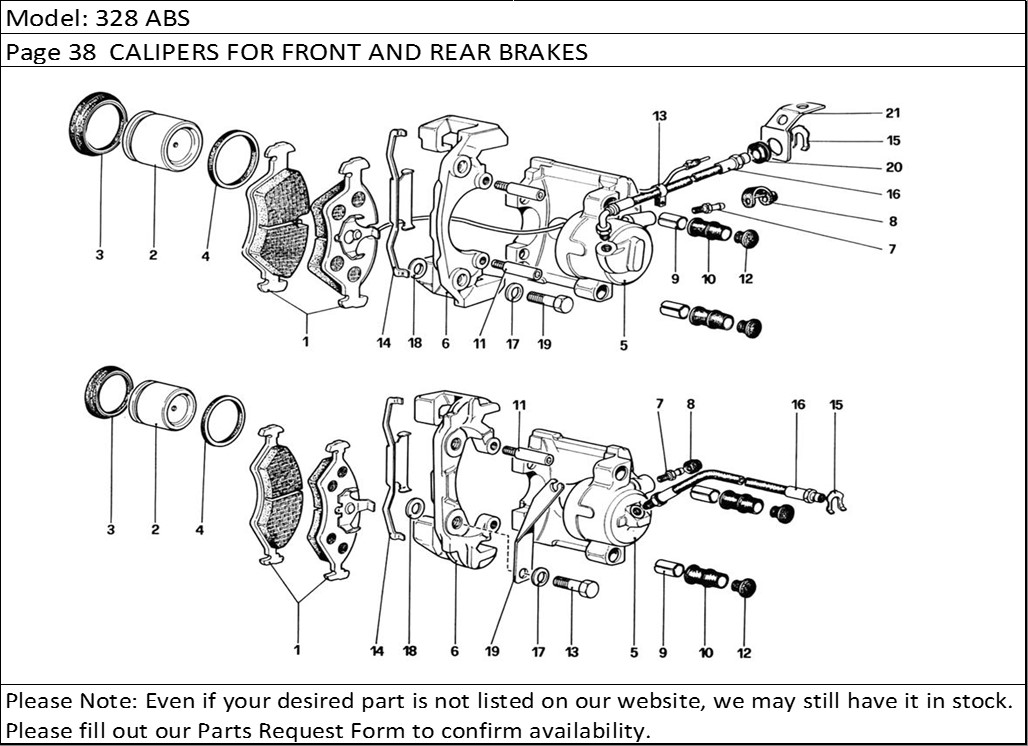

328 ABS Page 38 CALIPERS FOR FRONT AND REAR BRAKES
Product Description
328 ABS Page 38 CALIPERS FOR FRONT AND REAR BRAKES
Click on part number below to order. If unable to click on part number please fill out and submit Parts Request Form below to order.
| Location in Parts Diagram | Part # | Description | Quantity Used |
|---|---|---|---|
| 1 | 118589 | Set of FERIT 1/D 346GG rear pads - With Amianthus | 1 |
| 1 | 136600 | Right front caliper unit with pads Without Amianthus | 1 |
| 1 | 117181 | Left front caliper unit with pads With Amianthus | 1 |
| 1 | 136601 | Left front caliper unit with pads Without Amianthus | 1 |
| 1 | 118588 | Set of FERIT 1/D 346GG front pads - With Amianthus | 1 |
| 1 | 135704 | Set of FERODO 3416 F front pads - Without Amianthus | 1 |
| 1 | 135705 | Set of FERODO 3416 F rear pads - Without Amianthus | 1 |
| 2 | - | Brake cylinderNot supplied as spare parts but only with units 117181 abd 117182 - 136600 and 136601 | 2 |
| 2 | - | Brake cylinderNot supplied as spare parts but only with units 117181 and 117182 - 136602 and 136603 | 2 |
| 3 | - | Sealing ring - With kit no. 116927 | 2 |
| 4 | - | Stop ringNot supplied as spare parts but only with units 117181 and 117182 - 136602 and 136603 | 2 |
| 4 | - | Stop ringNot supplied as spare parts but only with units 117181 abd 117182 - 136600 and 136601 | 2 |
| 5 | - | Cylinder bodyNot supplied as spare parts but only with units 117181 abd 117182 - 136600 and 136601 | 2 |
| 5 | - | Cylinder bodyNot supplied as spare parts but only with units 117181 and 117182 - 136602 and 136603 | 2 |
| 6 | - | Support for caliperNot supplied as spare parts but only with units 117181 and 117182 - 136602 and 136603 | 2 |
| 6 | - | Support for caliperNot supplied as spare parts but only with units 117181 abd 117182 - 136600 and 136601 | 2 |
| 7 | - | BleederNot supplied as spare parts but only with units 117181 abd 117182 - 136600 and 136601 | 2 |
| 7 | - | BleederNot supplied as spare parts but only with units 117181 and 117182 - 136602 and 136603 | 2 |
| 8 | 116928 | Overhaul kit rear calipers | 2 |
| 8 | 116927 | Overhaul kit front calipers | 1 |
| 8 | - | Bleeder capNot supplied as spare parts but only with units 117181 and 117182 - 136602 and 136603 | 2 |
| 8 | - | Bleeder cap | 2 |
| 9 | - | Guide bush - With kit no. 116928 | 2 |
| 9 | - | Guide bush - With kit no. 116727 | 2 |
| 10 | - | Dust protection ring - Col kit no. 116927 | 4 |
| 10 | - | Dust protection ring - With kit no. 116928 | 4 |
| 11 | 95691540 | Threaded pin | 4 |
| 12 | - | Cap - With kit no. 116927 | 4 |
| 12 | - | Cap - With kit no. 116928 | 4 |
| 13 | 40135402 | Clamp for pad cable | 8 |
| 13 | 117194 | Calipers fixing screw | 4 |
| 14 | 95691542 | Clip for caliper | 2 |
| 14 | 95691541 | Clip for caliper | 2 |
| 15 | 116374 | Clamp for hose | 2 |
| 16 | 118100 | Hose | 2 |
| 16 | 118101 | Hose | 2 |
| 17 | 11198371 | Washer | 4 |
| 17 | 106854 | Washer | 4 |
| 18 | 108921 | Ditto, thickness 0,6 mm. | 4 |
| 18 | 117086 | Ditto, thickness 0,5 mm. | 4 |
| 18 | 108283 | Ditto, thickness 0,4 mm. | 4 |
| 18 | 108920 | Ditto, thickness 0,5 mm. | 4 |
| 18 | 117085 | Ditto, thickness 0,3 mm. | 4 |
| 18 | 108919 | Ditto, thickness 0,3 mm. | 4 |
| 18 | 108922 | Ditto, thickness 0,7 mm. | 4 |
| 18 | 108918 | Shim between caliper and stub axle, 0,2 mm. Thickness | 4 |
| 18 | 117084 | Shim between caliper and hub holder - 0,2 mm. Thickness | 4 |
| 18 | 107835 | Ditto, thickness 1mm | 4 |
| 18 | 108924 | Ditto, thickness 1 mm. | 4 |
| 18 | 108923 | Ditto, thickness 0,8 mm. | 4 |
| 19 | 131870 | Left bracket | 1 |
| 19 | 117193 | Screw fixing caliper to stub axle | 4 |
| 19 | 131869 | Right bracket | 1 |
| 20 | 10397680 | Fair-lead | 2 |
| 21 | 127847 | Right braket for hose | 1 |
| 21 | 117184 | Right rear caliper unit with pads -With Amianthus | 1 |
| 21 | 117183 | Left rearcaliper unit with pads - With Amianthus | 1 |
| 21 | 136602 | Right rear caliper unit with pads -With Amianthus | 1 |
| 21 | 127839 | Left braket for hose | 1 |
| 21 | 136603 | Left rear caliper unit with pads -Without Amianthus | 1 |
