328 ABS Page 39 HAND BRAKE CONTROL
Product Description

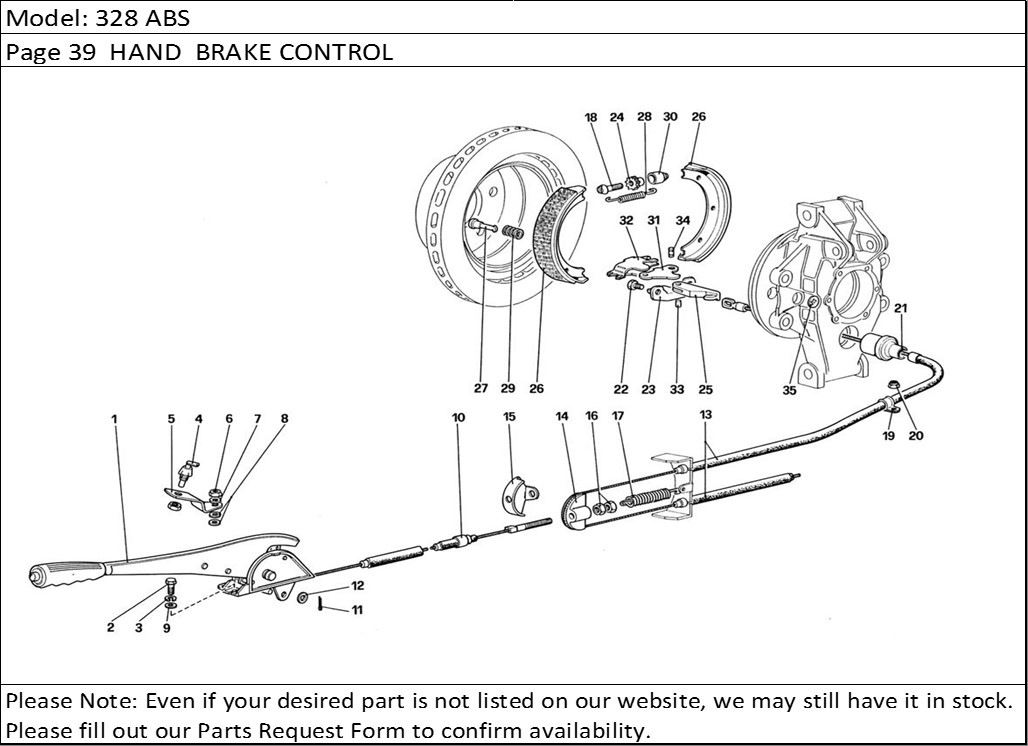

328 ABS Page 39 HAND BRAKE CONTROL
Click on part number below to order. If unable to click on part number please fill out and submit Parts Request Form below to order.
| Location in Parts Diagram | Part # | Description | Quantity Used |
|---|---|---|---|
| 1 | 126679 | Hand brake lever - For LHD | 1 |
| 1 | 126681 | Hand brake lever - For RHD | 1 |
| 3 | 106850 | Washer | 3 |
| 4 | 114318 | Switch | 1 |
| 5 | 114320 | Bracket fixing switch | 1 |
| 6 | 15896411 | Nut | 1 |
| 7 | 12605270 | Washer | 1 |
| 8 | 10519301 | Washer (Possible fitting) | 2 |
| 9 | 14496501 | Washer | 1 |
| 10 | 127522 | Front cable | 1 |
| 11 | 10796401 | Split pin | 1 |
| 12 | 10519601 | Shim | 1 |
| 13 | 136414 | Rear cable - For LHD - From car no. 76627 | 1 |
| 13 | 127521 | Rear cable - For LHD - Until car no. 76626 | 1 |
| 13 | 139544 | Rear cable - For RHD - From car no. 76627 | 1 |
| 13 | 129114 | Rear cable - For RHD - Until car no. 76626 | 1 |
| 14 | 118552 | Anchorage for rear cable | 1 |
| 15 | 118553 | Cable retaining plate | 1 |
| 16 | 16102311 | Locknut | 2 |
| 17 | 104895 | Return spring | 1 |
| 18 | 101285 | Screw | 2 |
| 19 | 10418501 | Clamp | 3 |
| 19 | 10115701 | Clamp | 2 |
| 20 | 12575411 | Nut | 5 |
| 21 | 105735 | Fork protective cap - After exhaustion use no. 132129 | 2 |
| 22 | 106242 | Screw | 4 |
| 23 | 106243 | Small block | 2 |
| 24 | 101286 | Nut | 2 |
| 25 | 105270 | Control fork for inner lever | 2 |
| 26 | 101270 | Brake shoe - With Amianthus | 4 |
| 26 | 134847 | Brake shoe - Without Amianthu | 4 |
| 27 | 101275 | Pin for spring | 4 |
| 28 | 101276 | Return spring for shoes | 4 |
| 29 | 101277 | Spring | 4 |
| 30 | 101279 | Seat for sdjust screw | 2 |
| 31 | 101280 | Inner control lever | 2 |
| 32 | 101281 | Outer control lever | 2 |
| 33 | 101282 | Pin fixing fork to inner le | 2 |
| 34 | 101283 | Pin for joint | 2 |
| 35 | 101284 | Plate for spring | 4 |
