328 ABS Page 41 STEERING COLUMN
Product Description
328 ABS Page 41 STEERING COLUMN
Click on part number below to order. If unable to click on part number please fill out and submit Parts Request Form below to order.

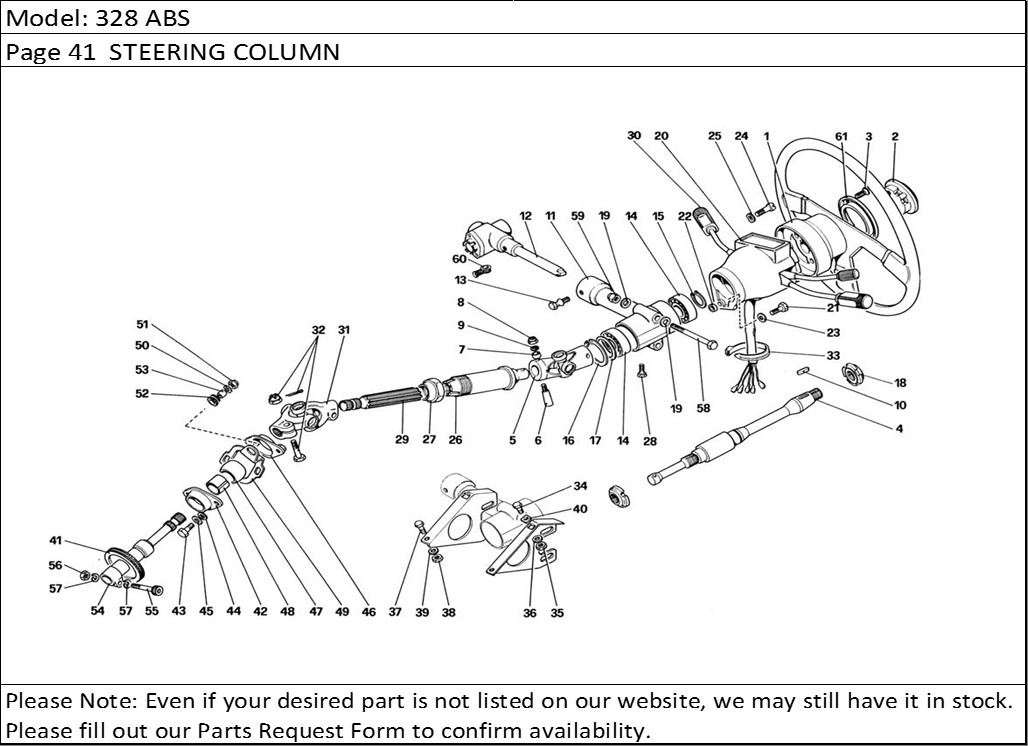

| Location in Parts Diagram | Part # | Description | Quantity Used |
|---|---|---|---|
| 1 | 119023 | Steering wheel complete - After exhaustion use no. 130912 | 1 |
| 1 | 130912 | Steering wheel complete - After exhaustion use no. 136549 | 1 |
| 3 | 111189 | Screw | 6 |
| 4 | 108413 | Upper steering shaft | 1 |
| 5 | 112572 | Universal joint | 1 |
| 6 | 112573 | Pin | 2 |
| 7 | 112571 | Spacer | 2 |
| 8 | 12574221 | Nut | 2 |
| 9 | 10519401 | Washer | 2 |
| 10 | 101106 | Key | 1 |
| 11 | 106611 | Mounting, steering column and anti-theft device | 1 |
| 12 | 127279 | Anti-theft device - Not for US - SA - J - Until car no. 76626 | 1 |
| 12 | 127298 | Anti-theft device - From car no. 76627 | 1 |
| 12 | 127298 | Anti-theft device - For US - SA - J | 1 |
| 13 | 106615 | Screw | 1 |
| 14 | 101104 | Bearing | 2 |
| 15 | 11067376 | Seeger ring | 1 |
| 16 | 11060576 | Seeger ring | 1 |
| 17 | 107488 | Ditto, thickness 0,4 mm. - Possible fitting | 1 |
| 17 | 101101 | Ditto, thickness 0,5 mm. - Possible fitting | 1 |
| 17 | 107489 | Ditto, thickness 0,3 mm. - Possible fitting | 1 |
| 17 | 107490 | Shim, thickness 0,2 mm. - Possible fitting | 1 |
| 18 | 106610 | Ring nut | 2 |
| 19 | 10519621 | Washer | 4 |
| 20 | 120429 | Main swith housing | 1 |
| 21 | 10902221 | Screw | 1 |
| 22 | 12639701 | Spacer | 1 |
| 23 | 12601271 | Washer | 1 |
| 24 | 10389901 | Screw | 2 |
| 25 | 12544171 | Washer | 2 |
| 26 | 117379 | Guide tube | 1 |
| 27 | 106870 | Nut | 1 |
| 28 | 10979421 | Screw | 1 |
| 29 | 108737 | Lower steering shaft | 1 |
| 30 | 61838400 | Mainswitch | 1 |
| 31 | 103343 | Universal joint | 1 |
| 32 | 105032 | Fixing items for joint | 1 |
| 33 | 103755 | Clamp | 1 |
| 34 | 10902121 | Screw | 2 |
| 35 | 15896211 | Nut | 2 |
| 36 | 106850 | Washer | 2 |
| 37 | 16043221 | Screw | 2 |
| 38 | 16100811 | Nut | 2 |
| 39 | 106852 | Washer | 2 |
| 40 | 106425 | Plate | 2 |
| 41 | 112466 | Guiding bush | 1 |
| 42 | 103292 | Lower flange | 1 |
| 43 | 10902321 | Screw | 2 |
| 44 | 106850 | Washer | 2 |
| 45 | 10519401 | Washer | 2 |
| 46 | 123683 | Upper flange | 1 |
| 47 | 103297 | Ball- | 1 |
| 48 | 103370 | Bush | 1 |
| 49 | 123682 | Mounting for joint | 1 |
| 50 | 12643701 | Washer | 2 |
| 51 | 12574211 | Nut | 2 |
| 52 | 103549 | Anti-vibration rubber | 2 |
| 53 | 103550 | Bush | 2 |
| 54 | 123905 | Pinion extension | 1 |
| 55 | 125518 | Screw | 1 |
| 56 | 125519 | Nut | 1 |
| 57 | 12601271 | Washer | 2 |
| 58 | 103576 | Bolt | 2 |
| 59 | 16104421 | Nut | 2 |
| 60 | 100285 | Cap - For US - SA - J and from car no. 76627 | 1 |
| 61 | 136507 | Ring for steering wheel | 1 |
| 32 | 82254300 | LH BRACKET | |
| 33 | 69129500 | ROLLER | |
| 1 | 9664 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Cadenino- -Leather- -Leather- -Valid | 1 |
| 1 | 9665 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Cadenino- -Leather- -Alcantara- stitching | 1 |
| 1 | 9690 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona + lining- -Leather- -Leather- | 1 |
| 1 | 9691 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona + lining- -Leather- -Alcantara- | 1 |
| 1 | 9666 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Daytona + lining- -Leather- -Leather- | 1 |
| 1 | 9667 | L.H. SEAT COMPLETE WITH GUDES -Easy entry- -Full OPT- -Daytona + lining- -Leather- -Alcantara- | 1 |
| 1 | 9692 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Logerzy- -Leather- -Leather- -Valid for | 1 |
| 1 | 9693 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Logerzy- -Leather- -Alcantara- -Valid for | 1 |
| 1 | 9668 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Logerzy- -Leather- -Leather- -Valid for | 1 |
| 1 | 9669 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Logerzy- -Leather- -Alcantara- -Valid | 1 |
| 1 | 9694 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Piping+Quilt- -Leather- -Leather- -Valid | 1 |
| 1 | 9695 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Piping+Quilt- -Leather- -Alcantara- -Valid | 1 |
| 1 | 9670 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Piping+Quilt- -Leather- -Leather- -Valid for USA and CDN- -For vehicles up to Ass. No. 86008 with seat with back panel without | 1 |
| 1 | 9671 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Piping+Quilt- -Leather- -Alcantara- | 1 |
| 1 | 9696 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Carbon- -Leather- -Leather- -Valid for | 1 |
| 1 | 9697 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Carbon- -Leather- -Alcantara- -Valid for | 1 |
| 1 | 9672 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Carbon- -Leather- -Leather- -Valid for | 1 |
| 1 | 9673 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Carbon- -Leather- -Alcantara- -Valid for | 1 |
| 1 | 9698 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona- -Carbon- -Leather- -Leather- | 1 |
| 1 | 9699 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona- -Carbon- -Leather- -Alcantara- | 1 |
| 1 | 9674 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Daytona- -Carbon- -Leather- | 1 |
| 1 | 9675 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Daytona- -Carbon- -Leather- | 1 |
| 1 | 9700 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Cadenino- -Carbon- -Leather- -Leather- | 1 |
| 1 | 9701 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Cadenino- -Carbon- -Leather- | 1 |
| 1 | 9676 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Cadenino- -Carbon- -Leather- -Leather--Valid for USA and CDN- -For vehicles up to Ass. No. 86008 with seat with back panel | 1 |
| 1 | 9677 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Cadenino- -Carbon- -Leather- | 1 |
| 1 | 9702 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona + lining- -Carbon- -Leather- | 1 |
| 1 | 9703 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona + lining- -Carbon- -Leather- | 1 |
| 1 | 9678 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Daytona + lining- -Carbon- -Leather- | 1 |
| 1 | 9679 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Daytona + lining- -Carbon- -Leather- | 1 |
| 1 | 9704 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Lozengy- -Carbon- -Leather- -Leather- | 1 |
| 1 | 9705 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Lozengy- -Carbon- -Leather- -Alcantara- stitching | 1 |
| 1 | 9680 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Lozengy- -Carbon- -Leather- | 1 |
| 1 | 9681 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Lozengy- -Carbon- -Leather- | 1 |
| 1 | 9706 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Piping + Quilt- -Carbon- -Leather- | 1 |
| 1 | 9707 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Piping + Quilt- -Carbon- -Leather- | 1 |
| 1 | 9682 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Piping + Quilt- -Carbon- -Leather- | 1 |
| 1 | 9683 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Piping + Quilt- -Carbon- -Leather- | 1 |
