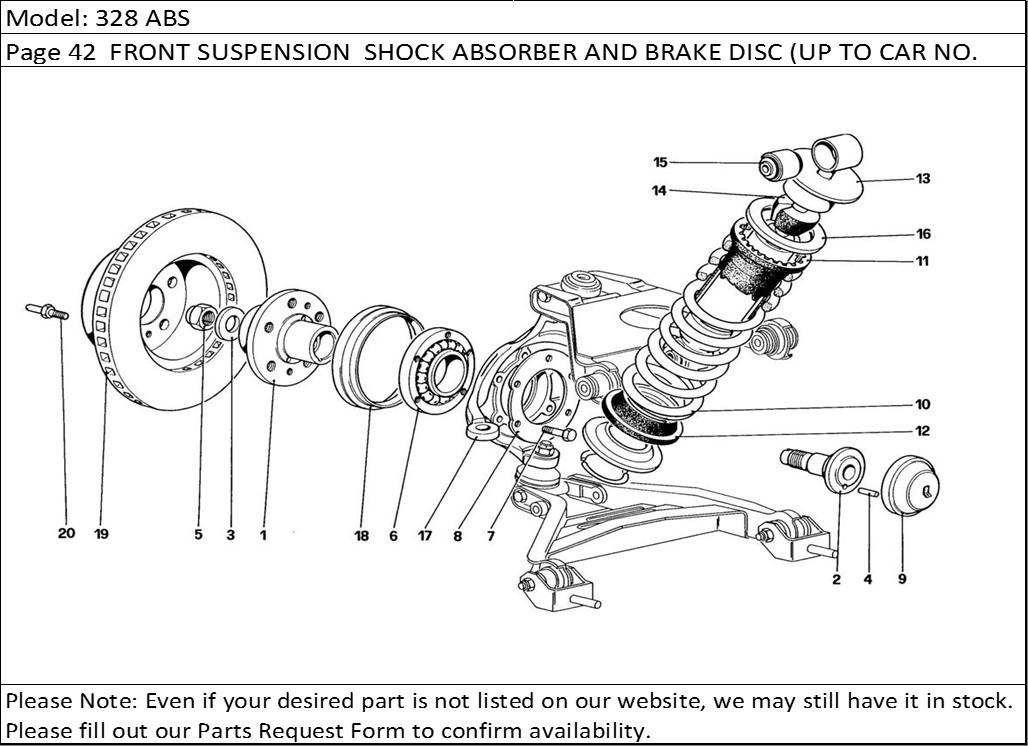

328 ABS Page 42 FRONT SUSPENSION SHOCK ABSORBER AND BRAKE DISC (UP TO CAR NO. 76625)
Product Description
328 ABS Page 42 FRONT SUSPENSION SHOCK ABSORBER AND BRAKE DISC (UP TO CAR NO. 76625)
Click on part number below to order. If unable to click on part number please fill out and submit Parts Request Form below to order.
| Location in Parts Diagram | Part # | Description | Quantity Used |
|---|---|---|---|
| 1 | 125672 | Front wheel hub | 2 |
| 2 | 124465 | Stay bolt for bearing | 2 |
| 4 | 13909870 | Pin | 2 |
| 5 | 124642 | Nut | 2 |
| 6 | 112799 | Bearing | 2 |
| 7 | 14238731 | Screw | 12 |
| 8 | 118522 | Washer | 2 |
| 9 | 117171 | Bearing cover | 2 |
| 10 | 113516 | Suspension spring - For US | 2 |
| 10 | 110784 | Suspension spring - Not for US Until to | 2 |
| 10 | 133176 | Suspension spring -Not for US Starting from | 2 |
| 11 | 105223 | Upper spacer | 2 |
| 12 | 103264 | Lower spacer | 2 |
| 13 | 130939 | Shock absorber - After exhaustion - Until to | 2 |
| 13 | 133177 | Shock absorber - Starting from | 2 |
| 13 | 128177 | Shock absorber - Until exhaustion | 2 |
| 14 | 104414 | Pad - No spare | 2 |
| 15 | 100809 | Estendblock | 4 |
| 16 | 128380 | Spacer - Not for US - Only for spring no. 110784 | 2 |
| 16 | 129435 | Spacer - For US | 2 |
| 17 | 125711 | Stud axle right | 1 |
| 17 | 125712 | Stud axle left | 1 |
| 18 | 125714 | Bearing cover | 2 |
| 19 | 125671 | Brake disc, front | 2 |
| 20 | 104370 | Centering screw | 4 |
