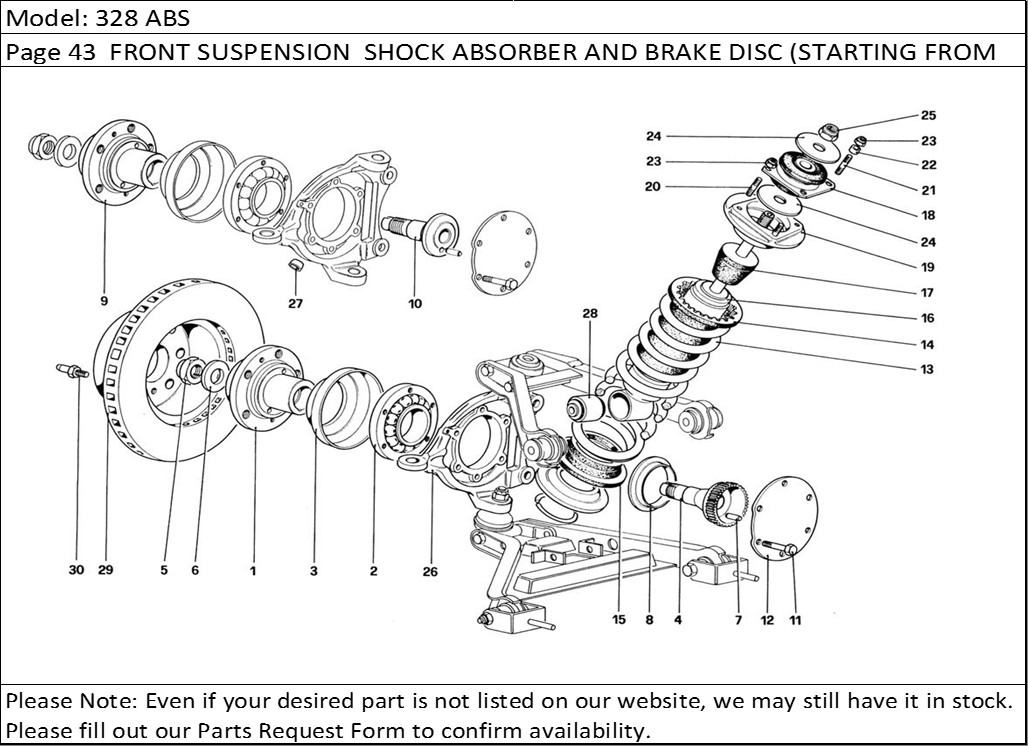

328 ABS Page 43 FRONT SUSPENSION SHOCK ABSORBER AND BRAKE DISC (STARTING FROM CAR NO. 76626)
Product Description
328 ABS Page 43 FRONT SUSPENSION SHOCK ABSORBER AND BRAKE DISC (STARTING FROM CAR NO. 76626)
Click on part number below to order. If unable to click on part number please fill out and submit Parts Request Form below to order.
| Location in Parts Diagram | Part # | Description | Quantity Used |
|---|---|---|---|
| 1 | 131738 | (A) Front wheel hub | 2 |
| 2 | 112799 | Bearing | 2 |
| 3 | 112823 | Bearing cover | 2 |
| 4 | 138426 | Stay bolt toothed wheel | 2 |
| 5 | 124642 | Nut | 2 |
| 6 | 124464 | Washer | 2 |
| 7 | 13909870 | Pin | 2 |
| 8 | 131279 | Protection ring | 2 |
| 9 | 124463 | (B) Front wheel hub | 2 |
| 10 | 124465 | (B) Stay bolt for bearing | 2 |
| 11 | 14238931 | Screw | 12 |
| 12 | 131278 | Cover | 2 |
| 13 | 133157 | Suspension spring | 2 |
| 14 | 113582 | Upper spacer | 2 |
| 15 | 113581 | Inner spacer | 2 |
| 16 | 138897 | Plate for shock absorber - With shock absorber no. 138263 | 2 |
| 16 | 138263 | Shock absorber - Starting from car no. 78613 | 2 |
| 16 | 138898 | Seeger ring - With shock absorber no. 138263 | 2 |
| 16 | 136884 | Shock absorber - Up to car no. 78612 | 2 |
| 17 | 138435 | Pad - With shock absorber no. 138263 | 2 |
| 17 | 130936 | Pad - With shock absorber no. 136884 | 2 |
| 18 | 114812 | Hyperblock | 2 |
| 19 | 114809 | Cup, spring retainer | 2 |
| 20 | 13543321 | Stud | 4 |
| 21 | 13543821 | Stud | 4 |
| 22 | 13606011 | Spacer | 4 |
| 23 | 16104121 | Nut | 8 |
| 24 | 114815 | Washer | 4 |
| 25 | 16105121 | Nut | 2 |
| 26 | 130057 | Stub axle, left | 1 |
| 26 | 130056 | Stub axle, right | 1 |
| 27 | 14328601 | (B) Plug | 2 |
| 28 | 100809 | Estendblock - For shock absorber no. 136884 | 2 |
| 28 | 130516 | Estendblock - For shock absorber no. 138263 | 2 |
| 29 | 117185 | Brake disc | 2 |
| 30 | 104370 | Centering screw | 4 |
