328 ABS Page 45 FRONT SUSPENSION WISHBONES (STARTING FROM CAR NO. 76626)
Product Description

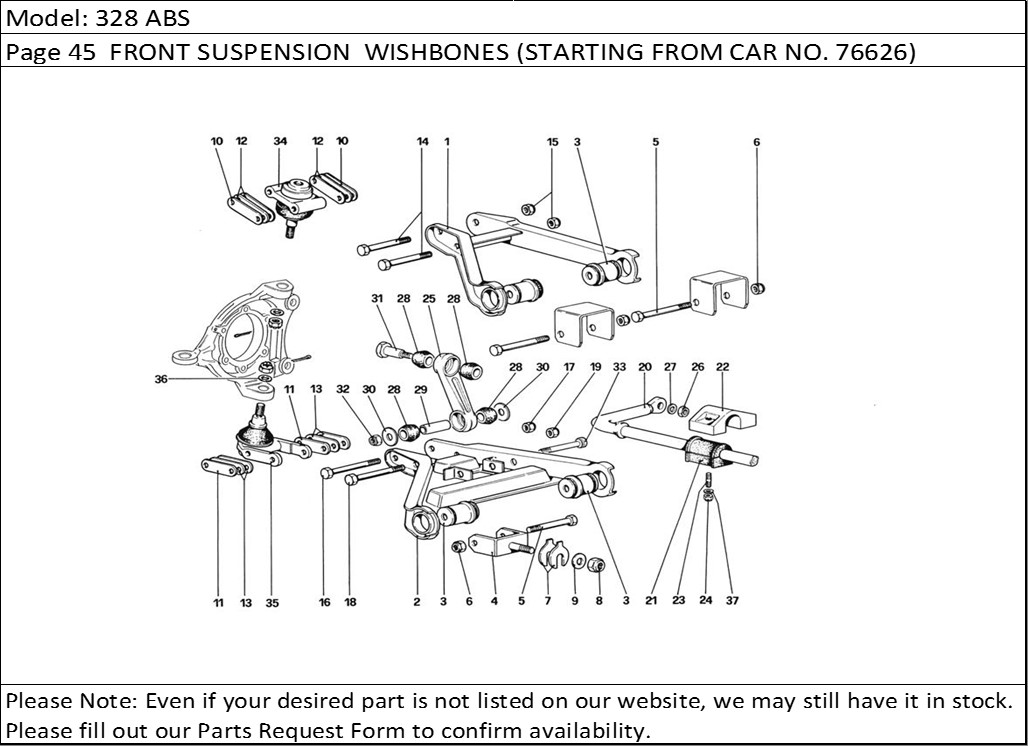

328 ABS Page 45 FRONT SUSPENSION WISHBONES (STARTING FROM CAR NO. 76626)
Click on part number below to order. If unable to click on part number please fill out and submit Parts Request Form below to order.
| Location in Parts Diagram | Part # | Description | Quantity Used |
|---|---|---|---|
| 1 | 131901 | Upper lever, left | 1 |
| 1 | 131900 | Upper lever, right | 1 |
| 2 | 115706 | Lower lever, right | 1 |
| 3 | 104398 | Flamblock for levers | 8 |
| 4 | 112807 | Lower fork | 4 |
| 5 | 106419 | Bolt | 8 |
| 6 | 16105121 | Nut | 8 |
| 7 | 107418 | Ditto, thickness 1,5 mm. | 8 |
| 7 | 107419 | Ditto, thickness 2 mm. | 8 |
| 7 | 107420 | Ditto, thickness 2,5 mm. | 8 |
| 7 | 107422 | Ditto, thickness 3,25 mm. | 8 |
| 7 | 107025 | Shim for lower fork, thickness 1 mm.(possible fitting) | 8 |
| 7 | 107421 | Ditto, thickness 3 mm. | 8 |
| 8 | 12575821 | Nut | 4 |
| 9 | 101041 | Washer | 4 |
| 10 | 115072 | Upper adjusting plate for caster angle (possible fitting) | 8 |
| 11 | 115073 | Lower adjusting plate for caster angle (possible fitting) | 8 |
| 12 | 103256 | Upper adjusting plate | 8 |
| 13 | 101022 | Lower adjusting plate | 8 |
| 14 | 15971621 | Bolt | 4 |
| 15 | 12574521 | Nut | 4 |
| 16 | 15971621 | Bolt | 2 |
| 17 | 12574521 | Nut | 2 |
| 18 | 15541531 | Bolt | 2 |
| 19 | 16105121 | Nut | 2 |
| 20 | 136166 | Stabilizer rod - Not for RHD | 1 |
| 20 | 139547 | Stabilizer rod - For RHD | 1 |
| 21 | 130533 | Pad | 2 |
| 22 | 130532 | Support | 2 |
| 23 | 13516821 | Stud | 4 |
| 24 | 16104411 | Nut | 4 |
| 25 | 114691 | Rod link | 2 |
| 26 | 16103621 | Nut | 2 |
| 27 | 106854 | Washer | 2 |
| 28 | 100984 | Grommet for rod | 8 |
| 29 | 100985 | Spacer tube | 2 |
| 30 | 105334 | Washer | 4 |
| 31 | 121679 | Pin | 2 |
| 32 | 16105121 | Nut | 2 |
| 33 | 116966 | Screw | 2 |
| 34 | 116280 | Upper ball joint | 2 |
| 35 | 133944 | Lower ball joint | 2 |
| 36 | 101445 | Washer | 2 |
| 37 | 102683 | Washer | 4 |
