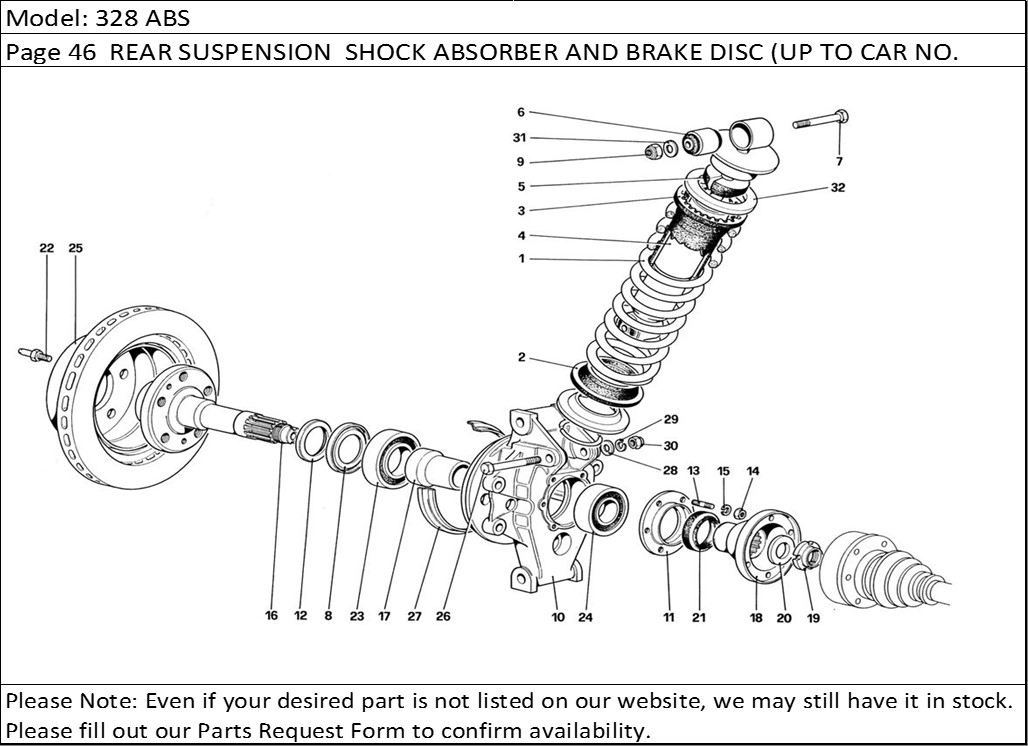

328 ABS Page 46 REAR SUSPENSION SHOCK ABSORBER AND BRAKE DISC (UP TO CAR NO. 76625)
Product Description
328 ABS Page 46 REAR SUSPENSION SHOCK ABSORBER AND BRAKE DISC (UP TO CAR NO. 76625)
Click on part number below to order. If unable to click on part number please fill out and submit Parts Request Form below to order.
| Location in Parts Diagram | Part # | Description | Quantity Used |
|---|---|---|---|
| 1 | 112971 | Suspension spring | 2 |
| 2 | 103264 | Lower spacer | 2 |
| 4 | 128178 | Shock absorber | 2 |
| 5 | 104442 | PadNo spare | 2 |
| 6 | 100809 | Estendblock | 4 |
| 7 | 127849 | Bolt | 2 |
| 8 | 124966 | Centrifugal ring | 2 |
| 9 | 16105121 | Nut | 2 |
| 10 | 129819 | Hub holder | 2 |
| 11 | 125976 | Flange for bearing | 2 |
| 12 | 124965 | Spacer | 2 |
| 13 | 13543321 | Stud | 12 |
| 14 | 16100821 | Nut | 12 |
| 15 | 106852 | Washer | 12 |
| 16 | 124964 | Shaft with rear hub | 2 |
| 17 | 120876 | Spacer | 2 |
| 18 | 119372 | Flange connecting axle shafts | 2 |
| 19 | 102289 | Ring nut | 2 |
| 20 | 105511 | Washer | 2 |
| 21 | 115968 | Sealing ring | 2 |
| 22 | 104370 | Centering screw | 4 |
| 23 | 125935 | Outer bearing | 2 |
| 24 | 125934 | Inner bearing | 2 |
| 25 | 117186 | Brake disc | 2 |
| 26 | 106290 | Bolt | 2 |
| 27 | 103117 | Splash guard | 2 |
| 28 | 106616 | Washer | 2 |
| 29 | 106854 | Washer | 2 |
| 30 | 16103621 | Nut | 2 |
| 31 | 106616 | Washer | 2 |
| 32 | 129435 | Spacer - For US GTS | 2 |
