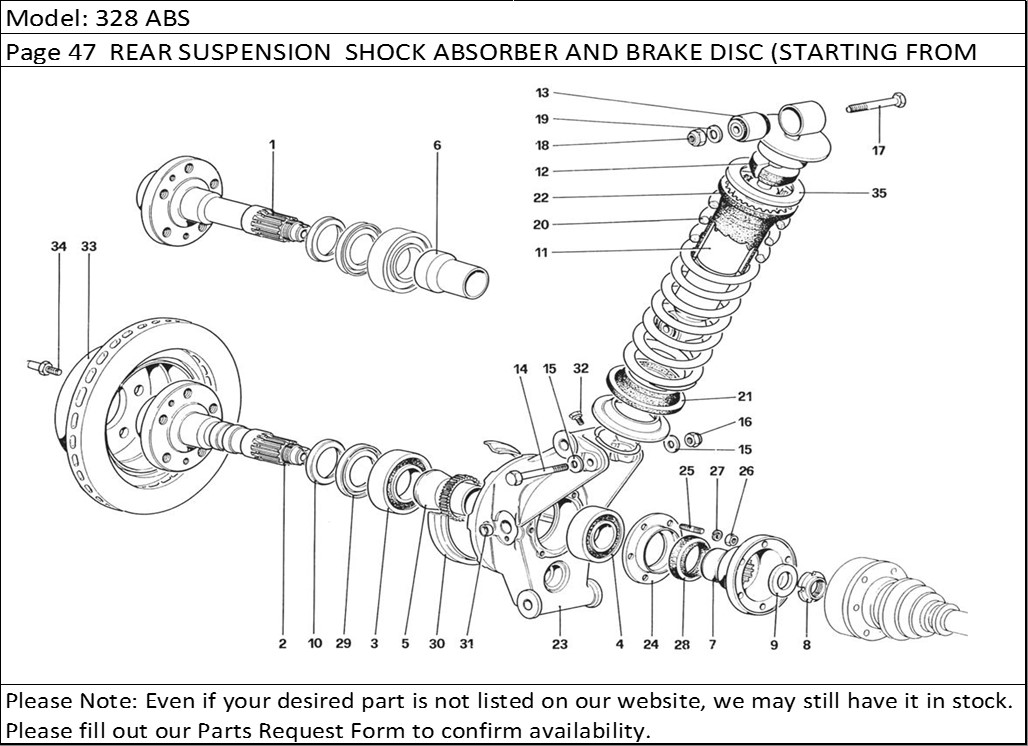

328 ABS Page 47 REAR SUSPENSION SHOCK ABSORBER AND BRAKE DISC (STARTING FROM CAR NO. 76626)
Product Description
328 ABS Page 47 REAR SUSPENSION SHOCK ABSORBER AND BRAKE DISC (STARTING FROM CAR NO. 76626)
Click on part number below to order. If unable to click on part number please fill out and submit Parts Request Form below to order.
| Location in Parts Diagram | Part # | Description | Quantity Used |
|---|---|---|---|
| 1 | 124964 | (B) Shaft with rear hub | 2 |
| 2 | 132408 | (A) Shaft with rear hub | 2 |
| 4 | 125934 | Inner bearing | 2 |
| 5 | 136308 | (A) Spacer with toothed wheel | 2 |
| 6 | 120876 | (B) Spacer | 2 |
| 7 | 119372 | Flange connecting axle shafts | 2 |
| 8 | 102289 | Ring nut | 2 |
| 9 | 105511 | Washer | 2 |
| 10 | 124965 | Spacer | 2 |
| 11 | 130729 | Shock absorber - Up to car no. 78612 | 2 |
| 11 | 138264 | Shoch absorber - Staring from car no. 78613 | 2 |
| 11 | 138898 | Seeger ring - with shock absorber no. 138264 | 2 |
| 11 | 138897 | Plate for shock absorber with shock absorber no. 138264 | 2 |
| 12 | 138435 | Pad - With shock absorber no. 138264 | 2 |
| 12 | 104442 | Pad - With shock absorber no. 130729 | 2 |
| 13 | 130516 | Estendblock | 4 |
| 14 | 112441 | Screw | 2 |
| 15 | 106616 | Washer | 4 |
| 16 | 16105121 | Selflocking nut | 2 |
| 17 | 106419 | Screw | 2 |
| 18 | 16105121 | Selflocking nut | 2 |
| 19 | 13550521 | Washer | 2 |
| 20 | 113516 | Suspension spring | 2 |
| 21 | 103264 | Lower spacer | 2 |
| 22 | 103263 | Upper spacer | 2 |
| 23 | 130310 | Hub holder, (left) | 2 |
| 23 | 130309 | Hub holder, (right) | 2 |
| 24 | 125976 | Flange for bearing | 2 |
| 25 | 13543321 | Stud | 12 |
| 26 | 16100811 | Nut | 12 |
| 27 | 127496 | Washer | 12 |
| 28 | 115968 | Sealing ring | 2 |
| 29 | 124966 | Centrifugal ring | 2 |
| 30 | 103117 | Splash guard | 2 |
| 31 | 14328601 | (B) Plug | 2 |
| 32 | 10979421 | (B) Screw | 2 |
| 33 | 117186 | Brake disc | 2 |
| 34 | 104370 | Centering screw | 4 |
| 35 | 129435 | Spacer - For US-CH-SA | 2 |
