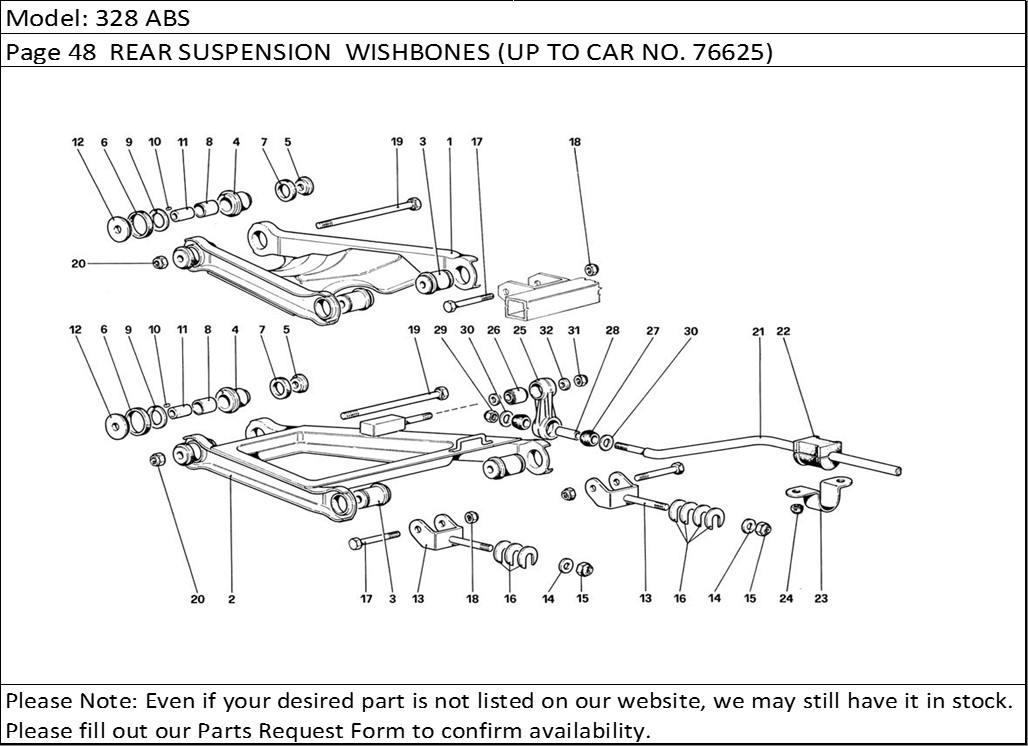

328 ABS Page 48 REAR SUSPENSION WISHBONES (UP TO CAR NO. 76625)
Product Description
328 ABS Page 48 REAR SUSPENSION WISHBONES (UP TO CAR NO. 76625)
Click on part number below to order. If unable to click on part number please fill out and submit Parts Request Form below to order.
| Location in Parts Diagram | Part # | Description | Quantity Used |
|---|---|---|---|
| 1 | 104422 | Upper lever, left | 1 |
| 1 | 104423 | Upper lever, right | 1 |
| 2 | 129218 | Lower lever, right - For RHD | 1 |
| 2 | 127868 | Lower lever, right - For LHD | 1 |
| 3 | 103170 | Bushing | 8 |
| 4 | 105340 | Outer bushing | 8 |
| 5 | 105341 | Sealing washer for bushing | 8 |
| 6 | 105342 | Grommet | 8 |
| 7 | 105343 | Grommet | 8 |
| 8 | 100787 | Bushing | 8 |
| 9 | 101009 | Thrust washer | 8 |
| 10 | 100796 | Dowel | 8 |
| 11 | 109905 | Spacer | 8 |
| 12 | 109902 | Shim | 8 |
| 13 | 114236 | Lower fork | 4 |
| 14 | 101041 | Washer | 4 |
| 15 | 12575821 | Nut | 4 |
| 16 | 107339 | Ditto, thickness 2 mm. | 14 |
| 16 | 101039 | Ditto, thickness 1 mm. | 14 |
| 16 | 107341 | Ditto, thickness 3 mm. | 14 |
| 16 | 107338 | Ditto, thickness 1,5 mm. | 14 |
| 16 | 107340 | Shim for lower fork, thickness 2,5 mm. (possible fitting) | 14 |
| 16 | 107342 | Ditto, thickness 3,25 mm. | 14 |
| 17 | 106419 | Bolt | 8 |
| 18 | 16105121 | Nut | 8 |
| 19 | 105344 | Bolt | 4 |
| 20 | 16105121 | Nut | 4 |
| 21 | 108841 | Stabilizer rod | 1 |
| 22 | 109010 | Pad for rod | 2 |
| 23 | 104417 | Rod retainer | 2 |
| 24 | 12575621 | Nut | 4 |
| 25 | 108432 | Rod link | 2 |
| 26 | 100773 | Silentblok for link | 2 |
| 27 | 108244 | Grommet | 4 |
| 28 | 108294 | Spacer tube | 2 |
| 29 | 16104421 | Nut | 2 |
| 30 | 107409 | Washer | 4 |
| 31 | 16105121 | Nut | 2 |
| 32 | 108913 | Shim | 4 |
