328 ABS Page 52 ENGINE IGNITION
Product Description
328 ABS Page 52 ENGINE IGNITION
Click on part number below to order. If unable to click on part number please fill out and submit Parts Request Form below to order.

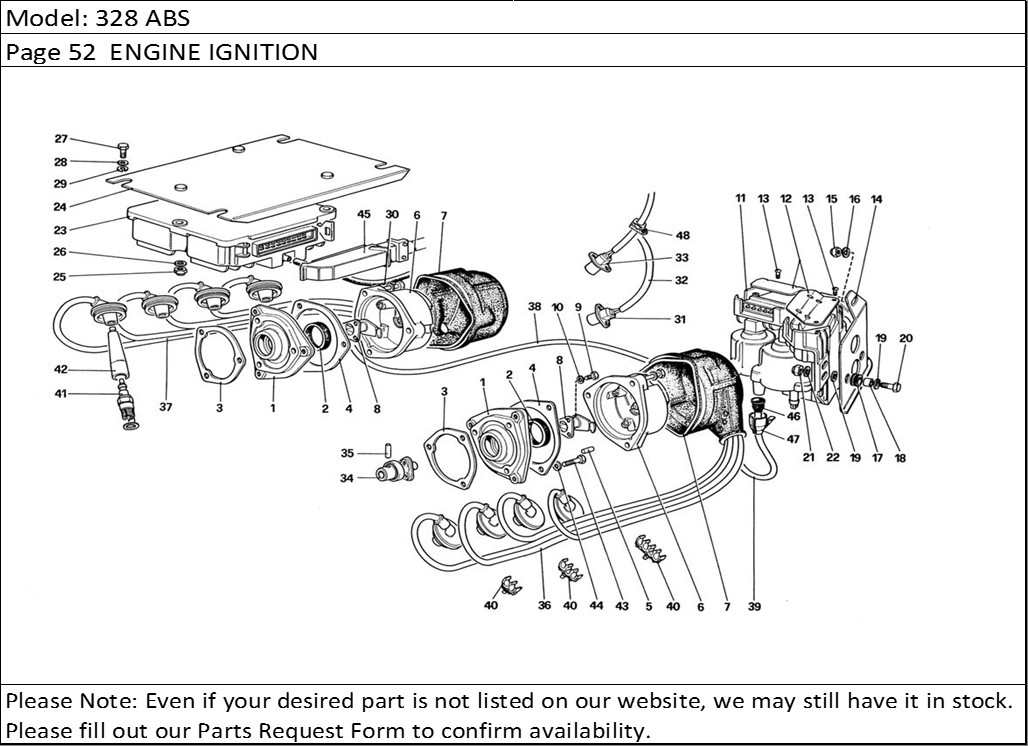

| Location in Parts Diagram | Part # | Description | Quantity Used |
|---|---|---|---|
| - | HT021 | Complete HT Leads Set | 1 |
| 1 | 133100 | Cap distributor support | 2 |
| 2 | 132453 | DISTRIBUTOR OIL SEAL | 2 |
| 3 | 134956 | Gasket - For C8 | 2 |
| 3 | 117261 | Gasket - Not for C8 | 2 |
| 4 | 119409 | Gasket | 2 |
| 5 | 10331111 | Dowel | 2 |
| 6 | 115518 | Distributor cap | 2 |
| 7 | 118889 | Distributor boot | 2 |
| 8 | 126139 | Rotor arm | 2 |
| 9 | 10444521 | Screw | 6 |
| 10 | 12544071 | Washer | 6 |
| 11 | 127134 | Power module with coil - After exhaustion use no. 124273 | 2 |
| 12 | 128169 | Protection | 2 |
| 13 | 15921807 | Screw | 4 |
| 14 | 127136 | Coil support | 1 |
| 14 | 136940 | Coil support | 1 |
| 15 | 12574211 | Nut | 2 |
| 16 | 14496401 | Washer | 2 |
| 17 | 103549 | Bush vibration damping | 4 |
| 18 | 103550 | Spacer | 4 |
| 19 | 12643701 | Washer | 8 |
| 20 | 10903021 | Screw | 1 |
| 20 | 10902821 | Screw | 3 |
| 21 | 12574211 | Nut | 4 |
| 22 | 14496401 | Washer | 4 |
| 23 | 127422 | Electronic ignition module | 1 |
| 24 | 127918 | Plate - For US and C8 | 1 |
| 24 | 127138 | Plate - Not for US and C8 | 1 |
| 25 | 12574211 | Nut | 3 |
| 26 | 14496401 | Washer | 3 |
| 27 | 10902021 | Screw | 4 |
| 28 | 12643701 | Washer | 4 |
| 29 | 106850 | Washer | 4 |
| 30 | 129969 | Pipe | 1 |
| 31 | 128364 | TDC sensor | 1 |
| 32 | 128365 | Black pipe | 1 |
| 33 | 119052 | Angular speed sensor | 1 |
| 34 | 126166 | Coupling - After exhaustion use no. 133063 | 2 |
| 35 | 132355 | Pin | 2 |
| 36 | 118826 | Cables, left spark plugs | 1 |
| 37 | 118827 | Cables, right spark plugs | 1 |
| 38 | 119356 | Cable coil right distributor | 1 |
| 39 | 128166 | Cable coil left distributor | 1 |
| 40 | 121788 | Small clip for cable support | 4 |
| 40 | 121789 | Small clip for cable support | 2 |
| 40 | 121790 | Small clip for cable support | 2 |
| 41 | 131121 | Spark plug (CHAMPION) In alternative | 8 |
| 41 | 130965 | Spark plug (BOSCH) In alternative | 8 |
| 41 | 124274 | Spark plug (CHAMPION) After exhausiton use no. 131922 | 8 |
| 42 | 126699 | Extension | 8 |
| 42 | 138261 | Extension - For US and CH | 8 |
| 43 | 10902321 | Screw | 2 |
| 44 | 11197771 | Washer | 2 |
| 45 | 61916900 | 25 way connector | 1 |
| 46 | 122970 | Cover | 2 |
| 47 | 129620 | Cover protection | 2 |
| 48 | 129544 | Clamp - From car no. 63027 | 1 |
