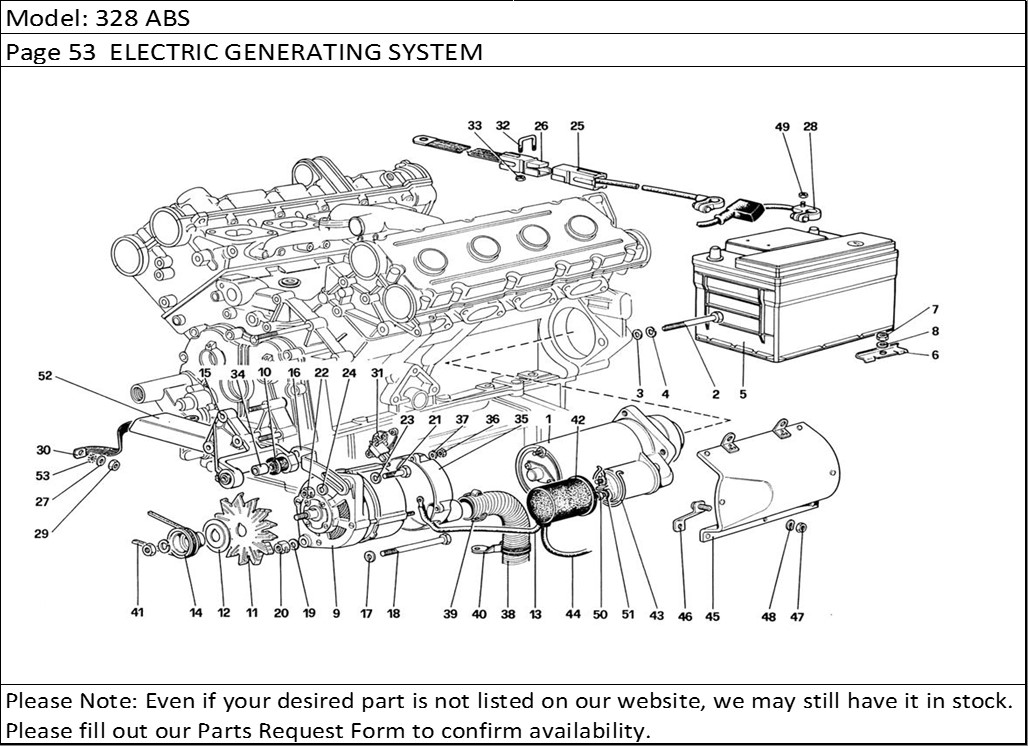

328 ABS Page 53 ELECTRIC GENERATING SYSTEM
Product Description
328 ABS Page 53 ELECTRIC GENERATING SYSTEM
Click on part number below to order. If unable to click on part number please fill out and submit Parts Request Form below to order.
| Location in Parts Diagram | Part # | Description | Quantity Used |
|---|---|---|---|
| 1 | 120967 | Starter motor (BOSCH) | 1 |
| 2 | 16045121 | Fixing bolt | 3 |
| 4 | 10519621 | Washer | 3 |
| 5 | 118060 | Battery 1 2V 66AH 300A - In alternative use no. 61933900 | 1 |
| 6 | 106525 | Bracket | 1 |
| 7 | 16100811 | Nut | 1 |
| 8 | 106852 | Washer | 1 |
| 9 | 121761 | Alternator BOSCH 85A | 1 |
| 10 | 117969 | Elastic bush | 2 |
| 11 | 118802 | Fan | 1 |
| 12 | 114305 | Washer | 1 |
| 13 | 121188 | Generator connecting cables | 1 |
| 14 | 123708 | Pulley | 1 |
| 15 | 124655 | Support for alternator | 1 |
| 16 | 117937 | Plate for regulation | 1 |
| 17 | 13550421 | Washer | 1 |
| 18 | 15972921 | Bolt | 1 |
| 19 | 12601471 | Washer | 1 |
| 20 | 117702 | Nut | 1 |
| 21 | 11343821 | Screw | 1 |
| 22 | 117702 | Nut | 1 |
| 23 | 13550421 | Washer | 1 |
| 24 | 105391 | Washer | 1 |
| 25 | 115660 | Cable from battery to battery switch | 1 |
| 26 | 115667 | Copper braid from battery terminal to earth chassis | 1 |
| 27 | 10615671 | Washer | 1 |
| 28 | 61804100 | Cable from battery to starter motor | 1 |
| 29 | 16100821 | Nut | 1 |
| 30 | 115668 | Earth cable for engine | 1 |
| 31 | 121840 | Voltage regulator | 1 |
| 32 | 116591 | Fixing plate of cable for motor | 1 |
| 33 | 12574011 | Nut | 2 |
| 34 | 124678 | Nut | 1 |
| 35 | 121837 | Air conveyor | 1 |
| 36 | 15896421 | Nut | 4 |
| 37 | 12601171 | Washer | 4 |
| 38 | 121190 | Pipe | 1 |
| 39 | 12180090 | Clamp | 1 |
| 40 | 121839 | Clamp | 1 |
| 41 | 123709 | Alternator control belt - After exhaustion use no. 130493 | 1 |
| 42 | 113990 | Cover protection | 1 |
| 43 | 14560287 | Ring | 1 |
| 44 | 61912600 | Cable to starter motor from engine connector | 1 |
| 45 | 107038 | Shield panel - Not for US - CH and SA | 1 |
| 46 | 107039 | Bracket - Not for US- CH and SA | 1 |
| 47 | 15896211 | Nut - Not for US - CH and SA | 1 |
| 48 | 12643701 | Washer - Not for US - CH and SA | 1 |
| 49 | 16104411 | Nut | 1 |
| 50 | 16100811 | Nut | 1 |
| 51 | 10516670 | Washer | 1 |
| 52 | 108304 | Shield panel - For US - CH and SA | 1 |
| 53 | 10615479 | Washer | 2 |
