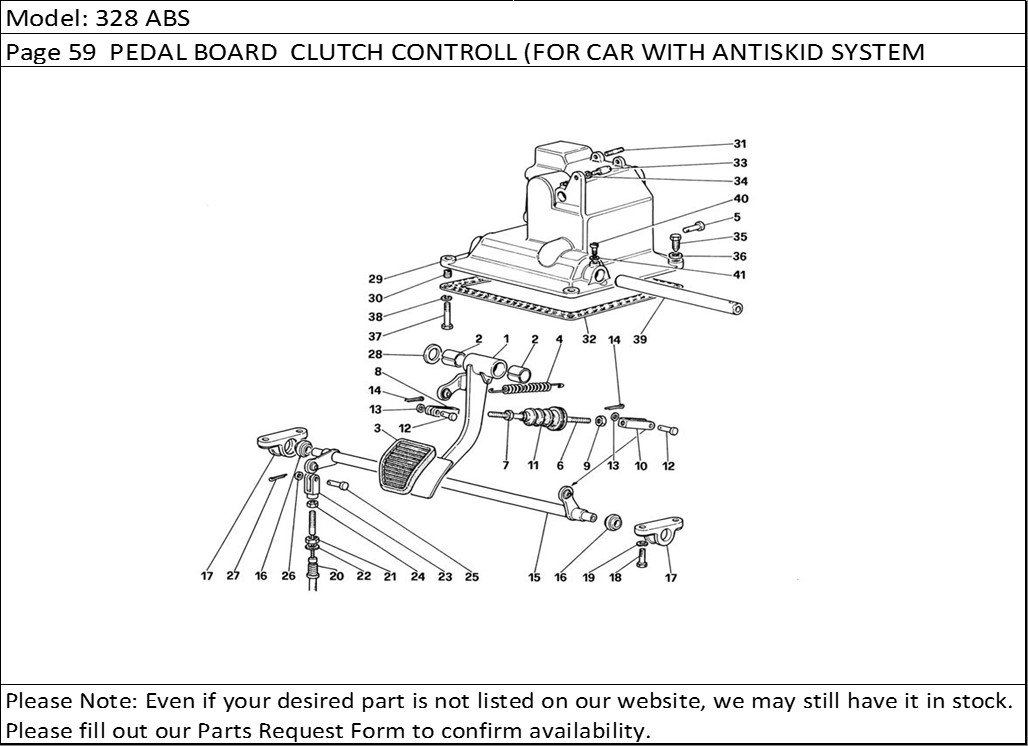

328 ABS Page 59 PEDAL BOARD CLUTCH CONTROLL (FOR CAR WITH ANTISKID SYSTEM VARIANTS FOR RHD VERSION)
Product Description
328 ABS Page 59 PEDAL BOARD CLUTCH CONTROLL (FOR CAR WITH ANTISKID SYSTEM VARIANTS FOR RHD VERSION)
Click on part number below to order. If unable to click on part number please fill out and submit Parts Request Form below to order.
| Location in Parts Diagram | Part # | Description | Quantity Used |
|---|---|---|---|
| 1 | 136786 | Clutch pedal | 1 |
| 2 | 103163 | Bush | 2 |
| 3 | 132818 | Pedal cover | 1 |
| 4 | 117374 | Return spring | 1 |
| 5 | 129612 | Pin | 1 |
| 6 | 16102311 | NutRight thread | 1 |
| 6 | 108343 | Tie rod | 1 |
| 7 | 106594 | ForkRight thread | 1 |
| 8 | 16102311 | Nut | 1 |
| 9 | 106901 | Fork | 1 |
| 10 | 106120 | Bellows | 1 |
| 11 | 10004910 | Pin | 2 |
| 12 | 12639701 | Washer | 2 |
| 13 | 10734201 | Split pin | 2 |
| 14 | 136788 | Return camshaft | 1 |
| 15 | 106102 | Ball joint | 2 |
| 16 | 136791 | Support | 2 |
| 17 | 16043621 | Screw | 4 |
| 18 | 12601371 | Washer | 4 |
| 19 | 136794 | Clutch control cable | 1 |
| 21 | 16103611 | Nut | 1 |
| 22 | 12601571 | Washer | 1 |
| 23 | 108575 | Fork | 1 |
| 24 | 100861 | Nut | 1 |
| 25 | 103218 | Pin | 1 |
| 26 | 12639701 | Washer | 1 |
| 27 | 10734201 | Split pin | 1 |
| 28 | 106083 | Shim | 1 |
| 29 | 136878 | Pedal support | 1 |
| 30 | 13525770 | Heli - coil | 2 |
| 31 | 11500121 | Stud | 1 |
| 32 | 133848 | Gasket | 1 |
| 33 | 137144 | Pin | 1 |
| 34 | 106744 | Washer | 1 |
| 35 | 16139021 | Screw | 2 |
| 36 | 12601479 | Washer | 2 |
| 37 | 16043421 | Screw | 2 |
| 38 | 127496 | Washer | 2 |
| 39 | 129954 | Pin | 1 |
| 40 | 13276121 | Screw | 1 |
| 41 | 12601279 | Washer | 1 |
