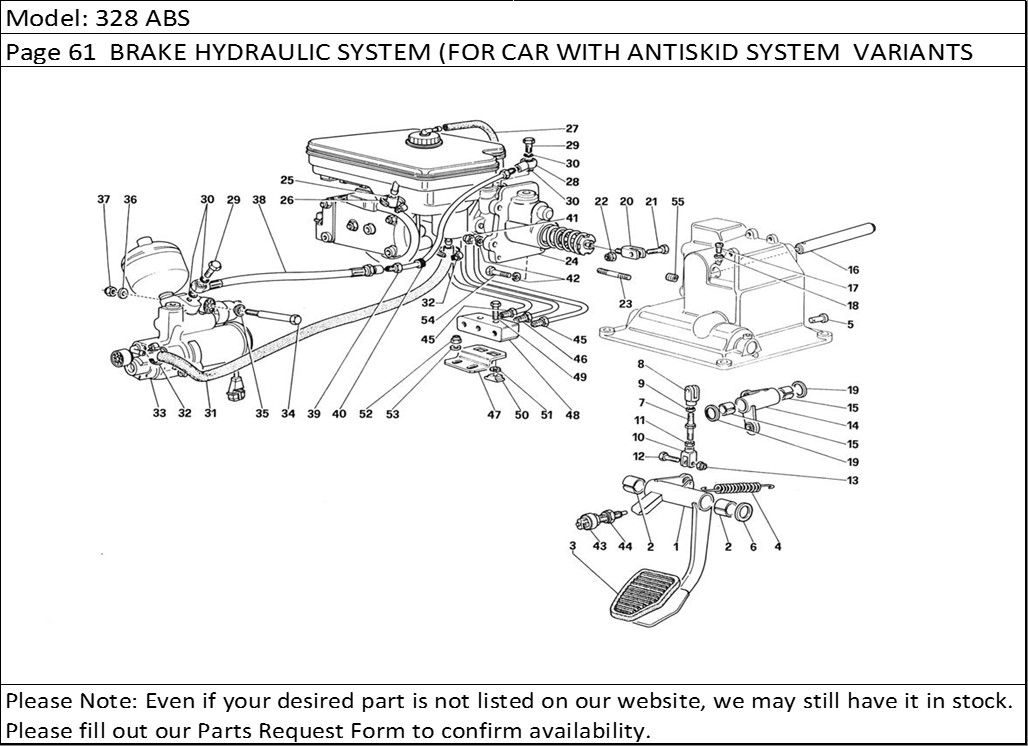

328 ABS Page 61 BRAKE HYDRAULIC SYSTEM (FOR CAR WITH ANTISKID SYSTEM VARIANTS FOR RHD VERSION)
Product Description
328 ABS Page 61 BRAKE HYDRAULIC SYSTEM (FOR CAR WITH ANTISKID SYSTEM VARIANTS FOR RHD VERSION)
Click on part number below to order. If unable to click on part number please fill out and submit Parts Request Form below to order.
| Location in Parts Diagram | Part # | Description | Quantity Used |
|---|---|---|---|
| 1 | 136764 | Brake pedal | 1 |
| 2 | 117812 | Bush | 2 |
| 3 | 132819 | Pedal cover | 1 |
| 4 | 104895 | Return spring | 1 |
| 5 | 129612 | Pin | 1 |
| 6 | 113836 | Shim, 1,4 mm. - possible fitting | 1 |
| 6 | 113835 | Shim, 1,3 mm. - Possible fitting | 1 |
| 6 | 113833 | Shim, 1,1 mm. - Possible fitting | 1 |
| 6 | 113834 | Shim, 1,2 mm. - Possible fitting | 1 |
| 6 | 106083 | Shim, 1 mm. - Possible fitting | 1 |
| 7 | 129950 | Adjusting | 1 |
| 8 | 10007871 | Fork | 1 |
| 9 | 16102311 | Nut | 1 |
| 10 | 11991971 | Fork | 1 |
| 11 | 16102911 | Nut | 1 |
| 12 | 130926 | Screw | 2 |
| 13 | 16104411 | Selflocking nut | 2 |
| 14 | 136937 | Lever | 1 |
| 15 | 106500 | Bush | 2 |
| 16 | 129955 | Pin | 1 |
| 17 | 13276121 | Screw | 1 |
| 18 | 12601279 | Washer | 1 |
| 19 | 112126 | Shim | 2 |
| 20 | 136793 | Fork | 1 |
| 21 | 130926 | Screw | 1 |
| 22 | 16104411 | Srelflocking nut | 1 |
| 23 | 13543421 | Stud | 4 |
| 24 | 137006 | Idraulic control unit | 1 |
| 25 | 136379 | Plug | 1 |
| 26 | 12179190 | Clamp | 1 |
| 27 | 105959 | Breather pipe | 1 |
| 28 | 136311 | Union | 1 |
| 29 | 131873 | Union | 2 |
| 30 | 131874 | Sealing ring | 4 |
| 31 | 139325 | Pipe | 1 |
| 32 | 12179190 | Clamp | 2 |
| 33 | 131324 | Master cylinder | 1 |
| 34 | 129636 | Screw | 1 |
| 35 | 130861 | Washer | 1 |
| 36 | 121558 | Washer | 1 |
| 37 | 12174211 | Selflocking nut | 1 |
| 38 | 136315 | Hose | 1 |
| 39 | 104469 | Pipe | 1 |
| 40 | 103549 | Fair lead | 1 |
| 41 | 16104111 | Seltlocking nut | 4 |
| 42 | 12601379 | Washer | 4 |
| 43 | 101663 | Switch for stop light | 1 |
| 44 | 10791211 | Nut | 1 |
| 45 | 106671 | PipeFront circuite | 2 |
| 46 | 137427 | PipeRear circuite | 1 |
| 47 | 138901 | Support | 1 |
| 48 | 136960 | Support plate | 1 |
| 49 | 10902821 | Screw | 2 |
| 50 | 60659100 | Nut | 2 |
| 51 | 12601279 | Washer | 2 |
| 52 | 12575411 | Selflocking nut | 2 |
| 53 | 12646601 | Washer | 2 |
| 54 | 16043621 | Screw | 1 |
| 55 | 13525770 | Heli - coil | 1 |
