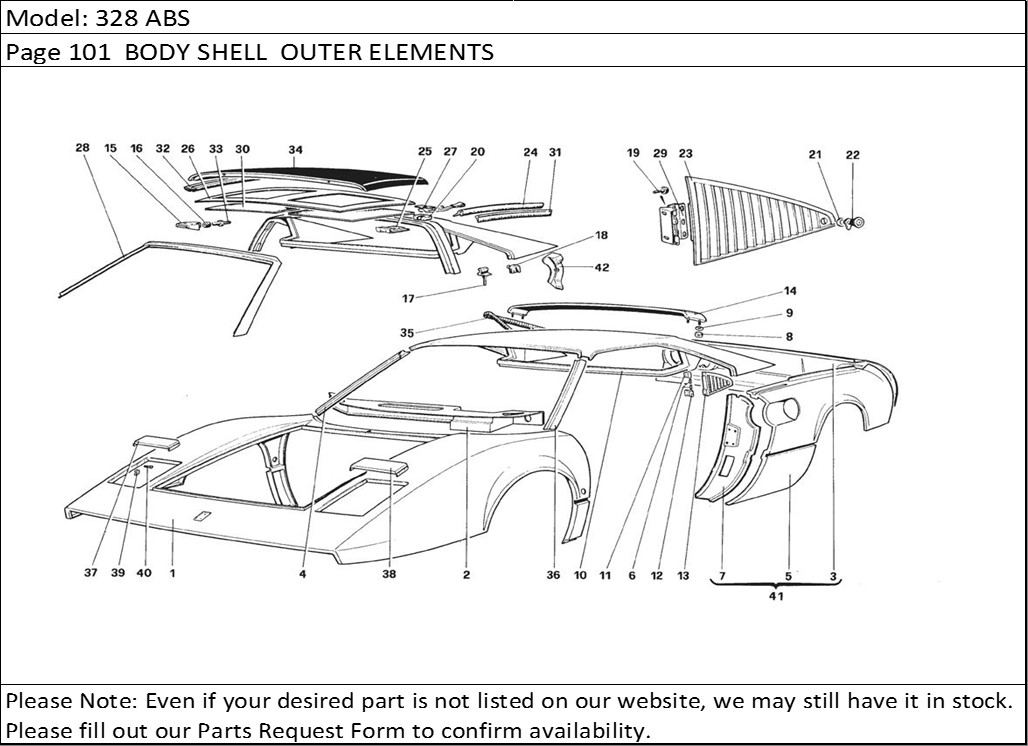

328 ABS Page 101 BODY SHELL OUTER ELEMENTS
Product Description
328 ABS Page 101 BODY SHELL OUTER ELEMENTS
Click on part number below to order. If unable to click on part number please fill out and submit Parts Request Form below to order.
| Location in Parts Diagram | Part # | Description | Quantity Used |
|---|---|---|---|
| 1 | 61751200 | Front panel. Not for US - J - SA | 1 |
| 1 | 61778000 | Front panel. US - J - SA | 1 |
| 2 | 61851100 | (V) Panel RHD | 1 |
| 2 | 61797700 | (V) Panel LHD | 1 |
| 2 | 62534800 | (N) Panel RHD | 1 |
| 3 | 61109600 | Rear panel - Not for US - J - SA | 1 |
| 3 | 61874600 | Rear panel - US - J - SA | 1 |
| 4 | 61141100 | Panel for R.H. post - GTB | 1 |
| 5 | 62354300 | R.H. rear fender - GTB - US - AUS - C7 - J - SA - From car no. 69369 | 1 |
| 5 | 60585700 | R.H. rear fender - GTB - US - AUS - J - SA - Until car no. 69367 | 1 |
| 5 | 60359205 | L.H. rear fender - GTB - Nor for US - AUS - C7 - J - SA - Until car no. 69367 | 1 |
| 5 | 62352100 | L.H. rear fender - GTB - Not for US - AUS - C7 - J - SA - From car no. 69369 | 1 |
| 5 | 62354400 | L.H. rear fender - GTB - US - AUS - C7 - J - SA - C8 - From car no. 69369 | 1 |
| 5 | 60585800 | L.H. rear fender - GTB - US - AUS - J - SA - C8 - Until car no. 69367 | 1 |
| 5 | 60586000 | L.H. rear fender - GTS - AUS - US - C7 - C8 | 1 |
| 5 | 60359007 | L.H. rear fender -GTS - Not for US - AUS - C7 - C8 | 1 |
| 5 | 62352000 | R.H. rear fender - GTB - Not for AUS - US - C7 - J - SA - From car no. 69369 | 1 |
| 5 | 60585900 | R.H. rear fender - GTS - AUS - US - C7 - C8 | 1 |
| 5 | 60358900 | R.H. rear fender - GTS - Not for US - AUS - C7 - C8 | 1 |
| 5 | 60359106 | R.H. rear fender - GTB - Not for AUS - US - C7 - J - SA - Until car no. 69367 | 1 |
| 6 | 60042108 | Pin - GTB | 2 |
| 7 | 60891100 | L.H. pilar for fender- RHD | 1 |
| 7 | 60216801 | R.H. pilar for fender - LHD | 1 |
| 7 | 60891000 | R.H. pilar for fender - RHD | 1 |
| 7 | 60216900 | L.H. pilar for fender- LHD | 1 |
| 8 | 12574211 | Nut | 4 |
| 9 | 12643701 | Washer | 4 |
| 10 | 60214806 | Roof panel - GTB | 1 |
| 11 | 60040805 | Upple hinge - GTB | 1 |
| 12 | 60040706 | Lower hinge - GTB | 1 |
| 13 | 60337409 | L.H. grill - GTB | 1 |
| 13 | 60370004 | R.H. grill - GTB | 1 |
| 14 | 61290200 | Rough spoyler | 1 |
| 14 | 61024700 | Sleek spoyler | 1 |
| 15 | 60336807 | Front bracket - GTS | 2 |
| 16 | 60433604 | Protection for pin - GTS | 2 |
| 17 | 60551400 | Central grommet - GTS | 2 |
| 18 | 61989600 | Rear grommet - GTS - Until car 76681 only on R.H. side | 2 |
| 19 | 60892600 | Grommet - GTS | 4 |
| 20 | 60395506 | Handle protection - GTS | 2 |
| 21 | 61819400 | Ring nut for grill - GTS | 2 |
| 22 | 61819300 | Block for grill - GTS '' | 2 |
| 23 | 61818700 | L.H. grill - GTS | 1 |
| 23 | 61818600 | R.H. grill - GTS | 1 |
| 24 | 60608300 | R.H. gutter - GTS | 1 |
| 24 | 60608400 | L.H. gutter - GTS | 1 |
| 25 | 60500500 | Rear bracket - GTS | 2 |
| 26 | 61203000 | Covering - GTS | 1 |
| 27 | 60421500 | Handle - GTS | 2 |
| 28 | 60872700 | Framework for windshield - GTS | 1 |
| 29 | 60325305 | Grill hinge - GTS | 2 |
| 30 | 61202900 | L.H. covering - GTS | 1 |
| 30 | 61202800 | R.H. covering - GTS | 1 |
| 31 | 60608500 | Gasket - GTS | 2 |
| 32 | 60398104 | Gasket - GTS - To exhaustionCar 68345 | 2 |
| 32 | 62341700 | R.H. gasket - GTS - After exhaustion 60398104 | 1 |
| 32 | 62341800 | L.H. gasket - GTS - After exhaustion 60398104 | 1 |
| 33 | 60189008 | Front pin - GTS | 2 |
| 34 | 61128700 | Hard top - GTS | 1 |
| 35 | 60528300 | Gasket | 2 |
| 36 | 61141200 | Panel for L.H. post - GTB | 1 |
| 37 | 61810800 | R.H. cover | 1 |
| 38 | 61810900 | L.H. cover | 1 |
| 39 | 20273603 | Clip | 8 |
| 40 | 15903878 | Screw | 8 |
| 41 | 61901700 | Rear panel complete - GTS - Not for US - J - SA | 1 |
| 41 | 62348500 | Rear panel complete - GTB - US - J - SA - From car no. 69369 | 1 |
| 41 | 62346200 | Rear panel complete - GTB - Not for US - J - SA - From car no. 69369 | 1 |
| 41 | 61874800 | Rear panel complete - GTS - US - J - SA | 1 |
| 41 | 61874500 | Rear panel complete - GTB - US - J - SA - Until car no. 69367 | 1 |
| 41 | 61901500 | Rear panel complete - GTB - Not for US - J - SA - Until car no. 69367 | 1 |
| 42 | 62460200 | L.H. Rear grommet - GTS - From car no. 76681 | 1 |
| 32 | 82254300 | LH BRACKET | |
| 33 | 69129500 | ROLLER | |
| 1 | 9664 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Cadenino- -Leather- -Leather- -Valid | 1 |
| 1 | 9665 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Cadenino- -Leather- -Alcantara- stitching | 1 |
| 1 | 9690 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona + lining- -Leather- -Leather- | 1 |
| 1 | 9691 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona + lining- -Leather- -Alcantara- | 1 |
| 1 | 9666 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Daytona + lining- -Leather- -Leather- | 1 |
| 1 | 9667 | L.H. SEAT COMPLETE WITH GUDES -Easy entry- -Full OPT- -Daytona + lining- -Leather- -Alcantara- | 1 |
| 1 | 9692 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Logerzy- -Leather- -Leather- -Valid for | 1 |
| 1 | 9693 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Logerzy- -Leather- -Alcantara- -Valid for | 1 |
| 1 | 9668 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Logerzy- -Leather- -Leather- -Valid for | 1 |
| 1 | 9669 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Logerzy- -Leather- -Alcantara- -Valid | 1 |
| 1 | 9694 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Piping+Quilt- -Leather- -Leather- -Valid | 1 |
| 1 | 9695 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Piping+Quilt- -Leather- -Alcantara- -Valid | 1 |
| 1 | 9670 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Piping+Quilt- -Leather- -Leather- -Valid for USA and CDN- -For vehicles up to Ass. No. 86008 with seat with back panel without | 1 |
| 1 | 9671 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Piping+Quilt- -Leather- -Alcantara- | 1 |
| 1 | 9696 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Carbon- -Leather- -Leather- -Valid for | 1 |
| 1 | 9697 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Carbon- -Leather- -Alcantara- -Valid for | 1 |
| 1 | 9672 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Carbon- -Leather- -Leather- -Valid for | 1 |
| 1 | 9673 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Carbon- -Leather- -Alcantara- -Valid for | 1 |
| 1 | 9698 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona- -Carbon- -Leather- -Leather- | 1 |
| 1 | 9699 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona- -Carbon- -Leather- -Alcantara- | 1 |
| 1 | 9674 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Daytona- -Carbon- -Leather- | 1 |
| 1 | 9675 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Daytona- -Carbon- -Leather- | 1 |
| 1 | 9700 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Cadenino- -Carbon- -Leather- -Leather- | 1 |
| 1 | 9701 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Cadenino- -Carbon- -Leather- | 1 |
| 1 | 9676 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Cadenino- -Carbon- -Leather- -Leather--Valid for USA and CDN- -For vehicles up to Ass. No. 86008 with seat with back panel | 1 |
| 1 | 9677 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Cadenino- -Carbon- -Leather- | 1 |
| 1 | 9702 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona + lining- -Carbon- -Leather- | 1 |
| 1 | 9703 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona + lining- -Carbon- -Leather- | 1 |
| 1 | 9678 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Daytona + lining- -Carbon- -Leather- | 1 |
| 1 | 9679 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Daytona + lining- -Carbon- -Leather- | 1 |
| 1 | 9704 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Lozengy- -Carbon- -Leather- -Leather- | 1 |
| 1 | 9705 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Lozengy- -Carbon- -Leather- -Alcantara- stitching | 1 |
| 1 | 9680 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Lozengy- -Carbon- -Leather- | 1 |
| 1 | 9681 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Lozengy- -Carbon- -Leather- | 1 |
| 1 | 9706 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Piping + Quilt- -Carbon- -Leather- | 1 |
| 1 | 9707 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Piping + Quilt- -Carbon- -Leather- | 1 |
| 1 | 9682 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Piping + Quilt- -Carbon- -Leather- | 1 |
| 1 | 9683 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Piping + Quilt- -Carbon- -Leather- | 1 |
