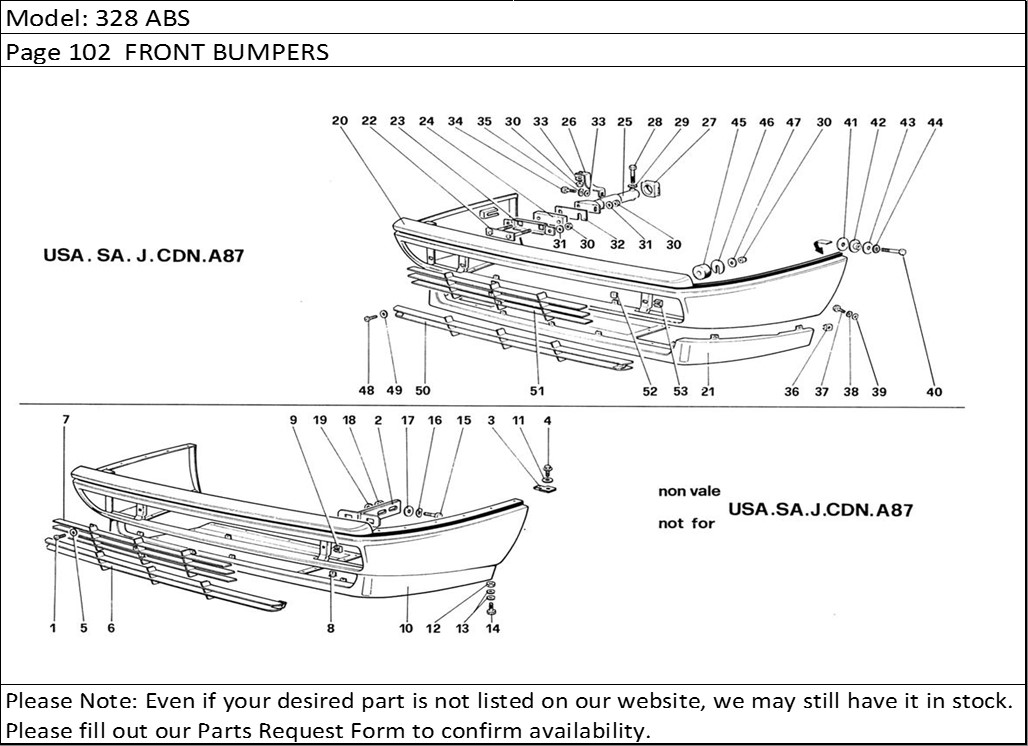

328 ABS Page 102 FRONT BUMPERS
Product Description
328 ABS Page 102 FRONT BUMPERS
Click on part number below to order. If unable to click on part number please fill out and submit Parts Request Form below to order.
| Location in Parts Diagram | Part # | Description | Quantity Used |
|---|---|---|---|
| 1 | 15788178 | Screw | 8 |
| 2 | 61741500 | Bracket | 2 |
| 4 | 15926101 | Screw | 12 |
| 5 | 10519306 | Washer | 8 |
| 6 | 61797300 | Lower grill - Until car no. 64761 | 1 |
| 6 | 61938100 | Lower grill - From car no. 64763 | 1 |
| 7 | 61736800 | Grill | 1 |
| 8 | 60696300 | Clip | 8 |
| 9 | 60659100 | Nut | 4 |
| 10 | 61741700 | Lower panel - Until car no. 64761 | 1 |
| 10 | 61976600 | Lower panel - From car no. 68463 | 1 |
| 10 | 61947100 | Lower panel - From car n. 64763 to 68461 | 1 |
| 11 | 12640608 | Washer | 12 |
| 12 | 15896211 | Nut | 10 |
| 13 | 12643701 | Washer | 20 |
| 14 | 10902221 | Screw | 10 |
| 15 | 16043421 | Screw | 4 |
| 16 | 106852 | Washer | 4 |
| 17 | 12642001 | Washer | 4 |
| 18 | 16104111 | Nut | 4 |
| 19 | 12646201 | Washer | 4 |
| 20 | 61946700 | Lower panel - From car no. 64763 - Not for CDN | 1 |
| 20 | 61747400 | Lower panel - Until car no. 64761 - Not for CDN | 1 |
| 20 | 61953300 | Lower panel - CDN | 1 |
| 21 | 61946800 | Spoyler - From car no. 64763 - 68461 | 1 |
| 21 | 41777900 | Spoyler - Until car no. 64761 | 1 |
| 21 | 61975800 | Spoyler - From car no. 68463 | 1 |
| 22 | 61736500 | Bracket | 2 |
| 23 | 61747600 | Bracket | 2 |
| 24 | 61919200 | Plug - Not for CDN | 2 |
| 25 | 61736700 | Bracket | 2 |
| 26 | 60801400 | Bracket | 2 |
| 27 | 61262200 | Plug | 2 |
| 28 | 60777400 | Screw | 2 |
| 29 | 103024 | Washer | 2 |
| 30 | 12574511 | Nut | 12 |
| 31 | 12638601 | Washer | 8 |
| 32 | 61919300 | Spacer | 6 |
| 33 | 12646801 | Washer | 4 |
| 34 | 15970521 | Screw | 2 |
| 35 | 10571871 | Washer | 2 |
| 36 | 60758600 | Nut | 4 |
| 37 | 10902121 | Screw | 6 |
| 38 | 10615471 | Washer | 6 |
| 39 | 12646601 | Washer | 6 |
| 40 | 16043821 | Screw | 2 |
| 41 | 61802800 | Spacer | 2 |
| 42 | 62428800 | Bushing - After exhaustion 61693400 | 2 |
| 42 | 61693400 | Bushing - Until exaustion | 2 |
| 43 | 12646201 | Washer | 2 |
| 44 | 10615670 | Washer | 2 |
| 45 | 61747800 | Plug | 2 |
| 46 | 61747700 | Spacer | 6 |
| 47 | 12644301 | Washer | 2 |
| 48 | 15688178 | Screw | 8 |
| 49 | 10519306 | Washer | 8 |
| 50 | 61797300 | Lower grill - Until car no. 64761 | 1 |
| 50 | 61938100 | Lower grill - From car no. 64763 | 1 |
| 51 | 61736800 | Grill | 1 |
| 52 | 60696300 | Clip | 8 |
| 53 | 60659100 | Nut | 4 |
