328 ABS Page 103 REAR BUMPERS
Product Description
328 ABS Page 103 REAR BUMPERS
Click on part number below to order. If unable to click on part number please fill out and submit Parts Request Form below to order.

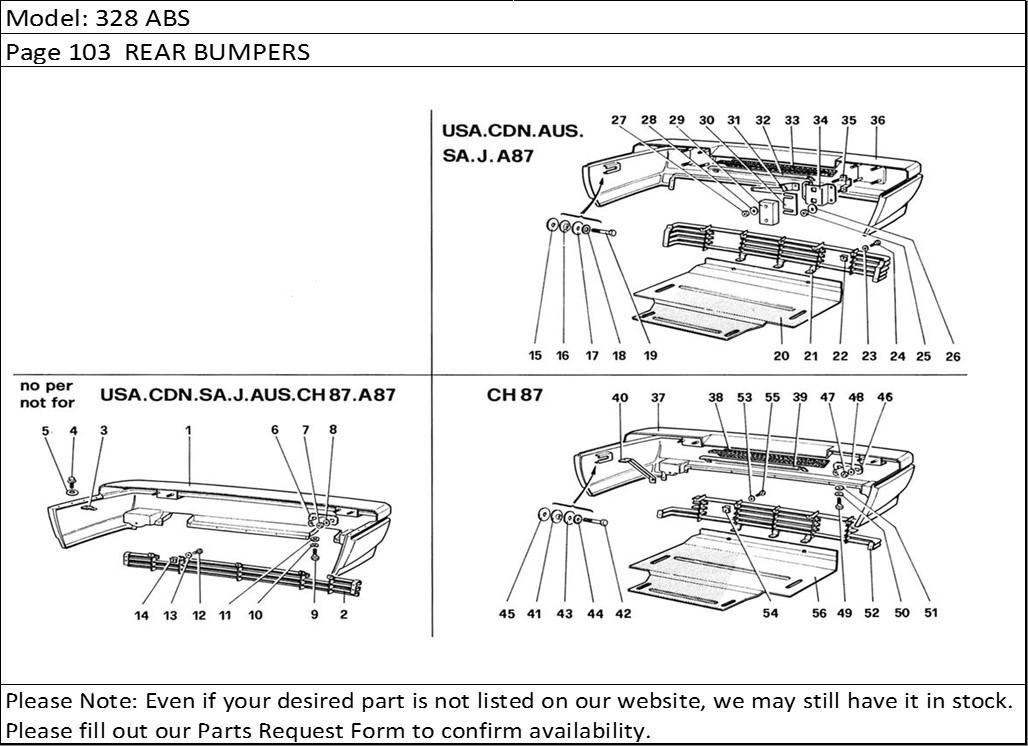

| Location in Parts Diagram | Part # | Description | Quantity Used |
|---|---|---|---|
| 1 | 61740400 | Lower panel | 1 |
| 2 | 61734400 | Grill | 1 |
| 4 | 15926101 | Screw | 8 |
| 5 | 12640608 | Washer | 8 |
| 6 | 41740600 | Bracket | 2 |
| 7 | 16104111 | Nut | 4 |
| 8 | 20291308 | Washer | 4 |
| 9 | 16043411 | Screw | 2 |
| 10 | 106852 | Washer | 2 |
| 11 | 12642001 | Washer | 2 |
| 12 | 15688278 | Screw | 9 |
| 13 | 12637806 | Washer | 9 |
| 14 | 61066500 | Clip | 9 |
| 15 | 61802800 | Spacer | 2 |
| 16 | 61693400 | Bushing - Until exhaustion | 2 |
| 16 | 62428800 | Bushin - After exaustion 61693400 | 2 |
| 17 | 12646201 | Wahser | 2 |
| 18 | 10615670 | Washer | 2 |
| 19 | 16043821 | Screw | 2 |
| 20 | 61881000 | Protection | 1 |
| 21 | 61737700 | Grill | 1 |
| 22 | 61067800 | Clip | 9 |
| 23 | 12637806 | Washer | 9 |
| 24 | 15688278 | Screw | 9 |
| 25 | 16104111 | Nut | 8 |
| 26 | 10519601 | Washer | 8 |
| 27 | 12574511 | Nut | 4 |
| 28 | 12638601 | Washer | 4 |
| 29 | 61791900 | Plug | 2 |
| 30 | 61792000 | Spacer | 1 |
| 31 | - | L.H. bracket (first cars only) | 1 |
| 31 | - | R.H. bracket (first cars only) | 1 |
| 32 | 61923600 | Angle fixing net | 1 |
| 33 | 61918300 | Net | 1 |
| 34 | 61736300 | Bracket | 2 |
| 35 | 61791700 | Bracket | 2 |
| 36 | 61735900 | Lower panel - Not for CDN | 1 |
| 36 | 61953400 | Lower panel - CDN | 1 |
| 37 | 61972900 | Lower panel | 1 |
| 38 | 61918300 | Net | 1 |
| 39 | 61923600 | Angle fixing net | 1 |
| 40 | 61973000 | Bracket | 2 |
| 41 | 62428800 | Bushing - After exhaustion 61693400 | 2 |
| 41 | 61693400 | Bushing - Until exaustion | 2 |
| 42 | 16043821 | Screw | 2 |
| 43 | 12646201 | Washer | 2 |
| 44 | 10615670 | Washer | 2 |
| 45 | 61802800 | Spacer | 2 |
| 46 | 61740602 | Bracket | 2 |
| 47 | 16104111 | Nut | 4 |
| 48 | 20291308 | Washer | 4 |
| 49 | 16043411 | Screw | 2 |
| 50 | 106852 | Washer | 2 |
| 51 | 12642001 | Washer | 2 |
| 52 | 61972700 | Grill | 1 |
| 53 | 12637806 | Washer | 9 |
| 54 | 61067800 | Clip | 9 |
| 55 | 15688278 | Screw | 9 |
| 56 | 61881000 | Protection | 1 |
