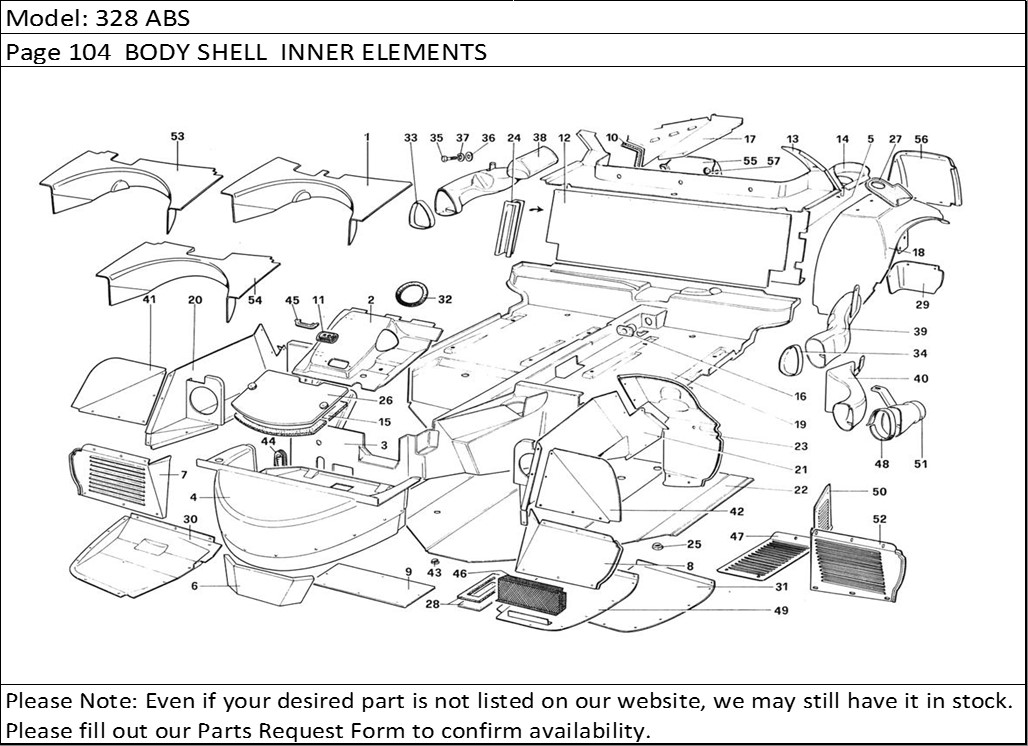

328 ABS Page 104 BODY SHELL INNER ELEMENTS
Product Description
328 ABS Page 104 BODY SHELL INNER ELEMENTS
Click on part number below to order. If unable to click on part number please fill out and submit Parts Request Form below to order.
| Location in Parts Diagram | Part # | Description | Quantity Used |
|---|---|---|---|
| 1 | 60350501 | (V) Cover LHD - Not for US - J - SA | 1 |
| 1 | 60351806 | (V) Cover RHD | 1 |
| 2 | 61933200 | (V) Cover RHD - From car 64653 | 1 |
| 2 | 61827700 | (V) Cover LHD - Until car 64651 | 1 |
| 2 | 61851500 | (V) Cover RHD - Until car 64651 | 1 |
| 2 | 61932100 | (N) Cover LHD - From car 64653 | 1 |
| 2 | 62535000 | (N) Cover RHD | 1 |
| 3 | 61778600 | (V) Front panel GTS - LHD | 1 |
| 3 | 62485900 | (N) Front panel GTB - LHD | 1 |
| 3 | 61851600 | (V) Front panel GTB - RHD | 1 |
| 3 | 62535100 | (N) Front panel GTB - RHD | 1 |
| 3 | 62501200 | (N) Front panel GTS - LHD | 1 |
| 3 | 62575200 | (N) Front panel GTS - RHD | 1 |
| 3 | 61755800 | (V) Front panel GTB - LHD | 1 |
| 3 | 61872800 | (V) Front panel GTS - RHD | 1 |
| 4 | 62484600 | (N) Housing for wheel | 1 |
| 4 | 61748800 | (V) Housing for wheel | 1 |
| 5 | 60719400 | Panel GTS - US - J - SA | 1 |
| 5 | 62440900 | Panel GTS - C8 | 1 |
| 5 | 60706500 | Panel GTB - US - J - SA | 1 |
| 5 | 62335300 | Panel GTS - AUS | 1 |
| 5 | 61193700 | Panel GTB - Not for US - J - SA - AUS | 1 |
| 5 | 61194200 | Panel GTS - Not for US - J - SA - RHD - C8 | 1 |
| 5 | 61194300 | Panel GTS - RHD - Not for AUS | 1 |
| 5 | 62335700 | Panel GTB - AUS | 1 |
| 6 | 60351707 | Battery protection | 1 |
| 7 | 61750200 | R.H. front gravel guardNot for US - J -SA | 1 |
| 7 | 61897200 | (V) R. H. front gravel guard US - J -SA | 1 |
| 7 | 61750200 | (*N) R.H. front gravel guard US - J - SA | 1 |
| 8 | 61750300 | (V) L.H. front gravel guard - Not for US - J - SA | 1 |
| 8 | 61897300 | (V) L.H. front gravel guard - US - J -SA | 1 |
| 9 | 60208600 | Panel RHD | 1 |
| 9 | 60059706 | Panel LHD | 1 |
| 10 | 60251808 | Gasket | 1 |
| 11 | 60197703 | Fair lead RHD - Until car 64651 | 1 |
| 11 | 61932400 | Fair lead LHD - From car 64653Until exha. | 1 |
| 11 | 61933400 | Fair lead RHD - From car 64653Until exha. | 1 |
| 11 | 62616800 | Fair lead - After exha. 61932400 - 61933400 | 1 |
| 11 | 60054905 | Fair lead LHD - Until car 64651 | 1 |
| 12 | 60850800 | Alluminum panel GTS - GS + (GTB US - SA - J - C7 - C*) | 1 |
| 12 | 61081000 | Panel GTS - RHDGTB - AUS | 1 |
| 13 | 61128400 | Plane rear window GTS | 1 |
| 13 | 61010800 | Plane rear window GTBUntil car 69367 | 1 |
| 13 | 62351000 | Plane rear window GTBFrom car 69369 | 1 |
| 14 | 60342904 | Fuel filler chambel GTS | 1 |
| 14 | 60441201 | Fuel filler chambel GTB | 1 |
| 15 | 60031101 | Gasket | 1 |
| 16 | 40169005 | Bushing RHD | 1 |
| 16 | 60084704 | Bushing LHD | 1 |
| 17 | 62542400 | (N) Inner panel L.H. - MY 89 - US - J - SA | 1 |
| 17 | 60956800 | (N) Inner panel L.H. - MY 88 - US - J - SA | 1 |
| 17 | 60956800 | (V) Inner panel L.H. | 1 |
| 17 | 60956900 | Inner panel R.H. | 1 |
| 17 | 62542400 | (N) Inner panel L.H. - Not for US - J - SA | 1 |
| 18 | 61874300 | L.H. wheeihouse - Until car 66799 - AUS - US - J - SA | 1 |
| 18 | 62345300 | L.H. wheelfhous - From car 66801 - AUS - SA - J - US - C7 - C8 | 1 |
| 18 | 61875000 | L.H. wheelouse - Until car 66799 - Not for AUS - C7 - C8 | 1 |
| 18 | 61874200 | R.H. wheeihouse - Until car 66799 - AUS-US-J-SA | 1 |
| 18 | 61991700 | L.H. wheeihouse - From car 66801 - Not for AUS - C7 - C8 | 1 |
| 18 | 61874900 | R.H. weelhouse - Until car 66799 - Not for AUS- C7 - C8 | 1 |
| 18 | 62345200 | R.H. wheeihouse - From car 66801 - AUS - US - J - SA - C7 - C8 | 1 |
| 18 | 61991600 | R.H. wheeihouse - From car 66801 - Not for AUS - C7 - C8 | 1 |
| 19 | 61856800 | (V) Resin flat bed GTS - RHD | 1 |
| 19 | 61748100 | Resin flat bed GTB - LHD | 1 |
| 19 | 61767200 | Resin flat bed GTS - LHD | 1 |
| 19 | 61842400 | (V) Resin flat bed GTB - RHD | 1 |
| 19 | 62556000 | (N) Resin flat bed GTS - RHD | 1 |
| 19 | 62555800 | (N) Resin flat bed GTB - RHD | 1 |
| 20 | 62484900 | (N) Front wheeihouse (RH) | 1 |
| 20 | 61749800 | (V) Front wheeihouse (RH) | 1 |
| 21 | 62485000 | (N) Front wheeihouse (LH) | 1 |
| 21 | 61749900 | (V) Front wheeihouse (LH) | 1 |
| 22 | 60270006 | Under flat bed RHD | 1 |
| 22 | 60880900 | Under flat bed LHD | 1 |
| 23 | 61859100 | R.H. gravel guard GTB - RHD | 1 |
| 23 | 61849800 | L.H. gravel guard GTB | 1 |
| 23 | 61850000 | L.H. gravel guard GTS | 1 |
| 23 | 61870600 | R.H. gravel guard GTS - RHD | 1 |
| 23 | 61849900 | R.H. gravel guard GTS - LHD | 1 |
| 23 | 61849700 | R.H. gravel guard GTB - LHD | 1 |
| 24 | 60093903 | Protection for ripes GTB - Not for US - J - SA - GD - C7 - C8 | 1 |
| 24 | 60241908 | Protection for pipes GT - RHD - Not for AUS | 1 |
| 25 | 40305203 | Plug | 2 |
| 26 | 60279809 | Cover for battery | 1 |
| 27 | 60134202 | Gasket for filler | 1 |
| 28 | 60225000 | Cover RHD | 1 |
| 29 | 61770300 | R.H. rear cover - Until car 66799 - Not for US - J - SA - AUS | 1 |
| 29 | 61770400 | L.H. rear cover - Until car 66799 - Not for US - J - SA - AUS | 1 |
| 29 | 62515900 | (N) R.H. rear cover. US - J - SA - C8 | 1 |
| 29 | 62516000 | (N) L.H. rear cover US - J - SA - C8 | 1 |
| 29 | 62515800 | (N) L.H. rear cover - Not for US - J - SA - C8 | 1 |
| 29 | 61992100 | (V) L.H. rear cover - From car 66801 - US - J - AUS - C7 - C8 | 1 |
| 29 | 62340400 | (V) R.H. rear cover - From car 66801 - Not for US - J - SA - AUS - C7 - C8 | 1 |
| 29 | 62340500 | (V) L.H. rear cover - From car 66801 - Not for US - J - SA - AUS - C7 - C8 | 1 |
| 29 | 61992000 | (V) R.H. rear cover - From car 66801 - US - J - SA - AUS - C7 - C8 | 1 |
| 29 | 61883700 | R.H. rear cover - Until car 66799 - US-J-SA-AUS | 1 |
| 29 | 61883800 | L.H. rear cover - From car 66801 - US-J-SA-AUS | 1 |
| 29 | 62515700 | (N) R.H. rear cover - Not for US - J - SA - C8 | 1 |
| 30 | 61975700 | R.H. Cover - From car 66801 | 1 |
| 30 | 61771800 | R.H. Cover - Until car 66799 | 1 |
| 31 | 61771900 | L.H. cover - Without bracket | 1 |
| 32 | 61932600 | Gasket LHD - From car 64653 | 1 |
| 32 | 61933500 | Gasket RHD - From car 64653 | 1 |
| 32 | 60186103 | Gasket RHD - Until car 64651 | 1 |
| 32 | 60055001 | Gasket LHD - Until car 64651 | 1 |
| 33 | 60200300 | R.H. grill D only | 1 |
| 34 | 60200409 | L.H. grill D only | 1 |
| 35 | 10902121 | Screw | 2 |
| 36 | 12643721 | Washer | 2 |
| 37 | 106850 | Washer | 2 |
| 38 | 62365400 | R.H. air duct C7 - C8 - Until 31-5-88 | 1 |
| 38 | 61299600 | R.H. air duct - Until 31-5-88 - NotforC7-C8 | 1 |
| 38 | 62500300 | R.H. air duct - From 1-6-88 | 1 |
| 39 | 60373602 | L.H. air duct - Until car 75272 - Not for US-J-SA-AUS - C7 | 1 |
| 39 | 62432400 | L.H. air duct - From car 75273 - Not for USA - J - SA - AUS - C7 - C8 | 1 |
| 40 | 62468500 | L.H. air duct US - J - SA - AUS - C7 - C8 - From 1-4-88 | 1 |
| 40 | 61823500 | L.H. air duct. US - J - SA - AUS - C7 - C8 - Until 31-3-88 | 1 |
| 41 | 61755400 | R.H. gravel guard | 1 |
| 42 | 61755500 | L.H. gravel guard | 1 |
| 43 | 60659400 | Plug | 1 |
| 44 | 101100 | Fair lead | 1 |
| 45 | 61932500 | Cover for fair lead - From car 64653 - Only with fair lead 61932400 and 61933400 | 1 |
| 46 | 61945900 | Grill + filter for electro fan - Until car 76075 SA - J - US | 1 |
| 46 | 61947700 | Grill + filter for electro fan - Until car 76075 - Not foro US - J - SA | 1 |
| 47 | 62492500 | (N) protection grill | 1 |
| 48 | 61049000 | Gasket | 1 |
| 49 | 61947300 | L.H. cover - Only for cars with filter 61947700 e 61945900 | 1 |
| 50 | 62492400 | (N) Protection grill | 1 |
| 51 | 62432400 | L.H. air duct - From car 75273 - Not for US - J - SA - AUS - C7 - C8 | 1 |
| 52 | 62485100 | (N) L.H. front gravel guard - Not for US - J - SA | 1 |
| 52 | 62576700 | (N) L.H. front gravel guard US - J - SA | 1 |
| 53 | 60351905 | (N) Cover LHD - Not for ABS - For US - J - SA - valid for all models without ABS | 1 |
| 54 | 62548900 | (N) Cover RHD with ABS - Not for AUS | 1 |
| 54 | 62486000 | (N) Cover LHD with ABS | 1 |
| 54 | 62591300 | (N) Cover - AUS with ABS | 1 |
| 55 | 61991400 | R.H. cover | 1 |
| 56 | 61991500 | L.H. cover | 1 |
| 57 | 40134108 | Plug | 1 |
| 32 | 82254300 | LH BRACKET | |
| 33 | 69129500 | ROLLER | |
| 1 | 9664 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Cadenino- -Leather- -Leather- -Valid | 1 |
| 1 | 9665 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Cadenino- -Leather- -Alcantara- stitching | 1 |
| 1 | 9690 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona + lining- -Leather- -Leather- | 1 |
| 1 | 9691 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona + lining- -Leather- -Alcantara- | 1 |
| 1 | 9666 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Daytona + lining- -Leather- -Leather- | 1 |
| 1 | 9667 | L.H. SEAT COMPLETE WITH GUDES -Easy entry- -Full OPT- -Daytona + lining- -Leather- -Alcantara- | 1 |
| 1 | 9692 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Logerzy- -Leather- -Leather- -Valid for | 1 |
| 1 | 9693 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Logerzy- -Leather- -Alcantara- -Valid for | 1 |
| 1 | 9668 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Logerzy- -Leather- -Leather- -Valid for | 1 |
| 1 | 9669 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Logerzy- -Leather- -Alcantara- -Valid | 1 |
| 1 | 9694 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Piping+Quilt- -Leather- -Leather- -Valid | 1 |
| 1 | 9695 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Piping+Quilt- -Leather- -Alcantara- -Valid | 1 |
| 1 | 9670 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Piping+Quilt- -Leather- -Leather- -Valid for USA and CDN- -For vehicles up to Ass. No. 86008 with seat with back panel without | 1 |
| 1 | 9671 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Piping+Quilt- -Leather- -Alcantara- | 1 |
| 1 | 9696 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Carbon- -Leather- -Leather- -Valid for | 1 |
| 1 | 9697 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Carbon- -Leather- -Alcantara- -Valid for | 1 |
| 1 | 9672 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Carbon- -Leather- -Leather- -Valid for | 1 |
| 1 | 9673 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Carbon- -Leather- -Alcantara- -Valid for | 1 |
| 1 | 9698 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona- -Carbon- -Leather- -Leather- | 1 |
| 1 | 9699 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona- -Carbon- -Leather- -Alcantara- | 1 |
| 1 | 9674 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Daytona- -Carbon- -Leather- | 1 |
| 1 | 9675 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Daytona- -Carbon- -Leather- | 1 |
| 1 | 9700 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Cadenino- -Carbon- -Leather- -Leather- | 1 |
| 1 | 9701 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Cadenino- -Carbon- -Leather- | 1 |
| 1 | 9676 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Cadenino- -Carbon- -Leather- -Leather--Valid for USA and CDN- -For vehicles up to Ass. No. 86008 with seat with back panel | 1 |
| 1 | 9677 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Cadenino- -Carbon- -Leather- | 1 |
| 1 | 9702 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona + lining- -Carbon- -Leather- | 1 |
| 1 | 9703 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona + lining- -Carbon- -Leather- | 1 |
| 1 | 9678 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Daytona + lining- -Carbon- -Leather- | 1 |
| 1 | 9679 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Daytona + lining- -Carbon- -Leather- | 1 |
| 1 | 9704 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Lozengy- -Carbon- -Leather- -Leather- | 1 |
| 1 | 9705 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Lozengy- -Carbon- -Leather- -Alcantara- stitching | 1 |
| 1 | 9680 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Lozengy- -Carbon- -Leather- | 1 |
| 1 | 9681 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Lozengy- -Carbon- -Leather- | 1 |
| 1 | 9706 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Piping + Quilt- -Carbon- -Leather- | 1 |
| 1 | 9707 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Piping + Quilt- -Carbon- -Leather- | 1 |
| 1 | 9682 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Piping + Quilt- -Carbon- -Leather- | 1 |
| 1 | 9683 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Piping + Quilt- -Carbon- -Leather- | 1 |
