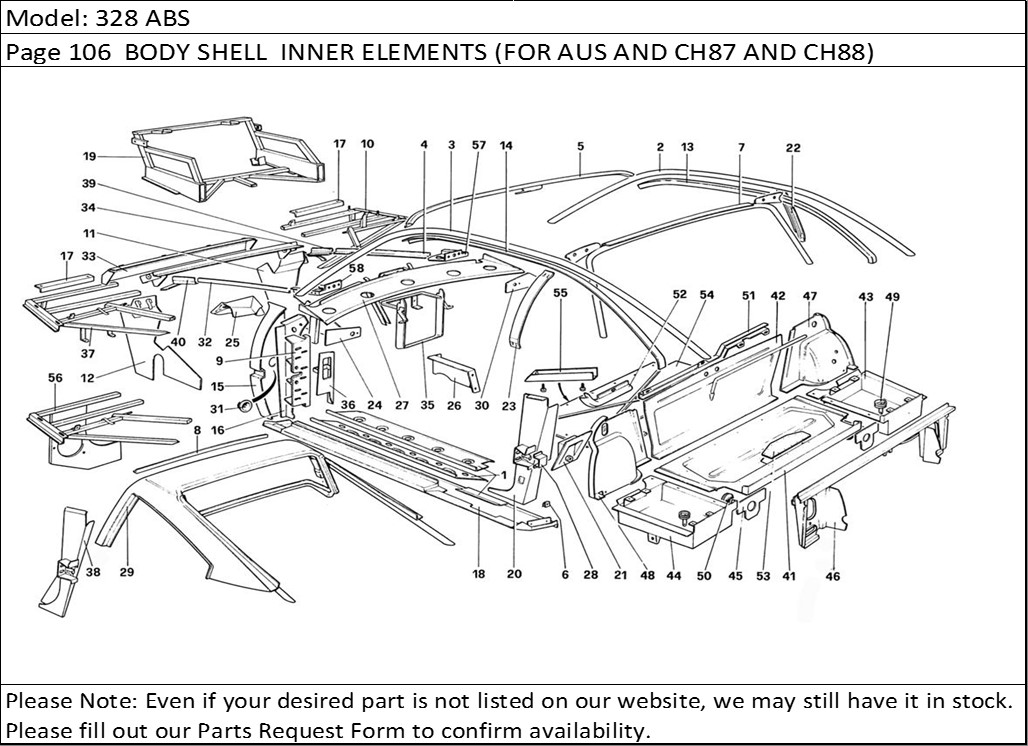

328 ABS Page 106 BODY SHELL INNER ELEMENTS (FOR AUS AND CH87 AND CH88)
Product Description
328 ABS Page 106 BODY SHELL INNER ELEMENTS (FOR AUS AND CH87 AND CH88)
Click on part number below to order. If unable to click on part number please fill out and submit Parts Request Form below to order.
| Location in Parts Diagram | Part # | Description | Quantity Used |
|---|---|---|---|
| 1 | 60419603 | Panel, L.H. door sill GTS | 1 |
| 1 | 60419504 | Panel, R.H. door sill GTS | 1 |
| 1 | 60303302 | Panel, L.H. door sill GTB | 1 |
| 2 | 61010000 | R.H. rail GTB | 1 |
| 3 | 61010100 | L.H. rail GTB | 1 |
| 4 | 60350006 | (V) R.H. stiffening CH | 1 |
| 4 | 60350204 | (V) R.H. stiffening AUS | 1 |
| 4 | 60350808 | (N) R.H. stiffening CH- AUS | 1 |
| 5 | 60371309 | Front rib roof GTB | 1 |
| 6 | 60361805 | Clip | 4 |
| 7 | 60296001 | Rear rib for roof | 1 |
| 8 | 60560400 | Angle | 1 |
| 9 | 60285202 | Post fixing hinge | 2 |
| 10 | 61748400 | R.H. front frame | 1 |
| 11 | 61748400 | R.H. shield panel radiator CH | 1 |
| 11 | 62343800 | R.H. sheld panel radiator AUS - From car 68463# | 1 |
| 11 | 61842600 | R.H. shield panel radiator AUS - Until car 68461 | 1 |
| 12 | 61748300 | L.H. shield panel radiator | 1 |
| 13 | 62349900 | R.H. front rail GTB - From car 69369 | 1 |
| 13 | 60260106 | Sheet R.H. rail GTB - Until car 69367 | 1 |
| 13 | 62350100 | R.H. rear rail GTB - From car 69369 | 1 |
| 14 | 62350000 | L.H. front rail GTB - From car 69369 | 1 |
| 14 | 62350200 | L.H. rear rail GTB - From car 69369 | 1 |
| 14 | 60260007 | Sheet L.H. rail GTB - Until car 69367 | 1 |
| 15 | 60252400 | Hinge post. R.H. door | 1 |
| 15 | 60252509 | Hinge post L.H. door | 1 |
| 16 | 60397106 | (N) Sheet for R.H. pillar CH | 1 |
| 16 | 61009900 | (V) Sheet for L.H. pillar CH - AUS | 1 |
| 16 | 61009800 | (V) Sheet for R.H. pillar CH- AUS | 1 |
| 16 | 60397205 | (N) Sheet for L.H. pillar CH | 1 |
| 17 | 60652200 | Bracket for headlamps | 4 |
| 18 | 60003803 | Outer panel R.H. door sill | 1 |
| 18 | 60003902 | Outer panel L.H. door sill | 1 |
| 19 | 129903 | Front frame AUS and C8 with ABS - For CH - Until 30-9-86 | 1 |
| 19 | 135685 | Front frame CH from 1-10-86 | 1 |
| 20 | 60295201 | R.H. panel GTB -AUS | 1 |
| 20 | 60302304 | L.H. panel GTB - CH | 1 |
| 20 | 60295300 | L.H. panel GTB - AUS | 1 |
| 20 | 60302403 | R.H. panel GTB - CH | 1 |
| 21 | 60347705 | Support | 2 |
| 22 | 60260403 | R.H. post complete GTB - Until car 69367 | 1 |
| 22 | 62350300 | R.H. post complete GTB - From car. 69369 | 1 |
| 23 | 62350400 | L.H. post complete GTB - From car 69369 | 1 |
| 23 | 60260502 | L.H. post complete GTB - Until car 69367 | 1 |
| 24 | 61883300 | R.H. plate under windhsield AUS | 1 |
| 24 | 60259306 | L.H. plate under windhsield CH | 1 |
| 25 | 61851800 | Bracket for windhsield wiper motor CH | 1 |
| 25 | 61902300 | Bracket for windshield wiper motor AUS | 1 |
| 26 | 60106903 | Support CH | 1 |
| 26 | 60193109 | Support AUS | 1 |
| 27 | 61862600 | (V) Stiffening under wind shield AUS | 1 |
| 27 | 62534400 | (N) Stiffening RHD - With parts 57 - 58 | 1 |
| 27 | 61862100 | (V) Stiffening under wind shield CH | 1 |
| 27 | 62495600 | (N) Stiffening LHD - With parts 57 - 58 | 1 |
| 28 | 62514300 | R.H. bracket | 1 |
| 28 | 62514400 | L.H. bracket | 1 |
| 29 | 61128800 | Roff assembly GTS | 1 |
| 30 | 61850300 | R.H. plate under windshield CH | 1 |
| 30 | 61851400 | R.H. plate under windshield AUS | 1 |
| 31 | 60284304 | Plug | 2 |
| 32 | 60350907 | (N) L.H. stiffening AUS | 1 |
| 32 | 60350402 | (V) L.H. stiffening AUS | 1 |
| 32 | 60397908 | (V) L.H. stiffening CH | 1 |
| 32 | 60350907 | (N) L.H. stiffening CH | 1 |
| 33 | 61772600 | Shieldpanel radiator | 1 |
| 34 | 61772400 | Support | 2 |
| 35 | 61846900 | Support AUS | 1 |
| 35 | 61793300 | Support CH | 1 |
| 36 | 60640200 | Support GTS - CH | 1 |
| 36 | 60640100 | Support GTS - AUS | 1 |
| 37 | 61748500 | L.H. front frame - Until car 76080 | 1 |
| 38 | 60432100 | L.H. panel GTS - AUS | 1 |
| 38 | 60421302 | L.H. panel GTS - CH | 1 |
| 38 | 60432000 | R.H. panel GTS - AUS | 1 |
| 38 | 60421203 | R.H. Panel GTS - CH | 1 |
| 39 | 61854600 | R.H. stiffening | 1 |
| 40 | 61854700 | L.H. stiffening | 1 |
| 41 | 61828600 | Panel | 1 |
| 42 | 61805800 | Panel | 1 |
| 43 | 61806200 | R.H. bottom panel AUS | 1 |
| 43 | 62431100 | R.H. bottom panel C8 | 1 |
| 43 | 61972300 | R.H. bottom panel C7 | 1 |
| 44 | 61972400 | L.H. bottom panel CH | 1 |
| 44 | 61806300 | L.H. bottom panel AUS | 1 |
| 45 | 61806900 | Sheet AUS | 2 |
| 45 | 61973100 | Sheet CH | 2 |
| 46 | 61976000 | Rear frame AUS | 1 |
| 46 | 61805700 | Rear frame CH | 1 |
| 47 | 62431200 | R.H. panel C8 | 1 |
| 47 | 61807000 | R.H. panel AUS - Until car 66799 | 1 |
| 47 | 61991800 | R.H. panel C7 - For AUS from car 66801 | 1 |
| 48 | 61807100 | L.H. panel AUS - Until car 66799 | 1 |
| 48 | 61991900 | L.H. panel C7 - For AUS from car 66801 | 1 |
| 49 | 60731300 | Plug | 2 |
| 50 | 14507187 | Plug | 2 |
| 51 | 61950900 | Protection C7 - AUS | 1 |
| 52 | 61951000 | Protection AUS | 1 |
| 53 | 60810000 | Cover | 1 |
| 54 | 132659 | Insulation panel CH | 1 |
| 55 | 61914600 | Protection AUS | 1 |
| 55 | 61842500 | Protection CH | 1 |
| 56 | 62439000 | (V) L.H. front frame - From car 76081 | 1 |
| 56 | 62518000 | (N) L.H. front frame | 1 |
| 57 | 61097700 | (N) R.H. bracket | 1 |
| 58 | 61097800 | (N) L.H. bracket | 1 |
| 58 | 61010500 | Roof frame assembly GTB - Until car 69367 | 1 |
| 58 | 62350700 | Roof frame assembly GTB - From car 69369 | 1 |
