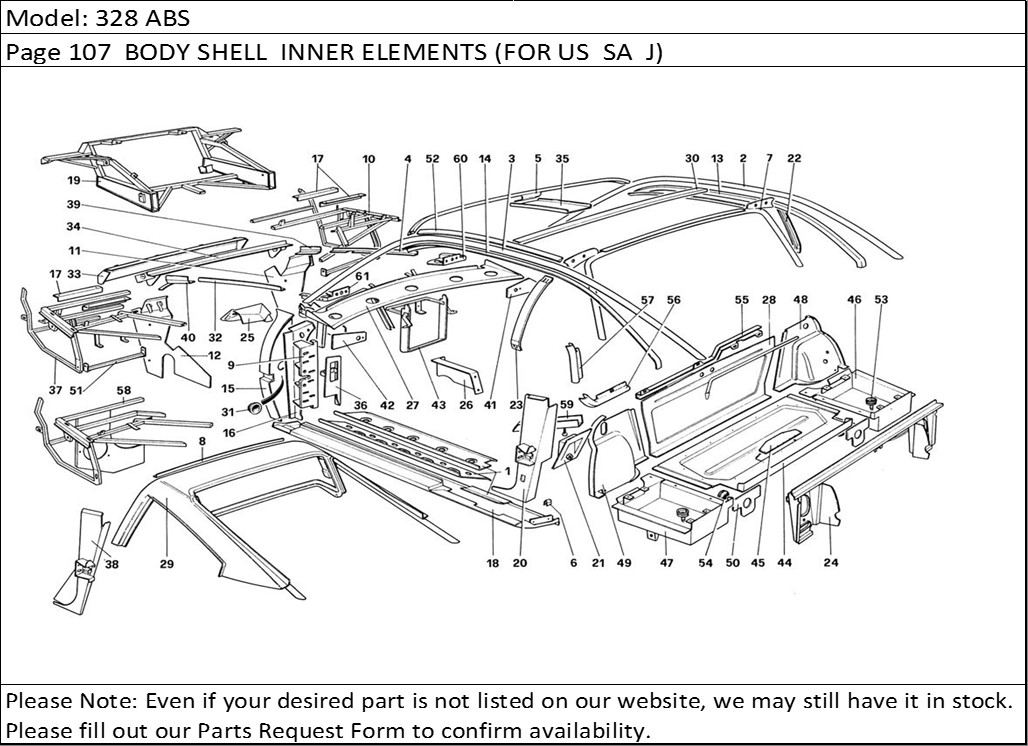

328 ABS Page 107 BODY SHELL INNER ELEMENTS (FOR US SA J)
Product Description
328 ABS Page 107 BODY SHELL INNER ELEMENTS (FOR US SA J)
Click on part number below to order. If unable to click on part number please fill out and submit Parts Request Form below to order.
| Location in Parts Diagram | Part # | Description | Quantity Used |
|---|---|---|---|
| 1 | 60919603 | Panel, L.H. door sill GTS | 1 |
| 1 | 60419504 | Panel, R.H. door sill GTS | 1 |
| 1 | 60303302 | Panel, L.H. door sill GTB | 1 |
| 2 | 61010000 | R.H. rail GTB | 1 |
| 3 | 61010100 | L.H. rail GTB | 1 |
| 4 | 60350808 | R.H. stiffening front bonnet | 1 |
| 5 | 60371309 | Front rib roof GTB | 1 |
| 6 | 60361805 | Clip | 1 |
| 7 | 60296001 | Rear rib for roof | 1 |
| 8 | 61885400 | Angle GTS - Not for SA- J | 1 |
| 9 | 60285202 | Post fixing hinge | 1 |
| 10 | 61743400 | R.H. front frame | 1 |
| 11 | 61775900 | R.H. shiled panel radiator | 1 |
| 12 | 61776000 | L.H. shiled panle radiator | 1 |
| 13 | 62349900 | Front R.H. rail GTB - From car 69369 | 1 |
| 13 | 60260106 | Sheet R.H. rail GTB - Until car 68367 | 1 |
| 13 | 62350100 | Rear R.H. rail GTB - From car 69369 | 1 |
| 14 | 62350000 | Front L.H. rail GTB - From car 69369 | 1 |
| 14 | 60260007 | Sheet L.H. rail GTB - Until car 69367 | 1 |
| 14 | 62350200 | Rear L.H. rail GTB - From car 69369 | 1 |
| 15 | 60252509 | Hinge post L.H. door | 1 |
| 15 | 60252400 | Hinge post. R.H. door | 1 |
| 16 | 61009900 | (V) Sheet for L.H. pillar | 1 |
| 16 | 60397205 | (N) Sheet for L.H. pillar | 1 |
| 16 | 60397106 | (N) Sheet for R.H. pillar | 1 |
| 16 | 61009800 | (V) Sheet for R.H. pillar | 1 |
| 17 | 60652200 | Bracket for headlamps | 1 |
| 18 | 60003902 | Outer panel L.H. door sill | 1 |
| 18 | 60003803 | Outer panel R.H. door sill | 1 |
| 19 | 129904 | Front frame R.H. panel GTB | 1 |
| 20 | 60295300 | R.H. post complete GTB | 1 |
| 20 | 60295201 | L.H. panel GTB Support | 1 |
| 21 | 60347705 | Support | 1 |
| 22 | 62350300 | L.H. post complete GTB - From car 69369 | 1 |
| 22 | 60260403 | R.H. post complete GTB - Until car 69367 | 1 |
| 23 | 62350400 | L.H. post complete GTB - From car 69369 | 1 |
| 23 | 60260502 | L.H. post complete GTB - Until car 69367 | 1 |
| 24 | 61805700 | Rear frame | 1 |
| 25 | 61851800 | Bracket for windhshield wiper motor | 1 |
| 26 | 60106903 | (V) Support | 1 |
| 26 | 62491900 | (N) Support | 1 |
| 27 | 62495600 | (N) Stiffening under wind shiled | 1 |
| 27 | 61862500 | (V) Stiffening under wind shield | 1 |
| 28 | 61805800 | Bulkhead | 1 |
| 29 | 61128800 | Roff assembly GTS | 1 |
| 30 | 60371705 | Central rib GTB | 2 |
| 31 | 60284304 | Plug | 1 |
| 32 | 60350907 | L.H. stiffening front ''bonnet | 1 |
| 33 | 61772600 | Shield panel radiator | 2 |
| 34 | 61898200 | Support | 1 |
| 35 | 60371002 | Stiffening for front rib GTB | 1 |
| 36 | 60640200 | Support GTS | 1 |
| 37 | 61743500 | L.H. front frame | 1 |
| 38 | 60432101 | L.H. panel GTS | 1 |
| 38 | 60432002 | R.H. panel GTS | 1 |
| 39 | 61854600 | R.H. stiffening | 1 |
| 40 | 61854700 | L.H. stiffening | 1 |
| 41 | 61850300 | R.H. plate under windshield | 1 |
| 42 | 60259306 | L.H. plate under windshiled | 1 |
| 43 | 61793300 | Support | 1 |
| 44 | 61828600 | Bottom panel for luggage comp. | 1 |
| 45 | 60810000 | Cover | 1 |
| 46 | 61806200 | R.H. side bottom for luggage comp. | 1 |
| 47 | 61806300 | L.H. side bottom for luggage comp. | 1 |
| 48 | 61991800 | R.H. sheet - From car 66801 | 1 |
| 48 | 61807000 | R.H. sheet - Until car. 66799 | 1 |
| 49 | 61991900 | L.H. sheet - From car 66801 | 1 |
| 49 | 61807100 | L.H. sheet - Until car 66799 | 1 |
| 50 | 61806900 | Sheet | 2 |
| 51 | 61746100 | Tubular reinforcement | 2 |
| 52 | 60371606 | Reinforcement GTB | 2 |
| 53 | 60731300 | Plug | 2 |
| 54 | 14507187 | Plug | 2 |
| 55 | 61950900 | Protection - Not for SA | 1 |
| 56 | 61951000 | Protection - Not for SA | 1 |
| 57 | 61951100 | Protection - Not for SA | 1 |
| 58 | 62440600 | (V) L.H. front crame - From car 76081 | 1 |
| 58 | 62507800 | (N) L.H. front frame | 1 |
| 59 | 61842500 | Protection | 1 |
| 60 | 61097700 | R.H. bracket | 1 |
| 61 | 61097800 | L.H. bracket | 1 |
| 61 | 62354000 | Roof frame assembly GTB - From car 69369 | 1 |
| 61 | 60370905 | Roof frame assembly GTB - Until car 69367 | 1 |
| 32 | 82254300 | LH BRACKET | |
| 33 | 69129500 | ROLLER | |
| 1 | 9664 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Cadenino- -Leather- -Leather- -Valid | 1 |
| 1 | 9665 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Cadenino- -Leather- -Alcantara- stitching | 1 |
| 1 | 9690 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona + lining- -Leather- -Leather- | 1 |
| 1 | 9691 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona + lining- -Leather- -Alcantara- | 1 |
| 1 | 9666 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Daytona + lining- -Leather- -Leather- | 1 |
| 1 | 9667 | L.H. SEAT COMPLETE WITH GUDES -Easy entry- -Full OPT- -Daytona + lining- -Leather- -Alcantara- | 1 |
| 1 | 9692 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Logerzy- -Leather- -Leather- -Valid for | 1 |
| 1 | 9693 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Logerzy- -Leather- -Alcantara- -Valid for | 1 |
| 1 | 9668 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Logerzy- -Leather- -Leather- -Valid for | 1 |
| 1 | 9669 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Logerzy- -Leather- -Alcantara- -Valid | 1 |
| 1 | 9694 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Piping+Quilt- -Leather- -Leather- -Valid | 1 |
| 1 | 9695 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Piping+Quilt- -Leather- -Alcantara- -Valid | 1 |
| 1 | 9670 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Piping+Quilt- -Leather- -Leather- -Valid for USA and CDN- -For vehicles up to Ass. No. 86008 with seat with back panel without | 1 |
| 1 | 9671 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Piping+Quilt- -Leather- -Alcantara- | 1 |
| 1 | 9696 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Carbon- -Leather- -Leather- -Valid for | 1 |
| 1 | 9697 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Carbon- -Leather- -Alcantara- -Valid for | 1 |
| 1 | 9672 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Carbon- -Leather- -Leather- -Valid for | 1 |
| 1 | 9673 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Carbon- -Leather- -Alcantara- -Valid for | 1 |
| 1 | 9698 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona- -Carbon- -Leather- -Leather- | 1 |
| 1 | 9699 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona- -Carbon- -Leather- -Alcantara- | 1 |
| 1 | 9674 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Daytona- -Carbon- -Leather- | 1 |
| 1 | 9675 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Daytona- -Carbon- -Leather- | 1 |
| 1 | 9700 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Cadenino- -Carbon- -Leather- -Leather- | 1 |
| 1 | 9701 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Cadenino- -Carbon- -Leather- | 1 |
| 1 | 9676 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Cadenino- -Carbon- -Leather- -Leather--Valid for USA and CDN- -For vehicles up to Ass. No. 86008 with seat with back panel | 1 |
| 1 | 9677 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Cadenino- -Carbon- -Leather- | 1 |
| 1 | 9702 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona + lining- -Carbon- -Leather- | 1 |
| 1 | 9703 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona + lining- -Carbon- -Leather- | 1 |
| 1 | 9678 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Daytona + lining- -Carbon- -Leather- | 1 |
| 1 | 9679 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Daytona + lining- -Carbon- -Leather- | 1 |
| 1 | 9704 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Lozengy- -Carbon- -Leather- -Leather- | 1 |
| 1 | 9705 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Lozengy- -Carbon- -Leather- -Alcantara- stitching | 1 |
| 1 | 9680 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Lozengy- -Carbon- -Leather- | 1 |
| 1 | 9681 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Lozengy- -Carbon- -Leather- | 1 |
| 1 | 9706 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Piping + Quilt- -Carbon- -Leather- | 1 |
| 1 | 9707 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Piping + Quilt- -Carbon- -Leather- | 1 |
| 1 | 9682 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Piping + Quilt- -Carbon- -Leather- | 1 |
| 1 | 9683 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Piping + Quilt- -Carbon- -Leather- | 1 |
