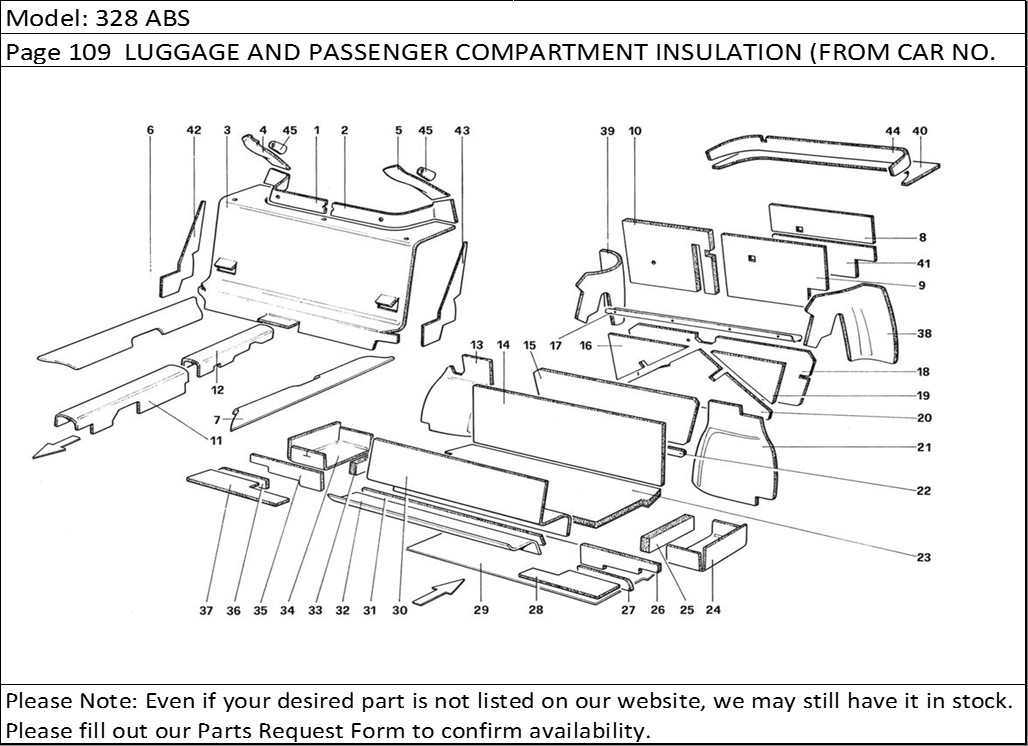

328 ABS Page 109 LUGGAGE AND PASSENGER COMPARTMENT INSULATION (FROM CAR NO. 66967 NOT FOR US AUS CH87 SA J)
Product Description
328 ABS Page 109 LUGGAGE AND PASSENGER COMPARTMENT INSULATION (FROM CAR NO. 66967 NOT FOR US AUS CH87 SA J)
Click on part number below to order. If unable to click on part number please fill out and submit Parts Request Form below to order.
| Location in Parts Diagram | Part # | Description | Quantity Used |
|---|---|---|---|
| 1 | 61984000 | Insulation | 1 |
| 2 | 61984100 | Insulation | 1 |
| 3 | 62488100 | Insulation GTS from 1988 | 1 |
| 3 | 61984200 | Insulation GTB | 1 |
| 3 | 61986800 | Insulation GTS until 1987 | 1 |
| 4 | 61984300 | Insulation | 1 |
| 5 | 61984400 | Insulation | 1 |
| 6 | 61984500 | Insulation GTB | 1 |
| 7 | 61984600 | Insulation GTB | 1 |
| 8 | 61985800 | Insulation GTB | 1 |
| 9 | 61985900 | Insulation GTB - LHD | 1 |
| 9 | 61990400 | Insulation GTB - RHD | 1 |
| 9 | 61990300 | Insulation GTS - RHD | 1 |
| 9 | 61987300 | Insulation GTS - LHD | 1 |
| 10 | 61990500 | Insulation GTB - RHD | 1 |
| 10 | 61985700 | Insulation GTB - LHD | 1 |
| 11 | 60218807 | Insulation RHD | 1 |
| 11 | 60109006 | Insulation LHD | 1 |
| 12 | 61860101 | Insulation LHD | 1 |
| 12 | 61860500 | Insulation RHD | 1 |
| 13 | 61798900 | Insulation | 1 |
| 14 | 61798800 | Insulation | 1 |
| 15 | 61799700 | Insulation | 1 |
| 16 | 61275800 | Insulation | 1 |
| 17 | 61830800 | Insulation fixing support | 1 |
| 18 | 61823600 | Insulation | 1 |
| 19 | 61275600 | insulation | 1 |
| 20 | 61275700 | Insulation | 1 |
| 21 | 61799000 | Insulation | 1 |
| 22 | 61799400 | Insulation | 1 |
| 23 | 61818900 | Insulation | 1 |
| 24 | 61799100 | Insulation | 1 |
| 25 | 61819000 | Insulation | 1 |
| 26 | 61799600 | Insulation | 1 |
| 27 | 61876000 | Insulation | 1 |
| 28 | 61875800 | Insulation | 1 |
| 29 | 61875400 | Insulation | 1 |
| 30 | 61799300 | Insulation | 1 |
| 31 | 61875900 | Insulation | 1 |
| 32 | 61875600 | Insulation | 1 |
| 33 | 61819100 | Insulation | 1 |
| 34 | 61799200 | Insulation | 1 |
| 35 | 61799500 | Insulation | 1 |
| 36 | 61876100 | Insulation | 1 |
| 37 | 61875700 | Insulation | 1 |
| 38 | 61278500 | R.H. insulation - C6 | 1 |
| 39 | 61278600 | L.H. insulation - C6 | 1 |
| 40 | 61987100 | Insulation GTS | 1 |
| 40 | 61985100 | Insulation GTB | 1 |
| 41 | 61984800 | Insulation GTB | 1 |
| 42 | 61987000 | Insulation GTS | 1 |
| 43 | 61986900 | Insulation GTS | 1 |
| 44 | 61985200 | Insulation | 1 |
| 45 | 61985300 | Insulation | 2 |
| 32 | 82254300 | LH BRACKET | |
| 33 | 69129500 | ROLLER | |
| 1 | 9664 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Cadenino- -Leather- -Leather- -Valid | 1 |
| 1 | 9665 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Cadenino- -Leather- -Alcantara- stitching | 1 |
| 1 | 9690 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona + lining- -Leather- -Leather- | 1 |
| 1 | 9691 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona + lining- -Leather- -Alcantara- | 1 |
| 1 | 9666 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Daytona + lining- -Leather- -Leather- | 1 |
| 1 | 9667 | L.H. SEAT COMPLETE WITH GUDES -Easy entry- -Full OPT- -Daytona + lining- -Leather- -Alcantara- | 1 |
| 1 | 9692 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Logerzy- -Leather- -Leather- -Valid for | 1 |
| 1 | 9693 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Logerzy- -Leather- -Alcantara- -Valid for | 1 |
| 1 | 9668 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Logerzy- -Leather- -Leather- -Valid for | 1 |
| 1 | 9669 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Logerzy- -Leather- -Alcantara- -Valid | 1 |
| 1 | 9694 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Piping+Quilt- -Leather- -Leather- -Valid | 1 |
| 1 | 9695 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Piping+Quilt- -Leather- -Alcantara- -Valid | 1 |
| 1 | 9670 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Piping+Quilt- -Leather- -Leather- -Valid for USA and CDN- -For vehicles up to Ass. No. 86008 with seat with back panel without | 1 |
| 1 | 9671 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Piping+Quilt- -Leather- -Alcantara- | 1 |
| 1 | 9696 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Carbon- -Leather- -Leather- -Valid for | 1 |
| 1 | 9697 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Carbon- -Leather- -Alcantara- -Valid for | 1 |
| 1 | 9672 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Carbon- -Leather- -Leather- -Valid for | 1 |
| 1 | 9673 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Carbon- -Leather- -Alcantara- -Valid for | 1 |
| 1 | 9698 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona- -Carbon- -Leather- -Leather- | 1 |
| 1 | 9699 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona- -Carbon- -Leather- -Alcantara- | 1 |
| 1 | 9674 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Daytona- -Carbon- -Leather- | 1 |
| 1 | 9675 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Daytona- -Carbon- -Leather- | 1 |
| 1 | 9700 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Cadenino- -Carbon- -Leather- -Leather- | 1 |
| 1 | 9701 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Cadenino- -Carbon- -Leather- | 1 |
| 1 | 9676 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Cadenino- -Carbon- -Leather- -Leather--Valid for USA and CDN- -For vehicles up to Ass. No. 86008 with seat with back panel | 1 |
| 1 | 9677 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Cadenino- -Carbon- -Leather- | 1 |
| 1 | 9702 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona + lining- -Carbon- -Leather- | 1 |
| 1 | 9703 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona + lining- -Carbon- -Leather- | 1 |
| 1 | 9678 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Daytona + lining- -Carbon- -Leather- | 1 |
| 1 | 9679 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Daytona + lining- -Carbon- -Leather- | 1 |
| 1 | 9704 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Lozengy- -Carbon- -Leather- -Leather- | 1 |
| 1 | 9705 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Lozengy- -Carbon- -Leather- -Alcantara- stitching | 1 |
| 1 | 9680 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Lozengy- -Carbon- -Leather- | 1 |
| 1 | 9681 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Lozengy- -Carbon- -Leather- | 1 |
| 1 | 9706 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Piping + Quilt- -Carbon- -Leather- | 1 |
| 1 | 9707 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Piping + Quilt- -Carbon- -Leather- | 1 |
| 1 | 9682 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Piping + Quilt- -Carbon- -Leather- | 1 |
| 1 | 9683 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Piping + Quilt- -Carbon- -Leather- | 1 |
