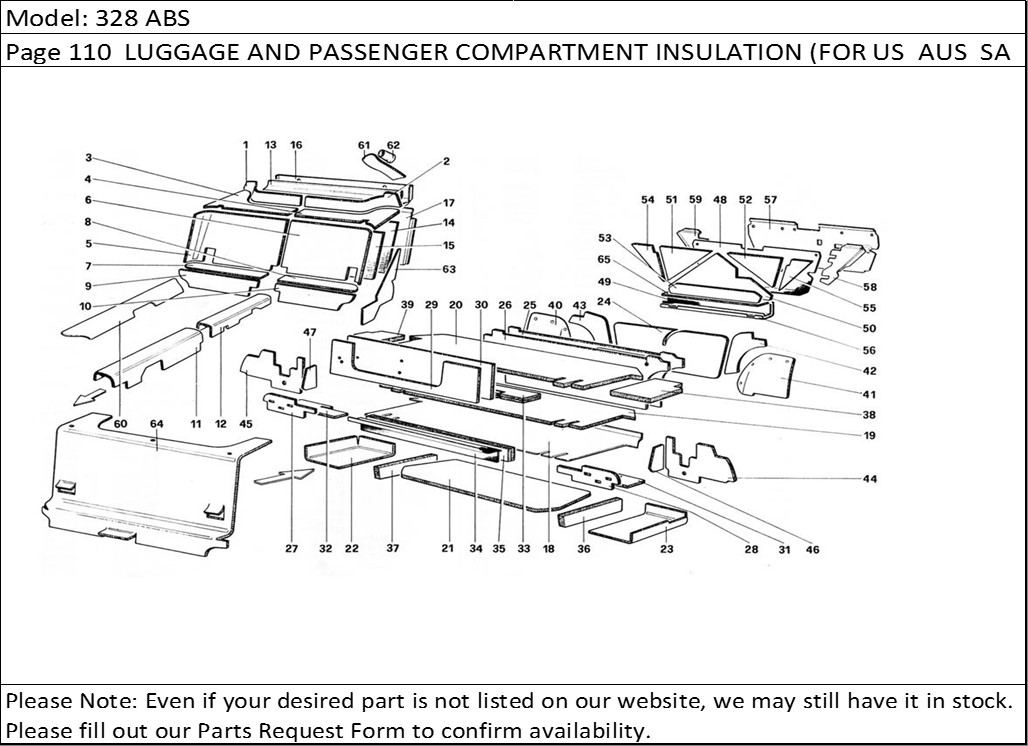

328 ABS Page 110 LUGGAGE AND PASSENGER COMPARTMENT INSULATION (FOR US AUS SA J)
Product Description
328 ABS Page 110 LUGGAGE AND PASSENGER COMPARTMENT INSULATION (FOR US AUS SA J)
Click on part number below to order. If unable to click on part number please fill out and submit Parts Request Form below to order.
| Location in Parts Diagram | Part # | Description | Quantity Used |
|---|---|---|---|
| 1 | 61964000 | InsulationFrom 67161 | 1 |
| 1 | 60352804 | InsulationUntil car 67159 | 1 |
| 1 | 60412608 | Insulation passenger compartment GTBUntil car 67159 | 1 |
| 1 | 60352705 | Insulation passenger compartment GTSUntil car 67159 | 1 |
| 2 | 61984100 | InsulationFrom car 67161 | 1 |
| 2 | 60352903 | InsulationUntil car 67159 | 1 |
| 3 | 60412202 | Insulation GTB | 1 |
| 3 | 60353000 | Insulation GTS | 1 |
| 4 | 60353109 | Insulation GTS | 1 |
| 4 | 60412301 | Insulation GTB | 1 |
| 5 | 60353208 | Insulation GTS | 1 |
| 5 | 60158201 | Insulation GTB | 1 |
| 6 | 60158300 | Insulation GTB | 1 |
| 6 | 60353307 | Insulation GTS | 1 |
| 7 | 60158409 | Insulation GTB | 1 |
| 8 | 60158508 | Insulation GTS | 1 |
| 9 | 60353604 | Insulation GTS | 1 |
| 9 | 60158607 | Insulation GTB | 1 |
| 10 | 60353703 | Insulation GTS | 1 |
| 10 | 60158706 | Insulation GTB | 1 |
| 11 | 60109006 | Front tunnel insulationFor US - J - SA | 1 |
| 11 | 60218807 | Front tunnel insulationFor AUS | 1 |
| 12 | 61860100 | Rear tunnel insulationFor US - J -SA | 1 |
| 12 | 61860500 | Rear tunnel insulationFor AUS | 1 |
| 13 | 60402104 | Insulation | 1 |
| 14 | 60500400 | Insulation GTB | 1 |
| 14 | 60402203 | Insulation GTS | 1 |
| 15 | 60580600 | R.H upper insulation GTB | 2 |
| 15 | 60501000 | Insulation GTS | 1 |
| 15 | 60580700 | Under insulation GTB | 4 |
| 15 | 60580400 | L. H upper insulation GTB | 2 |
| 15 | 60580500 | Central upper insulation GTB | 2 |
| 16 | 62475900 | Container for rear window insulation | 1 |
| 17 | 62335500 | Shield panel GTSFor AUS | 1 |
| 17 | 60314002 | Shield panel GTSFor US - J -SA | 1 |
| 17 | 62335900 | Shield panel GTBFor AUS | 1 |
| 17 | 60568600 | Shield Panel GTBFor US - J - SA | 1 |
| 18 | 61889300 | Insulation | 1 |
| 19 | 61889400 | Insulation | 1 |
| 20 | 61889500 | Insulation | 1 |
| 21 | 61889600 | Insulation | 1 |
| 22 | 61889700 | Insulation | 1 |
| 23 | 61889800 | Insulation | 1 |
| 24 | 61889900 | Insulation | 1 |
| 25 | 61890000 | Insulation | 1 |
| 26 | 61890100 | Insulation | 1 |
| 27 | 61890200 | Insulation | 1 |
| 28 | 61890300 | Insulation | 1 |
| 29 | 61890400 | Insulation | 1 |
| 30 | 61890600 | Insulation | 1 |
| 31 | 61890700 | Insulation | 1 |
| 32 | 61890800 | Insulation | 1 |
| 33 | 61890900 | Insulation | 1 |
| 34 | 61891000 | Insulation | 1 |
| 35 | 61891100 | Insulation | 1 |
| 36 | 61891200 | Insulation | 1 |
| 37 | 61891300 | Insulation | 1 |
| 38 | 61891400 | Insulation | 1 |
| 39 | 61891500 | Insulation | 1 |
| 40 | 61891600 | Insulation | 1 |
| 41 | 61891700 | Insulation | 1 |
| 42 | 61894600 | Insulation | 1 |
| 43 | 61894700 | Insulation | 1 |
| 44 | 61891800 | Insulation | 1 |
| 45 | 61891900 | Insulation | 1 |
| 46 | 61892000 | Insulation | 1 |
| 47 | 61894900 | Insulation | 1 |
| 48 | 61892100 | Insulation | 1 |
| 49 | 61892200 | Insulation | 1 |
| 50 | 61892300 | Insulation | 1 |
| 51 | 61892400 | Insulation | 1 |
| 52 | 61892500 | Insulation | 1 |
| 53 | 61892600 | Insulation | 1 |
| 54 | 61892700 | Insulation | 1 |
| 55 | 61892800 | Insulation | 1 |
| 56 | 61879300 | Under shield | 1 |
| 57 | 61879400 | Central shield | 1 |
| 58 | 61879500 | R.H. shiled | 1 |
| 59 | 61879600 | L.H. shiled | 1 |
| 60 | 61984600 | L.H. insulation GTBFrom car 67161 | 1 |
| 60 | 61984500 | R.H. insulation GTBFrom car 67161 | 1 |
| 61 | 61984300 | R.H. insulationFrom car 67161 | 1 |
| 61 | 61984400 | L.H. insulationFrom car 67161 | 1 |
| 62 | 61985300 | InsulationFrom car 67161 | 2 |
| 63 | 61986900 | L.H. insulation GTSFrom car 67161 | 1 |
| 63 | 61987000 | R.H. insulation GTSFrom car 67161 | 1 |
| 64 | 61984200 | Insulation GTSFrom car 67161 | 1 |
| 64 | 62488100 | Insulation GTS - From 1988 | 1 |
| 64 | 61986800 | Insulation GTS - Until 1987From car 67161 | 1 |
| 65 | 62349600 | Insulation | 1 |
