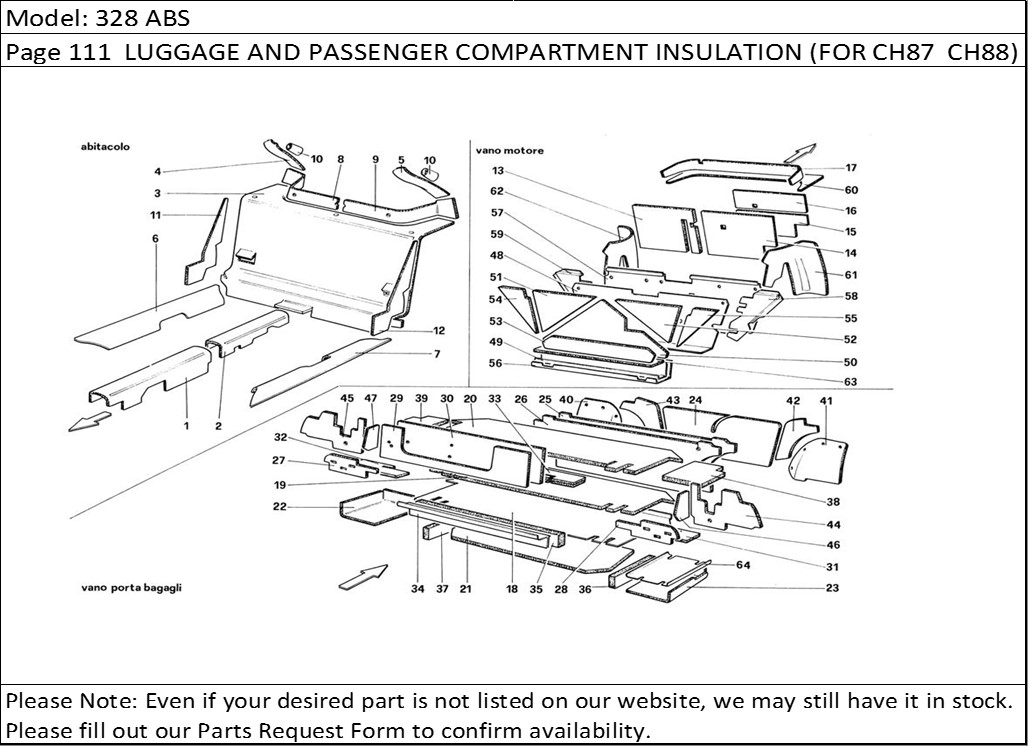

328 ABS Page 111 LUGGAGE AND PASSENGER COMPARTMENT INSULATION (FOR CH87 CH88)
Product Description
328 ABS Page 111 LUGGAGE AND PASSENGER COMPARTMENT INSULATION (FOR CH87 CH88)
Click on part number below to order. If unable to click on part number please fill out and submit Parts Request Form below to order.
| Location in Parts Diagram | Part # | Description | Quantity Used |
|---|---|---|---|
| 1 | 60109006 | Front tunnel insulation | 1 |
| 2 | 61860100 | Rear tunnel insulation | 1 |
| 3 | 61984200 | Insulation GTS | 1 |
| 3 | 61986800 | Insulation GTS - Until 1987 | 1 |
| 3 | 62488100 | Insulation GTS - From 1988 | 1 |
| 4 | 61984300 | Insulation | 1 |
| 5 | 61984400 | Insulation | 1 |
| 6 | 61984500 | Insulation GTB | 1 |
| 7 | 61984600 | Insulation GTB | 1 |
| 8 | 61984000 | Insulation | 1 |
| 9 | 61984100 | Insulation | 1 |
| 10 | 61985300 | Insulation | 2 |
| 11 | 61987000 | Insulation GTS | 1 |
| 12 | 61986900 | Insulation GTS | 1 |
| 13 | 61985700 | Insulation | 1 |
| 14 | 61985900 | Insulation GTB | 1 |
| 14 | 61987300 | Insulation GTS | 1 |
| 15 | 61984800 | Insulation GTB | 1 |
| 16 | 61985800 | Insulation GTB | 1 |
| 17 | 61985200 | Insulation | 1 |
| 18 | 61889300 | Insulation | 1 |
| 19 | 61889400 | Insulation | 1 |
| 20 | 61889500 | Insulation | 1 |
| 21 | 61889600 | Insulation | 1 |
| 22 | 61889700 | Insulation | 1 |
| 23 | 61889800 | Insulation C7 | 1 |
| 23 | 62431300 | Insulation C8 | 1 |
| 32 | 61990800 | Insulation | 1 |
| 33 | 61890900 | Insulation | 1 |
| 34 | 61891000 | Insulation | 1 |
| 35 | 61891100 | Insulation | 1 |
| 36 | 61891200 | Insulation | 1 |
| 37 | 61891300 | Insulation | 1 |
| 38 | 61891400 | Insulation | 1 |
| 39 | 61891500 | Insulation | 1 |
| 40 | 61891600 | Insulation | 1 |
| 41 | 61891700 | Insulation | 1 |
| 42 | 61894600 | Insulation | 1 |
| 43 | 61894700 | Insulation | 1 |
| 44 | 61891800 | Insulation | 1 |
| 45 | 61891900 | Insulation | 1 |
| 46 | 61892000 | Insulation | 1 |
| 47 | 61894900 | Insulation | 1 |
| 48 | 61892100 | Insulation | 1 |
| 49 | 61892200 | Insulation | 1 |
| 50 | 61892300 | Insulation | 2 |
| 51 | 61892400 | Insulation | 1 |
| 52 | 61892500 | Insulation | 1 |
| 53 | 61892600 | Insulation | 1 |
| 54 | 61892700 | Insulation | 1 |
| 55 | 61892800 | Insulation | 1 |
| 56 | 61879300 | Under shield | 1 |
| 57 | 61879400 | Central shield C7 | 1 |
| 57 | 62431000 | Central shield C8 | 1 |
| 58 | 61879500 | .R.H. shield | 1 |
| 59 | 61879600 | L.H. shield | 1 |
| 60 | 61987100 | Insulation GTS | 1 |
| 60 | 61985100 | Insulation GTB | 1 |
| 61 | 61278500 | Insulation | 1 |
| 62 | 61278600 | Insulation | 1 |
| 63 | 62349600 | Insulation | 1 |
| 64 | 62431400 | Plate C8 | 1 |
