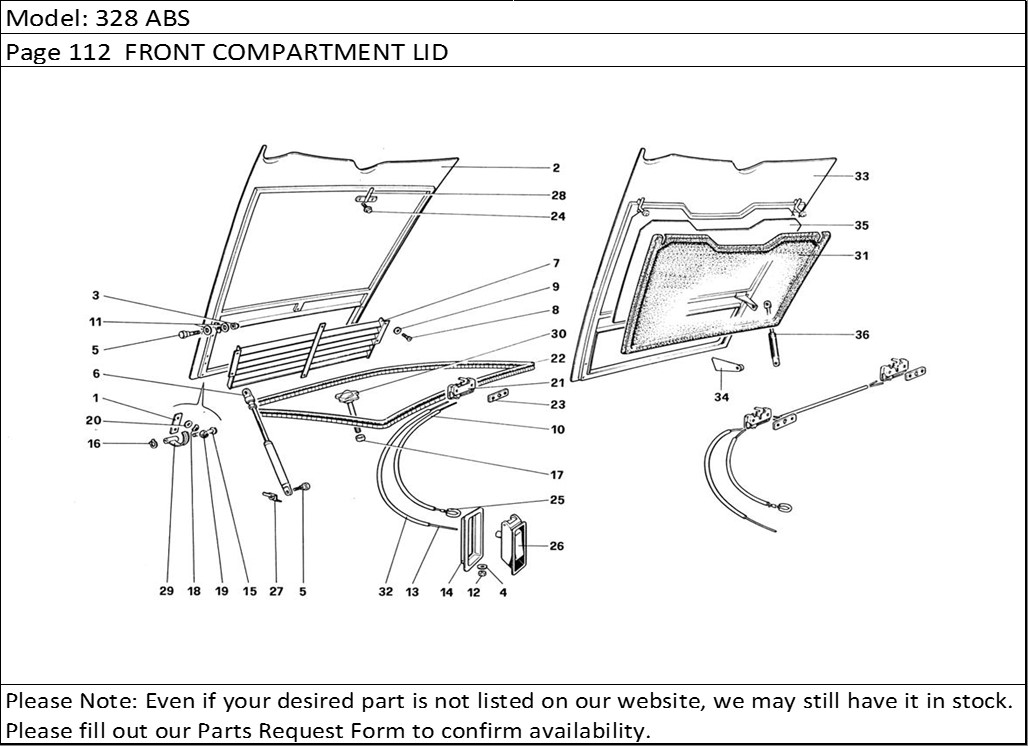

328 ABS Page 112 FRONT COMPARTMENT LID
Product Description
328 ABS Page 112 FRONT COMPARTMENT LID
Click on part number below to order. If unable to click on part number please fill out and submit Parts Request Form below to order.
| Location in Parts Diagram | Part # | Description | Quantity Used |
|---|---|---|---|
| 1 | 61751900 | Hinge plate | 2 |
| 2 | 61751500 | Bonnet LHD - Not for US-J-SA | 1 |
| 2 | 61756000 | Bonnet US-J-SA | 1 |
| 3 | 12577811 | Nut | 1 |
| 4 | 10615371 | Washer | 1 |
| 5 | 40161903 | Pin | 2 |
| 6 | 60118007 | Support - Until exhaustion | 1 |
| 7 | 61752500 | Grill | 1 |
| 7 | 61752510 | BONNET GRILLE | 1 |
| 8 | 15688308 | Screw | 6 |
| 9 | 61276300 | Washer | 6 |
| 10 | 61992700 | Sheath for safety cable | 1 |
| 11 | 12638101 | Washer | 2 |
| 12 | 15896411 | Nut | 1 |
| 13 | 60276904 | Cable | 1 |
| 14 | 60765500 | Flange GTB | 1 |
| 15 | 62402100 | Pin - After exhaustion 60061504 | 2 |
| 15 | 60061504 | Pin - Until exhaustion | 2 |
| 16 | 11087976 | Seeger- Only with pin 62402100 | 2 |
| 16 | 60962400 | Seeger - Only with pin 60061504 | 2 |
| 17 | 61609500 | (V) Spacer | 1 |
| 17 | 61426100 | (N) Spacer | 1 |
| 18 | 106852 | Washer | 4 |
| 19 | 16100811 | Nut | 4 |
| 20 | 12646701 | Washer | 4 |
| 21 | 60277407 | Lock | 2 |
| 22 | 61826600 | Gasket | 1 |
| 23 | 60276508 | Plate | 2 |
| 24 | 13835871 | (V) Screw - Not for US - J - SA | 2 |
| 25 | 60126703 | Safety cabe - Not for J - SA - US | 1 |
| 25 | 60277100 | Safety cable - US - J - SA | 1 |
| 26 | 60297207 | (V) Handle -US-J-SA | 1 |
| 26 | 61756700 | (V) Handle with cable - Not for US - J - SA | 1 |
| 26 | 62498100 | (N) Handle with cable | 1 |
| 27 | 61748600 | Bracket for support (L.H. side) | 1 |
| 28 | 61090400 | (V) Pin lock - Not fo''r US-J-SA | 1 |
| 29 | 60275302 | Hing arm | 2 |
| 30 | 62532200R | (N) Wind nut LHD - Not for SA | 1 |
| 30 | 61609400 | (V) Wind nut | 1 |
| 30 | 62532200 | (N) Wind nut LHD - Not for SA | 1 |
| 30 | 61609400R | Wind Nut | 1 |
| 30 | 61609400 | (N) Wind nut. RHD - SA | 1 |
| 31 | 62575900 | Carpet | 1 |
| 32 | 60277209 | Sheath | 1 |
| 33 | 62483100 | (V) Bonnet LHD | 1 |
| 33 | 62619200 | (N) Bonnet -US-J-SA - With ABS | 1 |
| 33 | 62483900 | (N) Bonnet -US-J-SA - Without ABS | 1 |
| 33 | 62548600 | (V) Bonnet RHD | 1 |
| 33 | 62483500 | (V) Bonnet RHD | 1 |
| 33 | 62486200 | (N) Bonnet LHD | 1 |
| 34 | 62484300 | Bracket for support (R.H. side) | 1 |
| 35 | 62576000 | (N) Adhesive | 1 |
| 36 | 62380500 | Support - After exhaustion 60118007 | 1 |
| 32 | 82254300 | LH BRACKET | |
| 33 | 69129500 | ROLLER | |
