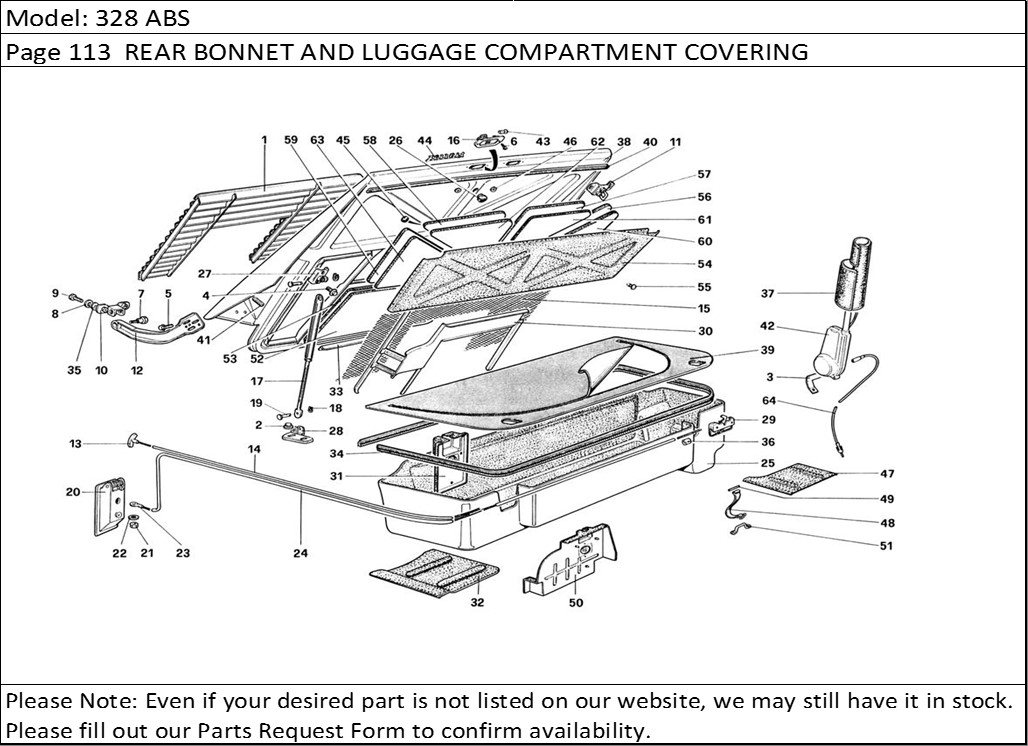

328 ABS Page 113 REAR BONNET AND LUGGAGE COMPARTMENT COVERING
Product Description
328 ABS Page 113 REAR BONNET AND LUGGAGE COMPARTMENT COVERING
Click on part number below to order. If unable to click on part number please fill out and submit Parts Request Form below to order.
| Location in Parts Diagram | Part # | Description | Quantity Used |
|---|---|---|---|
| 1 | 61896300 | Grille | 1 |
| 2 | 13832101 | Nut | 4 |
| 4 | 13835871 | Screw | 4 |
| 5 | 13838971 | Screw | 6 |
| 6 | 20297800 | Screw | 4 |
| 7 | 60017506 | Pin | 2 |
| 8 | 12646701 | Washer | 4 |
| 9 | 16043321 | Screw | 4 |
| 10 | 60257706 | R.H. fixed hinge | 1 |
| 10 | 60257805 | L.H. fixed hinge | 1 |
| 11 | 60560100 | Pin | 2 |
| 12 | 60256906 | L.H. mobile hinge | 1 |
| 12 | 60256807 | R.H. mobile hinge | 1 |
| 13 | 60510500 | Safety cable | 1 |
| 14 | 60024502 | Sheath, safery cable | 1 |
| 15 | 60434602 | Net under the grille | 1 |
| 16 | 109388 | Number plate light (= 60044906) | 2 |
| 17 | 60592800 | Support | 2 |
| 18 | 11087876 | Seeger | 4 |
| 19 | 60599500 | Pin | 4 |
| 20 | 60086105 | Bonnet handle | 1 |
| 21 | 15896411 | Nut | 1 |
| 22 | 10615371 | Washer | 1 |
| 23 | 60277001 | Cable | 1 |
| 24 | 60191509 | Sehath bonnet cable R.H.D. | 1 |
| 24 | 60024601 | Sheath bonnet cable L.H.D. | 1 |
| 25 | 61814800 | Central carpet For US - J - SA - AUS - C7 - C8 | 1 |
| 25 | 61813100 | CarpetNot for US- J-SA - C7 - AUS -C8 | 1 |
| 26 | 112934 | Plug | 1 |
| 27 | 60597700 | R.H. bracket | 1 |
| 27 | 60597800 | L.H. bracket | 1 |
| 28 | 60598000 | L.H. bracket | 1 |
| 28 | 60597900 | R.H. bracket | 1 |
| 29 | 60277407 | Lock | 2 |
| 30 | 60735800 | Water shield panel | 1 |
| 31 | 61903700 | Shield completeNot for R.H.D. - US - J - SA - C7 - C8 | 2 |
| 31 | 61927700 | Shield, complete - R.H.D. | 2 |
| 32 | 61815000 | L.H. carpetFor US - J - SA - AUS - C7 - C8 | 1 |
| 32 | 61813200 | L.H. carpetNot for US- J-SA -AUS- C7 - C8 | 1 |
| 33 | 60218906 | Drip | 1 |
| 34 | 60286200 | Gasket | 1 |
| 35 | 10615671 | Washer | 4 |
| 36 | 60276607 | Clamp | 2 |
| 37 | 61903600 | Protection | 1 |
| 38 | 61900300 | Bonnet - With spoyler seat(Can replace 61021100) | 1 |
| 38 | 61900200 | Bonnet - Without spoyler seatNot for US - J - SA (Can replace 60525400) | 1 |
| 39 | 60114808 | Trunk covering | 1 |
| 40 | 60564600 | Gasket | 1 |
| 41 | 60568000 | Rubber piece | 2 |
| 42 | 61717900 | Radio aerialAfter exhaustion use 61897500 | 1 |
| 43 | 14145990 | Lamp -For US -J | 2 |
| 43 | 101524 | Lamp - Not for US -J | 2 |
| 44 | 610250000 | Ferrari name | 1 |
| 45 | 112926 | Plug | 1 |
| 46 | 60324506 | Clip | 2 |
| 47 | 61814900 | Lambda R.H. carpetUS - J - SA - AUS - C7 - C8 | 1 |
| 48 | 20171005 | Belt - US - J - SA - AUS Until 31-5-87 | 1 |
| 49 | 20103107 | Pin - US - J - SA - AUSUntil 31-5-87 | 1 |
| 50 | 61904100 | L.H. plateUS - J - SA - AUS - C7 - C8 | 1 |
| 50 | 61904000 | R.H. plateUS - J - SA - AUS - C7 - C8 | 1 |
| 51 | 30029904 | Bracket - US - J - SA - AUS - Until 31-58-7 | 1 |
| 52 | 61940100 | Insulation CH | 1 |
| 53 | 61940200 | Insulation CH | 1 |
| 54 | 61901300 | Carpet for bonnet | 1 |
| 55 | 14592787 | Plug | 8 |
| 56 | 61900500 | Insulation | 1 |
| 57 | 61900600 | Insulation | 1 |
| 58 | 61900700 | Insulation | 1 |
| 59 | 61900800 | Insulation | 1 |
| 60 | 61900900 | Insulation | 1 |
| 61 | 61901000 | Insulation | 1 |
| 62 | 61901100 | Insulation | 1 |
| 63 | 61901200 | Insulation | 1 |
| 64 | 60895500 | Cable for radio aerial | 1 |
