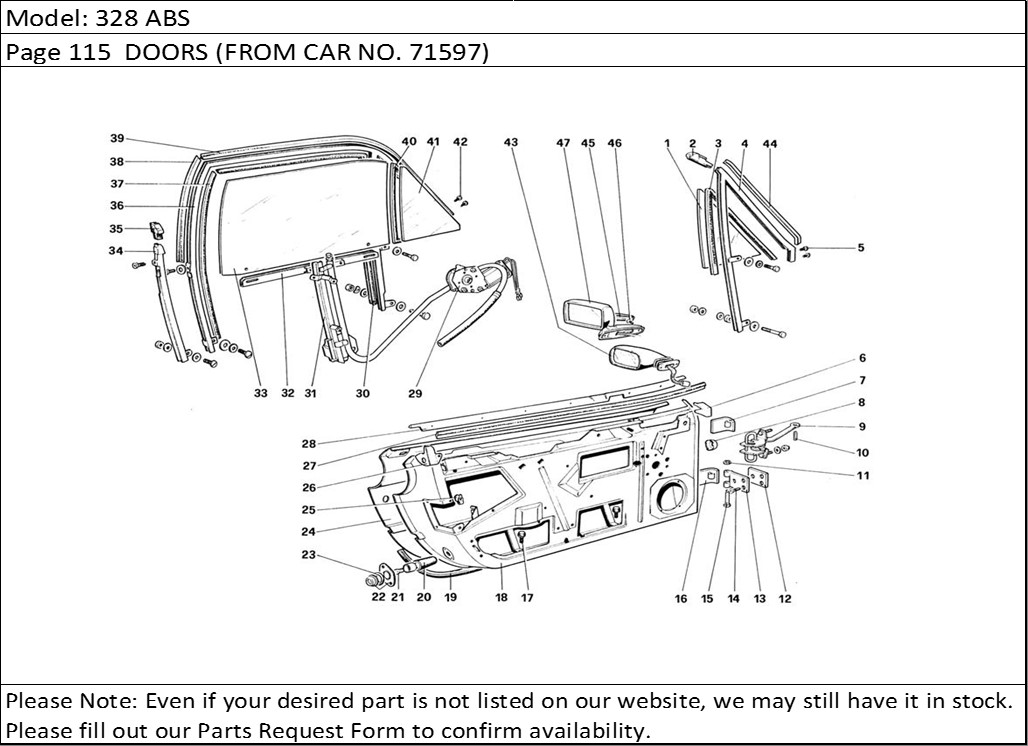

328 ABS Page 115 DOORS (FROM CAR NO. 71597)
Product Description
328 ABS Page 115 DOORS (FROM CAR NO. 71597)
Click on part number below to order. If unable to click on part number please fill out and submit Parts Request Form below to order.
| Location in Parts Diagram | Part # | Description | Quantity Used |
|---|---|---|---|
| - | 62312200 | R.H. window lifting guide with motor | 1 |
| - | 62312300 | L.H. window lifting guide with motor | 1 |
| 1 | 62344400 | R.H. glass - GTS | 1 |
| 2 | 60265907 | Upper L.H. terminal - GTS | 1 |
| 2 | 60265808 | Upeer R.H. terminal - GTS | 1 |
| 3 | 60519100 | Weatherstrip for fixed glass - GTS | 2 |
| 4 | 60292109 | Front frame for L.H. glass - GTS | 1 |
| 4 | 60292000 | Front frame for R.H. glass - GTS | 1 |
| 5 | 60815200 | Screw - GTS | 4 |
| 6 | 60269107 | Front L.H. moulding - GTB | 1 |
| 6 | 60602200 | Front L.H. moulding - GTS | 1 |
| 6 | 60269008 | Front R.H. moulding - GTB | 1 |
| 6 | 60602100 | Front R.H. moulding - GTS | 1 |
| 7 | 60265501 | Upper mobile hinge, L.H. | 1 |
| 7 | 60265402 | Upper mobile hinge, R.H.Con particolari | 1 |
| 8 | 40127409 | Plug | 3 |
| 9 | 61260800 | Tie rod | 2 |
| 10 | 60730200 | Pin | 2 |
| 11 | 11065775 | Seeger | 2 |
| 12 | 60269404 | Plate for fixed hinge | 4 |
| 12 | 60265600 | Lower hinge, complete (13+15+16) | 2 |
| 12 | 60265204 | Upper hinge (R.H.), complete (7+13+15) | 1 |
| 12 | 60265303 | Upper hinge (L.H.), complete (7+13+15) | 1 |
| 13 | 60251204 | Fixed hinge | 4 |
| 14 | 50206408 | Screw | 12 |
| 15 | 20074100 | Pin for hinge | 4 |
| 16 | 50031608 | Lower mobile hingeCon particolari | 2 |
| 17 | 62302700 | Plug | 4 |
| 18 | 61873500* | L.H. door - GTS | 1 |
| 18 | 61814300* | L.H. door - GTS | 1 |
| 18 | 61809800* | R.H. door - GTB | 1 |
| 18 | 61857200* | L.H. door -GTB For R.H. D. | 1 |
| 18 | 61809900* | L.H. door -GTBFor US | 1 |
| 18 | 61967100* | L.H. door -GTBFor AUS | 1 |
| 18 | 62303100* | L.H. door -GTB-LHDNot for | 1 |
| 18 | 61967000* | R.H. door - GTB | 1 |
| 18 | 62303000* | R.H. door - GTB-LHD | 1 |
| 18 | 61814200* | R.H. door -GTS and SA | 1 |
| 18 | 62326600* | L.H. door - GTS-LHD | 1 |
| 18 | 61967500* | L.H. door - GTS | 1 |
| 18 | 62326500* | R.H. door - GTS-LHDUS - SA | 1 |
| 18 | 61857100* | R.H. door -GTB | 1 |
| 18 | 61967400* | R.H. door -GTS | 1 |
| 18 | 61873400* | R.H. door -GTSNot for AUS | 1 |
| 19 | 60159605 | Under gasket | 2 |
| 20 | 60101201 | Protection for door marker light | 2 |
| 21 | 101525 | Lamp | 2 |
| 22 | 60291200 | Open door marker light | 2 |
| 23 | 60591000 | Gasket | 2 |
| 24 | 62306300 | R.H. coveringCon particolari | 1 |
| 24 | 62306400 | L.H. covering | 1 |
| 25 | 20037008 | Clip | 8 |
| 26 | 60602000 | Rear L.H. moulding - GTS | 1 |
| 26 | 60601900 | Rear R.H. moulding - GTS | 1 |
| 26 | 60269305 | Rear L.H. moulding - GTB | 1 |
| 26 | 60269206 | Rear R.H. moulding - GTB | 1 |
| 27 | 60827600 | Outside gasket, L.H. | 1 |
| 27 | 60827500 | Outside gasket, R.H. | 1 |
| 28 | 61861800 | L.H. moulding | 1 |
| 28 | 61861700 | R,H, moulding | 1 |
| 29 | 62312500 | L.H. window motor | 1 |
| 29 | 62312400 | R.H. window motor | 1 |
| 30 | 60302205 | Front channel for glass - GTS | 2 |
| 30 | 60302106 | Front channel for glass - GTB | 2 |
| 31 | 62312600 | R.H. window lifting guide | 1 |
| 31 | 62312700 | L.H. window lifting guide | 1 |
| 32 | 61909800 | Base for L.H. glass | 1 |
| 32 | 61909700 | Base for R.H. glass | 1 |
| 33 | 60263902 | L.H. mobile glass - GTB | 1 |
| 33 | 60162409 | R.H. mobile glass - GTS | 1 |
| 33 | 60263803 | R.H. mobile glass - GTB | 1 |
| 33 | 60162508 | L.H. mobile glass - GTS | 1 |
| 34 | 60292307 | Rear glass frame (L.H.) - GTS | 1 |
| 34 | 60292208 | Rear glass frame (R.H.) - GTS | 1 |
| 35 | 60266103 | L.H. terminal - GTS | 1 |
| 35 | 60266004 | R.H. terminal - GTS | 1 |
| 36 | 61443600 | L.H. glass frame - GTB | 1 |
| 36 | 61443500 | R.H. glass frame- GTB | 1 |
| 37 | 60302205 | Rear channel for glass - GTB | 2 |
| 37 | 60343308 | Rear channel for glass - GTS | 2 |
| 38 | 60278405 | Gasket - GTB | 2 |
| 39 | 60278504 | Gasket - GTS | 2 |
| 40 | 60322500 | Weatherstrip for fixed glass - GTB | 2 |
| 41 | 60264504 | L.H. fixed glass - GTB | 1 |
| 41 | 60264405 | R.H. fixed glass-GTB | 1 |
| 42 | 20286704 | Screw - GTB | 4 |
| 43 | 60812800 | External mirror (LH.)-For AUS | 1 |
| 43 | 61021800 | External mirror (LH.)-Not for US-RHD-SA | 1 |
| 43 | 61172700 | External mirror (LH.)-For RHD - Not for AUS | 1 |
| 43 | 61990200 | External mirror (R.H.)-For AUS | 1 |
| 43 | 61172800 | External mirror (R.H.)-For RHD - Not for AUS | 1 |
| 43 | 61021900 | External mirror (R.H.)-Not for US-RHD-SA | 1 |
| 44 | 60343100 | Gasket - GTS | 2 |
| 45 | 60991600 | Cover - For US - SA | 2 |
| 46 | 13297611 | Screw - For US - SA | 6 |
| 47 | 61095600 | External mirror (R.H.) - For US-SA | 1 |
| 47 | 60812600 | External mirror (L.H.) - For US-SA | 1 |
| 47 | 62512400 | Mirror (L.H.) with horse - For US - J - SA | 1 |
| 47 | 62512500 | Mirror (R.H.) with horse - For US - J - SA | 1 |
| 32 | 82254300 | LH BRACKET | |
| 33 | 69129500 | ROLLER | |
| 1 | 9664 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Cadenino- -Leather- -Leather- -Valid | 1 |
| 1 | 9665 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Cadenino- -Leather- -Alcantara- stitching | 1 |
| 1 | 9690 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona + lining- -Leather- -Leather- | 1 |
| 1 | 9691 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona + lining- -Leather- -Alcantara- | 1 |
| 1 | 9666 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Daytona + lining- -Leather- -Leather- | 1 |
| 1 | 9667 | L.H. SEAT COMPLETE WITH GUDES -Easy entry- -Full OPT- -Daytona + lining- -Leather- -Alcantara- | 1 |
| 1 | 9692 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Logerzy- -Leather- -Leather- -Valid for | 1 |
| 1 | 9693 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Logerzy- -Leather- -Alcantara- -Valid for | 1 |
| 1 | 9668 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Logerzy- -Leather- -Leather- -Valid for | 1 |
| 1 | 9669 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Logerzy- -Leather- -Alcantara- -Valid | 1 |
| 1 | 9694 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Piping+Quilt- -Leather- -Leather- -Valid | 1 |
| 1 | 9695 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Piping+Quilt- -Leather- -Alcantara- -Valid | 1 |
| 1 | 9670 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Piping+Quilt- -Leather- -Leather- -Valid for USA and CDN- -For vehicles up to Ass. No. 86008 with seat with back panel without | 1 |
| 1 | 9671 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Piping+Quilt- -Leather- -Alcantara- | 1 |
| 1 | 9696 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Carbon- -Leather- -Leather- -Valid for | 1 |
| 1 | 9697 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Carbon- -Leather- -Alcantara- -Valid for | 1 |
| 1 | 9672 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Carbon- -Leather- -Leather- -Valid for | 1 |
| 1 | 9673 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Carbon- -Leather- -Alcantara- -Valid for | 1 |
| 1 | 9698 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona- -Carbon- -Leather- -Leather- | 1 |
| 1 | 9699 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona- -Carbon- -Leather- -Alcantara- | 1 |
| 1 | 9674 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Daytona- -Carbon- -Leather- | 1 |
| 1 | 9675 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Daytona- -Carbon- -Leather- | 1 |
| 1 | 9700 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Cadenino- -Carbon- -Leather- -Leather- | 1 |
| 1 | 9701 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Cadenino- -Carbon- -Leather- | 1 |
| 1 | 9676 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Cadenino- -Carbon- -Leather- -Leather--Valid for USA and CDN- -For vehicles up to Ass. No. 86008 with seat with back panel | 1 |
| 1 | 9677 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Cadenino- -Carbon- -Leather- | 1 |
| 1 | 9702 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona + lining- -Carbon- -Leather- | 1 |
| 1 | 9703 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona + lining- -Carbon- -Leather- | 1 |
| 1 | 9678 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Daytona + lining- -Carbon- -Leather- | 1 |
| 1 | 9679 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Daytona + lining- -Carbon- -Leather- | 1 |
| 1 | 9704 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Lozengy- -Carbon- -Leather- -Leather- | 1 |
| 1 | 9705 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Lozengy- -Carbon- -Leather- -Alcantara- stitching | 1 |
| 1 | 9680 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Lozengy- -Carbon- -Leather- | 1 |
| 1 | 9681 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Lozengy- -Carbon- -Leather- | 1 |
| 1 | 9706 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Piping + Quilt- -Carbon- -Leather- | 1 |
| 1 | 9707 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Piping + Quilt- -Carbon- -Leather- | 1 |
| 1 | 9682 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Piping + Quilt- -Carbon- -Leather- | 1 |
| 1 | 9683 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Piping + Quilt- -Carbon- -Leather- | 1 |
