328 ABS Page 116 DOORS (FROM CAR NO. 71597)
Product Description
328 ABS Page 116 DOORS (FROM CAR NO. 71597)
Click on part number below to order. If unable to click on part number please fill out and submit Parts Request Form below to order.

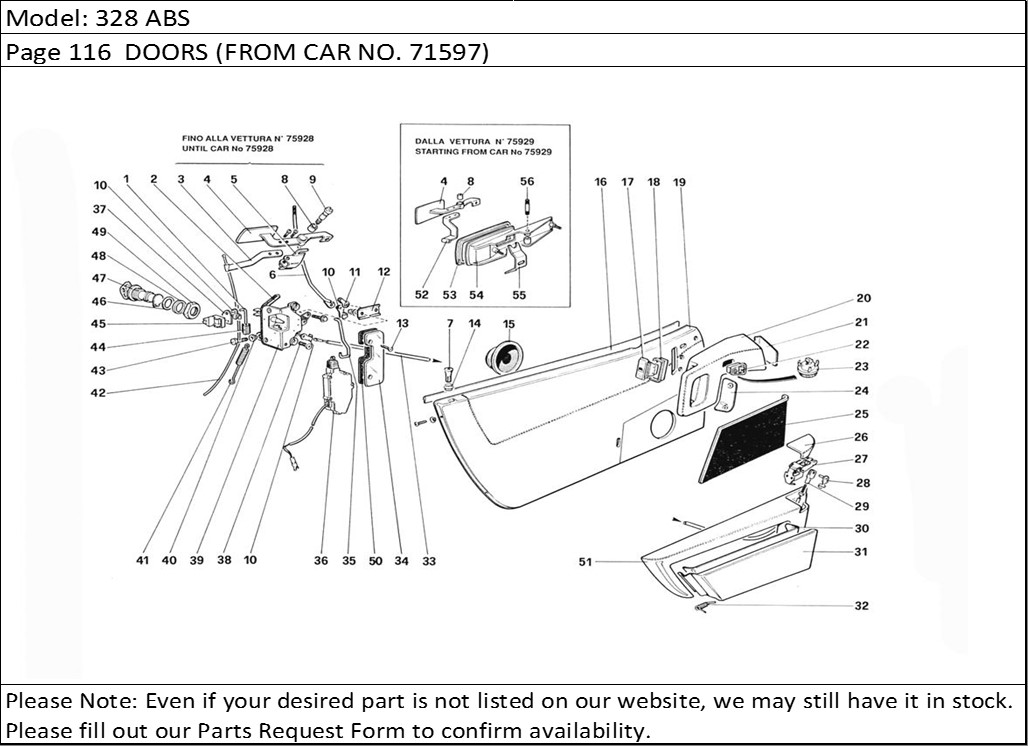

| Location in Parts Diagram | Part # | Description | Quantity Used |
|---|---|---|---|
| 1 | 60709000 | Tie rod | 1 |
| 2 | 60566200 | Gasket | 1 |
| 3 | 62313400 | R.H. lock control lever | 1 |
| 4 | 61955800 | R.H. outside handle | 1 |
| 4 | 61955900 | L.H. outside handle | 1 |
| 5 | 62316000 | Support for L.H. handle | 2 |
| 5 | 62313600 | Support for R.H. handle | 2 |
| 6 | 61923000 | Upper safety rod, L.H. | 8 |
| 6 | 61920200 | Upper safety rod, R.H. | 2 |
| 7 | 20170403 | Knob for fafety rod | 2 |
| 8 | 61956100 | Bush | 2 |
| 9 | 61956000 | Hinge pin for handle | 4 |
| 10 | 40063208 | Clip | 2 |
| 11 | 60813500 | Clip | 2 |
| 12 | 12359000 | Lever for door locking device | 2 |
| 13 | 13296915 | Screw | 2 |
| 14 | 40162307 | Bushing for safety rod | 1 |
| 15 | 61835200 | Loud speaker | 3 |
| 16 | 61811100 | Inner gasket | 1 |
| 17 | 126818 | L.H. window control switch | 1 |
| 17 | 126817 | R.H. window control switch | 1 |
| 18 | 61896600 | Switchs frame | 1 |
| 19 | 61997000 | R.H. inner panel+covering | 1 |
| 19 | 61998200 | R.H. covering | 1 |
| 19 | 61997100 | L.H. inner panel+covering | 1 |
| 19 | 61998300 | L.H. covering | 1 |
| 20 | 61997500 | L.H. handle with covering LHD | 1 |
| 20 | 62337300 | R.H. handle with covering RHD | 1 |
| 20 | 61997400 | R.H. handle with covering LHD | 1 |
| 20 | 62337400 | L.H. handle with covering RHD | 2 |
| 21 | 61997600 | R.H. covered panel | 1 |
| 21 | 61997700 | L.H. covered panel | 1 |
| 22 | 61803100 | Outside mirror switch | 1 |
| 23 | 61804700 | Light | 1 |
| 24 | 62329600 | R.H. covered | 1 |
| 24 | 62329700 | L.H. covered | 1 |
| 25 | 61998500 | L.H. panel, lower covering | 1 |
| 25 | 61998400 | R.H. panel, lower covering | 1 |
| 26 | 61994700 | L.H. handle not covered | 2 |
| 26 | 61994600 | R.H. handle not covered | 2 |
| 26 | 62330700 | Covering for R.H. handle | 2 |
| 26 | 62357100 | Covering for L.H. handle | 1 |
| 27 | - | Hinge | 1 |
| 28 | 61841400 | Pin | 1 |
| 29 | 62332000 | Fork | 1 |
| 30 | 62304400 | R.H. covered interior tor pocket | 1 |
| 30 | 62304500 | L.H. covered interior for pocket | 1 |
| 31 | 62304100 | L.H. pocket with covering | 1 |
| 31 | 62311000 | Covering | 1 |
| 31 | 62310900 | Covering | 1 |
| 31 | 62304000 | R.H. pocket with covering | 2 |
| 32 | 62311700 | Spring | 2 |
| 32 | 62311800 | Spring | 2 |
| 33 | 62346600 | Cable for inside door handle | 2 |
| 34 | 60304805 | Moulding for R.H. block | 1 |
| 34 | 60304904 | Moulding for L.H. block | 1 |
| 35 | 61973500 | Lower safety rod L.H. | 1 |
| 35 | 61973600 | Lower safety rod R.H. | 1 |
| 36 | 61811300 | Door locking deviceUntil exhaustion | 2 |
| 36 | 62437700 | Door locking deviceAfter exhaustion 61811300 | 2 |
| 37 | 60709100 | Bracket | 2 |
| 38 | 20298303 | Screw | 8 |
| 39 | 20170809 | R.H. lock | 1 |
| 39 | 20170908 | L.H. lock | 1 |
| 40 | 20089504 | Bush | 2 |
| 41 | 60046000 | Return spring handle | 2 |
| 42 | 61822400 | Cable for door handle | 2 |
| 43 | 60088705 | Screw | 2 |
| 44 | 40133902 | Terminal | 2 |
| 45 | 60606500 | R.H. block | 1 |
| 45 | 60606600 | L.H. block | 1 |
| 46 | 20181103 | Gasket | 2 |
| 47 | - | doors + box for tunnerl + griglls | 1 |
| 47 | 61819600 | Locks GTB | 2 |
| 47 | - | doors + box for tunnerl | 2 |
| 47 | 50371608 | Block, R.H. and L.H. door lock | 2 |
| 47 | 61817500 | Locks GTS | 1 |
| 48 | 20035804 | Spacer | 2 |
| 49 | 20063202 | Ring nut | 2 |
| 50 | 62423300 | R.H. gasket | 1 |
| 50 | 62423400 | L.H. gasket | 1 |
| 51 | 61996900 | Covered L.H. armrest | 1 |
| 51 | 61996800 | Covered R.H. armrest | 1 |
| 52 | 62407900 | L.H. lock control lever | 1 |
| 52 | 62407800 | R.H. lock control lever | 1 |
| 53 | 62407500 | Gasket | 2 |
| 54 | 62408100 | L.H. seat handle | 1 |
| 54 | 62408000 | R.H. seat handle | 1 |
| 55 | 62407700 | R.H. bracket handle | 1 |
| 55 | 62407600 | L.H. bracket handle | 1 |
| 56 | 62407400 | Pin | 2 |
| 32 | 82254300 | LH BRACKET | |
| 33 | 69129500 | ROLLER | |
| 1 | 9664 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Cadenino- -Leather- -Leather- -Valid | 1 |
| 1 | 9665 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Cadenino- -Leather- -Alcantara- stitching | 1 |
| 1 | 9690 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona + lining- -Leather- -Leather- | 1 |
| 1 | 9691 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona + lining- -Leather- -Alcantara- | 1 |
| 1 | 9666 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Daytona + lining- -Leather- -Leather- | 1 |
| 1 | 9667 | L.H. SEAT COMPLETE WITH GUDES -Easy entry- -Full OPT- -Daytona + lining- -Leather- -Alcantara- | 1 |
| 1 | 9692 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Logerzy- -Leather- -Leather- -Valid for | 1 |
| 1 | 9693 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Logerzy- -Leather- -Alcantara- -Valid for | 1 |
| 1 | 9668 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Logerzy- -Leather- -Leather- -Valid for | 1 |
| 1 | 9669 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Logerzy- -Leather- -Alcantara- -Valid | 1 |
| 1 | 9694 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Piping+Quilt- -Leather- -Leather- -Valid | 1 |
| 1 | 9695 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Piping+Quilt- -Leather- -Alcantara- -Valid | 1 |
| 1 | 9670 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Piping+Quilt- -Leather- -Leather- -Valid for USA and CDN- -For vehicles up to Ass. No. 86008 with seat with back panel without | 1 |
| 1 | 9671 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Piping+Quilt- -Leather- -Alcantara- | 1 |
| 1 | 9696 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Carbon- -Leather- -Leather- -Valid for | 1 |
| 1 | 9697 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Carbon- -Leather- -Alcantara- -Valid for | 1 |
| 1 | 9672 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Carbon- -Leather- -Leather- -Valid for | 1 |
| 1 | 9673 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Carbon- -Leather- -Alcantara- -Valid for | 1 |
| 1 | 9698 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona- -Carbon- -Leather- -Leather- | 1 |
| 1 | 9699 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona- -Carbon- -Leather- -Alcantara- | 1 |
| 1 | 9674 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Daytona- -Carbon- -Leather- | 1 |
| 1 | 9675 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Daytona- -Carbon- -Leather- | 1 |
| 1 | 9700 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Cadenino- -Carbon- -Leather- -Leather- | 1 |
| 1 | 9701 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Cadenino- -Carbon- -Leather- | 1 |
| 1 | 9676 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Cadenino- -Carbon- -Leather- -Leather--Valid for USA and CDN- -For vehicles up to Ass. No. 86008 with seat with back panel | 1 |
| 1 | 9677 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Cadenino- -Carbon- -Leather- | 1 |
| 1 | 9702 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona + lining- -Carbon- -Leather- | 1 |
| 1 | 9703 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona + lining- -Carbon- -Leather- | 1 |
| 1 | 9678 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Daytona + lining- -Carbon- -Leather- | 1 |
| 1 | 9679 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Daytona + lining- -Carbon- -Leather- | 1 |
| 1 | 9704 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Lozengy- -Carbon- -Leather- -Leather- | 1 |
| 1 | 9705 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Lozengy- -Carbon- -Leather- -Alcantara- stitching | 1 |
| 1 | 9680 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Lozengy- -Carbon- -Leather- | 1 |
| 1 | 9681 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Lozengy- -Carbon- -Leather- | 1 |
| 1 | 9706 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Piping + Quilt- -Carbon- -Leather- | 1 |
| 1 | 9707 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Piping + Quilt- -Carbon- -Leather- | 1 |
| 1 | 9682 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Piping + Quilt- -Carbon- -Leather- | 1 |
| 1 | 9683 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Piping + Quilt- -Carbon- -Leather- | 1 |
