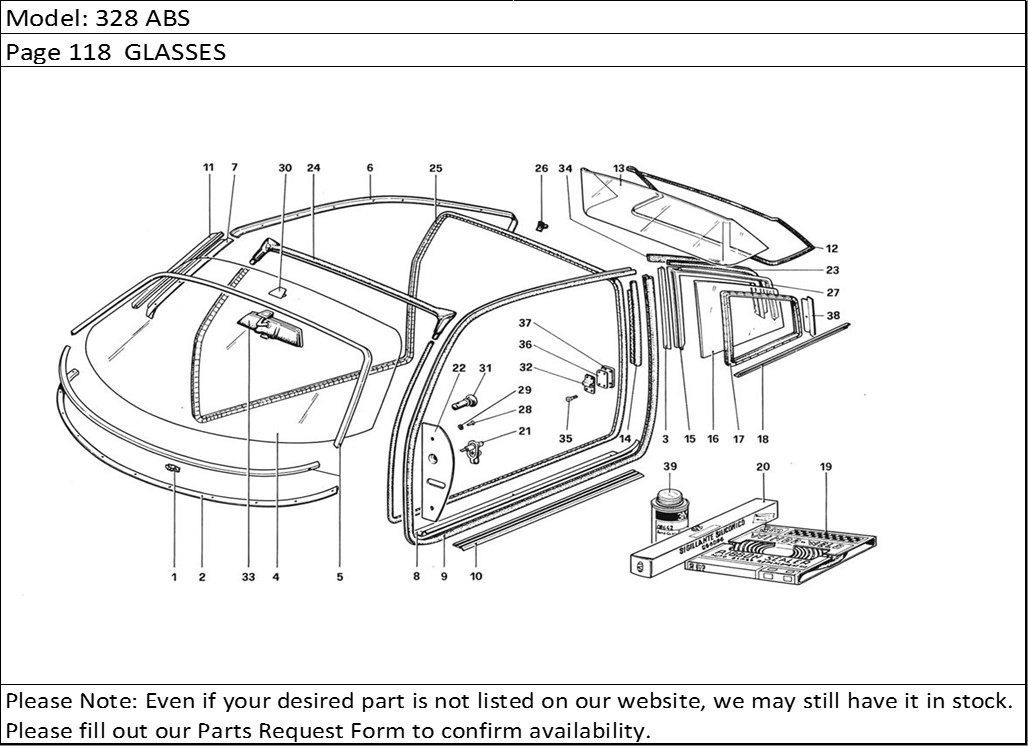

328 ABS Page 118 GLASSES
Product Description
328 ABS Page 118 GLASSES
Click on part number below to order. If unable to click on part number please fill out and submit Parts Request Form below to order.
| Location in Parts Diagram | Part # | Description | Quantity Used |
|---|---|---|---|
| 1 | - | Clip | 15 |
| 2 | 60121506 | Rim on instrument plate | 1 |
| 4 | 60036209 | Windshield glass - AUS | 1 |
| 4 | 60019908 | Windshield glass - Not for AUS | 1 |
| 5 | 60295102 | Windshield trim | 1 |
| 6 | 62350800 | R.H. drip GTB - From car No. 69369 | 1 |
| 6 | 60248002 | R.H. drip GTB - Until car 69367 | 1 |
| 6 | 62350900 | L.H. drip GTB - From car No. 69369 | 1 |
| 6 | 60248101 | L.H. drip GTB - Until car 69367 | 1 |
| 7 | 60872600 | L.H. moulding, windshield GTS | 1 |
| 7 | 60269909 | Front L.H. drip GTB | 1 |
| 7 | 60269800 | Front R.H. drip GTB | 1 |
| 7 | 60872500 | R.H. moulding, windshield GTS | 1 |
| 8 | 60099306 | Lower moulding, L.H. door GTB | 1 |
| 8 | 60099207 | Lower moulding, R.H. door GTB | 1 |
| 9 | 62402000 | Gasket GTB - After exhaustion 60298007 | 2 |
| 9 | 60298007 | Gasket GTB - Until exhaustion | 2 |
| 10 | 60116704 | Moulding, door sill | 2 |
| 11 | 60375904 | Weatherstrip for windshiled post GTS | 2 |
| 12 | 60370301 | Weatherstrip for rear window | 1 |
| 13 | 61896800 | Rear defogger | 1 |
| 13 | 60338704 | Rear window glass | 1 |
| 14 | 60313301 | Gasket GTB | 2 |
| 15 | 60263704 | R.H. frame GTB - Until car 69367 | 1 |
| 15 | 60262904 | R.H. frame GTB - Until car 69367 | 1 |
| 16 | 60522900 | Gasket, L.H. GTS | 1 |
| 16 | 60162906 | L. H glass GTS | 1 |
| 16 | 60162807 | R. H. glass GTS | 1 |
| 16 | 60264900 | L. H. glass GTB | 1 |
| 16 | 60264801 | R. H. glass GTB | 1 |
| 18 | 60267903 | Lower moulding, L.H. glass GTB | 1 |
| 18 | 62352800 | Lower moulding, R.H. glass GTBFrom car 69369 | 1 |
| 18 | 62352900 | Lower moulding, L.H. glass GTBFrom car 69369 | 1 |
| 18 | 60267804 | Lower moulding, R.H. glass GTB | 1 |
| 19 | 60089505 | Windo-Weld sealant for windshiled | 1 |
| 20 | 60156106 | Cartridge of silicone sealant | 1 |
| 21 | 61827300 | SwitchFor US-J-SA q.ty 3 | 2 |
| 22 | 60368701 | Guard for L.H. hinge GTSNot for US - J - SA | 1 |
| 22 | 60370103 | Guard for R.H. hinge GTS | 1 |
| 22 | 60320603 | Guard for R.H. hinge GTB | 1 |
| 22 | 60368602 | Guard for L.H. hinge GTBNot for US - J - SA | 1 |
| 22 | 60291903 | Guard for L.H. hinge GTBFor US - J - SA | 1 |
| 22 | 60339306 | Guard for L.H. hinge GTSFor US - J - SA | 1 |
| 23 | 61762400 | Gasket GTB - Until 69367 | 2 |
| 24 | 60607900 | Gasket GTS | 1 |
| 25 | 61705500 | Gasket GTS | 1 |
| 26 | 62372900 | Grommet for R.H. frame GTBFrom car 69369 | 1 |
| 26 | 40065005 | Grommet for R.H. frame GTBUntil car 69367 | 1 |
| 27 | 60517000 | Gasket for L.H. frame GTB | 1 |
| 27 | 60516900 | Gasket for R.H. frame GTB | 1 |
| 28 | 20297800 | Screw for hinge guard | 4 |
| 29 | 10615371 | Washer | 4 |
| 30 | 60715400 | Adhesive for rear mirror | 1 |
| 31 | 60801500 | Swithc protectionFor US-J-SA q.tyS | 2 |
| 32 | 20019204 | L.H. lock striker | 1 |
| 32 | 20019105 | R.H. lock striker | 1 |
| 33 | 60032703 | Inside rear view mirror | 1 |
| 34 | 61762700 | Gasket GTB - Until car 69367 | 2 |
| 35 | 20287504 | Screw | 8 |
| 36 | 60163003 | Spacer | 2 |
| 37 | 60602400 | Gasket | 2 |
| 38 | 62365500 | Cover GTB - Until 31-12-86 | 1 |
| 39 | 60246600 | Activator for windo-weld | 1 |
| 32 | 82254300 | LH BRACKET | |
| 33 | 69129500 | ROLLER | |
| 1 | 9664 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Cadenino- -Leather- -Leather- -Valid | 1 |
| 1 | 9665 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Cadenino- -Leather- -Alcantara- stitching | 1 |
| 1 | 9690 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona + lining- -Leather- -Leather- | 1 |
| 1 | 9691 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona + lining- -Leather- -Alcantara- | 1 |
| 1 | 9666 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Daytona + lining- -Leather- -Leather- | 1 |
| 1 | 9667 | L.H. SEAT COMPLETE WITH GUDES -Easy entry- -Full OPT- -Daytona + lining- -Leather- -Alcantara- | 1 |
| 1 | 9692 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Logerzy- -Leather- -Leather- -Valid for | 1 |
| 1 | 9693 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Logerzy- -Leather- -Alcantara- -Valid for | 1 |
| 1 | 9668 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Logerzy- -Leather- -Leather- -Valid for | 1 |
| 1 | 9669 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Logerzy- -Leather- -Alcantara- -Valid | 1 |
| 1 | 9694 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Piping+Quilt- -Leather- -Leather- -Valid | 1 |
| 1 | 9695 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Piping+Quilt- -Leather- -Alcantara- -Valid | 1 |
| 1 | 9670 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Piping+Quilt- -Leather- -Leather- -Valid for USA and CDN- -For vehicles up to Ass. No. 86008 with seat with back panel without | 1 |
| 1 | 9671 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Piping+Quilt- -Leather- -Alcantara- | 1 |
| 1 | 9696 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Carbon- -Leather- -Leather- -Valid for | 1 |
| 1 | 9697 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Carbon- -Leather- -Alcantara- -Valid for | 1 |
| 1 | 9672 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Carbon- -Leather- -Leather- -Valid for | 1 |
| 1 | 9673 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Carbon- -Leather- -Alcantara- -Valid for | 1 |
| 1 | 9698 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona- -Carbon- -Leather- -Leather- | 1 |
| 1 | 9699 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona- -Carbon- -Leather- -Alcantara- | 1 |
| 1 | 9674 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Daytona- -Carbon- -Leather- | 1 |
| 1 | 9675 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Daytona- -Carbon- -Leather- | 1 |
| 1 | 9700 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Cadenino- -Carbon- -Leather- -Leather- | 1 |
| 1 | 9701 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Cadenino- -Carbon- -Leather- | 1 |
| 1 | 9676 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Cadenino- -Carbon- -Leather- -Leather--Valid for USA and CDN- -For vehicles up to Ass. No. 86008 with seat with back panel | 1 |
| 1 | 9677 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Cadenino- -Carbon- -Leather- | 1 |
| 1 | 9702 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona + lining- -Carbon- -Leather- | 1 |
| 1 | 9703 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona + lining- -Carbon- -Leather- | 1 |
| 1 | 9678 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Daytona + lining- -Carbon- -Leather- | 1 |
| 1 | 9679 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Daytona + lining- -Carbon- -Leather- | 1 |
| 1 | 9704 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Lozengy- -Carbon- -Leather- -Leather- | 1 |
| 1 | 9705 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Lozengy- -Carbon- -Leather- -Alcantara- stitching | 1 |
| 1 | 9680 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Lozengy- -Carbon- -Leather- | 1 |
| 1 | 9681 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Lozengy- -Carbon- -Leather- | 1 |
| 1 | 9706 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Piping + Quilt- -Carbon- -Leather- | 1 |
| 1 | 9707 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Piping + Quilt- -Carbon- -Leather- | 1 |
| 1 | 9682 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Piping + Quilt- -Carbon- -Leather- | 1 |
| 1 | 9683 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Piping + Quilt- -Carbon- -Leather- | 1 |
