328 ABS Page 119 INTERIOR TRIM, ACCESSORIES AND SEATS
Product Description

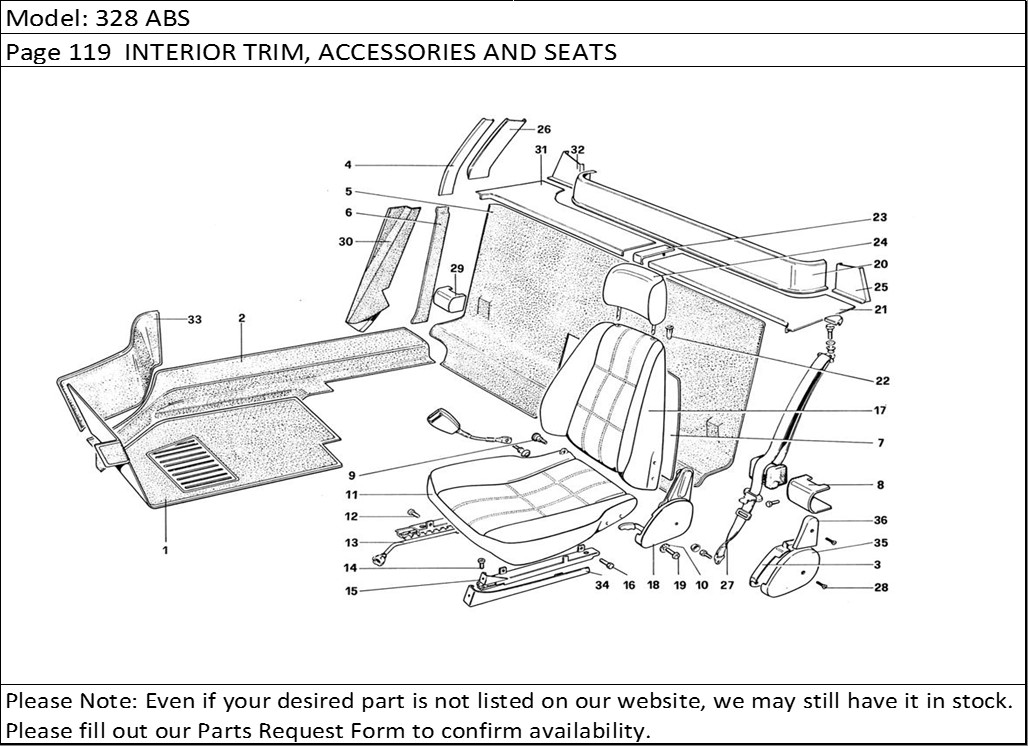

328 ABS Page 119 INTERIOR TRIM, ACCESSORIES AND SEATS
Click on part number below to order. If unable to click on part number please fill out and submit Parts Request Form below to order.
| Location in Parts Diagram | Part # | Description | Quantity Used |
|---|---|---|---|
| 1 | 62367400 | R.H. front carpet GTS - L.H.D.From car No. 68563 | 1 |
| 1 | 61365800 | R.H. front carpet GTS - R.H.D. | 1 |
| 1 | 6267200 | R.H. front carpet GTB - L.H.D.From car No. 68563 | 1 |
| 1 | 60744300 | R.H. front carpet GTB - L.H. D.Until car No. 68561 | 1 |
| 1 | 60811400 | L.H. front carpet GTS - R.H.D.Until car No. 68561 | 1 |
| 1 | 61365300 | R.H. Front carpet GTB - R.H.D. | 1 |
| 1 | 62367900 | L.H. front carpet GTS - R.H.D.From car No. 68563 | 1 |
| 1 | 61361600 | L.H. front carpet GTS - L.H.D.Until car No. 68561 | 1 |
| 1 | 62367500 | L.H. front carpet GTS - L.H.D.From car No. 68563 | 1 |
| 1 | 60807800 | L.H. front carpet GTB - R.H.D.Until car No. 68561 | 1 |
| 1 | 62367700 | L.H. front carpet GTB - R.H.D.From car No. 68563 | 1 |
| 1 | 60143104 | L.H. front carpet GTB - L.H.D.Until car No. 68561 | 1 |
| 1 | 62367300 | L.H. front carpet GTB - L.H.D.From car No. 68563 | 1 |
| 1 | 60776500 | R.H. front carpet GTS - R.H.D.Until car No. 68561 | 1 |
| 2 | 61983400 | L.H. carpet GTS - L.H.D. | 1 |
| 2 | 61982500 | R.H. carpet GTB - L.H.D. | 1 |
| 2 | 61982900 | R.H. carpet GTB - R.H.D. | 1 |
| 2 | 61983300 | R.H. carpet GTS - L.H.D. | 1 |
| 2 | 61982600 | L.H. carpet GTB - L.H.D. | 1 |
| 2 | 61983800 | R.H. carpet GTS - R.H.D. | 1 |
| 2 | 61983900 | L.H. carpet GTS - R.H.D. | 1 |
| 2 | 61983009 | L.H. carpet GTB - R.H.D. | 1 |
| 3 | 61938700 | L.H. cover with covering | 1 |
| 3 | 61938600 | R.H. cover with covering | 1 |
| 4 | 60997700 | Right moulding + covering GTBUntil car 69367 | 1 |
| 4 | 62373100 | L.H. moulding + covering GTBFrom car 69369 | 1 |
| 4 | 60997800 | Left moulding + covering GTBUntil car 69367 | 1 |
| 4 | 62373000 | R.H. moulding + covering GTBFrom car 69369 | 1 |
| 5 | 61360800 | Carpet GTS | 1 |
| 5 | 61352200 | Carpet GTB | 1 |
| 6 | 61459100 | R.H. moulding with covering GT | 1 |
| 6 | 61459200 | L.H. moulding with covering GTI | 1 |
| 7 | 60765400 | Rear plate, passenger side with pocket | 1 |
| 7 | 60209400 | Rear plate, driver side | 1 |
| 8 | 61917300 | L.H. cover with covering GTSNot for AUS | 1 |
| 8 | 61943300 | L.H. cover with covering GTBNot for AUS | 1 |
| 9 | 60773600 | Screw | 2 |
| 10 | 106852 | Washer | 8 |
| 11 | 61786600 | Cushion L.H. seat with coverinc | 1 |
| 11 | 61787000 | Covering | 2 |
| 11 | 61786000 | Cushion R.H. seat with coverint | 1 |
| 12 | 16043221 | Screw | 4 |
| 13 | 60369006 | Guide with adjuster R.H. seat | 1 |
| 13 | 60369105 | Guide with adjuster L.H. seat | 1 |
| 14 | 40294308 | Screw | 8 |
| 15 | 61880500 | External guide for R.H. seat | 1 |
| 15 | 61880600 | External guide for L.H. seat | 1 |
| 16 | 40294407 | Screw | 4 |
| 17 | 61786200 | Squab R.H. seat with covering | 2 |
| 17 | 61787100 | Covering | 2 |
| 17 | 61786800 | Squab L.H. seat with covering | 1 |
| 18 | 60856300 | Adjuster R.H. seat | 1 |
| 18 | 60856400 | Adjuster L.H. seat | 1 |
| 19 | 14306521 | Screw | 8 |
| 20 | 62481800 | Moulding with covering C8 - US - SA - AUS | 1 |
| 20 | 60997400 | Moulding with coveringNot for C8 - US - SA - AUS | 1 |
| 21 | 61134900 | L.H. moulding with covering GTS - Until 1987 | 1 |
| 21 | 62487000 | L.H. moulding with covering GTS - From 1988 | 1 |
| 21 | 60997600 | L.H. moulding with covering GTB | 1 |
| 22 | 20058905 | Busching for headrest | 4 |
| 23 | 60998400 | Moulding with covering | 1 |
| 24 | 61863300 | Covering | 2 |
| 24 | 60757100 | Headrest | 2 |
| 25 | 62487600 | L.H. moulding with covering GTS - From 1988 | 1 |
| 25 | 62353900 | L.H. moulding with covering GTBFrom car 69369 | 1 |
| 25 | 60998200 | L.H. moulding with covering - For GTBuntil car 69367 - For GTS until 1987 | 1 |
| 26 | 61135000 | R.H. moulding with covering GTS | 1 |
| 26 | 61134200 | Covering GTS | 1 |
| 26 | 61135200 | L.H. moulding with covering GTS | 1 |
| 27 | 62482500 | Safety belts in alternative to 60791600 | 1 |
| 27 | 60791600 | Safety beltsNot for US - J - SA - AUS (OK for A 87) | 1 |
| 27 | 113890 | Safety belts US - J - SA | 1 |
| 28 | 60729900 | Screw | 4 |
| 29 | 61917200 | R.H. cover with covering GTS | 1 |
| 29 | 61943300 | R.H. cover with covering GTBNot for AUS | 1 |
| 30 | 60787600 | L.H. moulding with covering GTS | 1 |
| 30 | 60787500 | R.H. moulding with covering GTS | 1 |
| 31 | 62486900 | R.H. moulding with covering GTSFrom 1988 | 1 |
| 31 | 61134800 | R.H. moulding with covering GTS - Until 1987 | 1 |
| 31 | 60997500 | R.H. moulding with covering GTB | 1 |
| 32 | 62353800 | R.H. moulding with covering GTBFrom car 69369 | 1 |
| 32 | 60998100 | R.H. moulding with covering - For GTBuntil car 69367 - For GTS until 1987 | 1 |
| 32 | 62487500 | R.H. moulding with covering GTSFrom 1988 | 1 |
| 33 | 61983100 | R.H. carpet GTS - L.H.D. | 1 |
| 33 | 61982700 | R.H. carpet GTB - R.H.D. | 1 |
| 33 | 61983700 | L.H. carpet GTS - R.H.D. | 1 |
| 33 | 61983600 | R.H. carpet GTS - R.H.D. | 1 |
| 33 | 61983200 | L.H. carpet GTS - L.H.D. | 1 |
| 33 | 61982800 | L.H. carpet GTB - R.H.D. | 1 |
| 33 | 61982400 | (V) L.H. carpet GTB - L.H.D. | 1 |
| 33 | 62492200 | (N) L.H. carpet GTB - L.H.D. | 1 |
| 33 | 61982300 | R.H. carpet GTB - L.H.D. | 1 |
| 34 | 61880700 | R.H. cover with covering | 1 |
| 34 | 61880800 | L.H. cover with covering | 1 |
| 35 | 61938300 | L.H. cover with covering for R.H. seat | 1 |
| 35 | 61938200 | R.H. cover with covering for R.H. seat | 1 |
| 36 | 61938500 | L.H. cover with covering for L.H. seat | 1 |
| 36 | 61938400 | R.H. cover with covering for L.H. seat | 1 |
| 39 | 61786500 | L.H. seat complete R.H.D. | 1 |
| 39 | 61785900 | R.H. seat complete L.H.D. | 1 |
| 39 | 61965900 | L.H. Seat complete R.H.D. | 1 |
| 39 | 61965800 | R.H. seat complete R.H.D. | 1 |
| 32 | 82254300 | LH BRACKET | |
| 33 | 69129500 | ROLLER | |
| 1 | 9664 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Cadenino- -Leather- -Leather- -Valid | 1 |
| 1 | 9665 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Cadenino- -Leather- -Alcantara- stitching | 1 |
| 1 | 9690 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona + lining- -Leather- -Leather- | 1 |
| 1 | 9691 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona + lining- -Leather- -Alcantara- | 1 |
| 1 | 9666 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Daytona + lining- -Leather- -Leather- | 1 |
| 1 | 9667 | L.H. SEAT COMPLETE WITH GUDES -Easy entry- -Full OPT- -Daytona + lining- -Leather- -Alcantara- | 1 |
| 1 | 9692 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Logerzy- -Leather- -Leather- -Valid for | 1 |
| 1 | 9693 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Logerzy- -Leather- -Alcantara- -Valid for | 1 |
| 1 | 9668 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Logerzy- -Leather- -Leather- -Valid for | 1 |
| 1 | 9669 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Logerzy- -Leather- -Alcantara- -Valid | 1 |
| 1 | 9694 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Piping+Quilt- -Leather- -Leather- -Valid | 1 |
| 1 | 9695 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Piping+Quilt- -Leather- -Alcantara- -Valid | 1 |
| 1 | 9670 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Piping+Quilt- -Leather- -Leather- -Valid for USA and CDN- -For vehicles up to Ass. No. 86008 with seat with back panel without | 1 |
| 1 | 9671 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Piping+Quilt- -Leather- -Alcantara- | 1 |
| 1 | 9696 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Carbon- -Leather- -Leather- -Valid for | 1 |
| 1 | 9697 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Carbon- -Leather- -Alcantara- -Valid for | 1 |
| 1 | 9672 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Carbon- -Leather- -Leather- -Valid for | 1 |
| 1 | 9673 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Carbon- -Leather- -Alcantara- -Valid for | 1 |
| 1 | 9698 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona- -Carbon- -Leather- -Leather- | 1 |
| 1 | 9699 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona- -Carbon- -Leather- -Alcantara- | 1 |
| 1 | 9674 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Daytona- -Carbon- -Leather- | 1 |
| 1 | 9675 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Daytona- -Carbon- -Leather- | 1 |
| 1 | 9700 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Cadenino- -Carbon- -Leather- -Leather- | 1 |
| 1 | 9701 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Cadenino- -Carbon- -Leather- | 1 |
| 1 | 9676 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Cadenino- -Carbon- -Leather- -Leather--Valid for USA and CDN- -For vehicles up to Ass. No. 86008 with seat with back panel | 1 |
| 1 | 9677 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Cadenino- -Carbon- -Leather- | 1 |
| 1 | 9702 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona + lining- -Carbon- -Leather- | 1 |
| 1 | 9703 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona + lining- -Carbon- -Leather- | 1 |
| 1 | 9678 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Daytona + lining- -Carbon- -Leather- | 1 |
| 1 | 9679 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Daytona + lining- -Carbon- -Leather- | 1 |
| 1 | 9704 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Lozengy- -Carbon- -Leather- -Leather- | 1 |
| 1 | 9705 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Lozengy- -Carbon- -Leather- -Alcantara- stitching | 1 |
| 1 | 9680 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Lozengy- -Carbon- -Leather- | 1 |
| 1 | 9681 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Lozengy- -Carbon- -Leather- | 1 |
| 1 | 9706 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Piping + Quilt- -Carbon- -Leather- | 1 |
| 1 | 9707 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Piping + Quilt- -Carbon- -Leather- | 1 |
| 1 | 9682 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Piping + Quilt- -Carbon- -Leather- | 1 |
| 1 | 9683 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Piping + Quilt- -Carbon- -Leather- | 1 |
