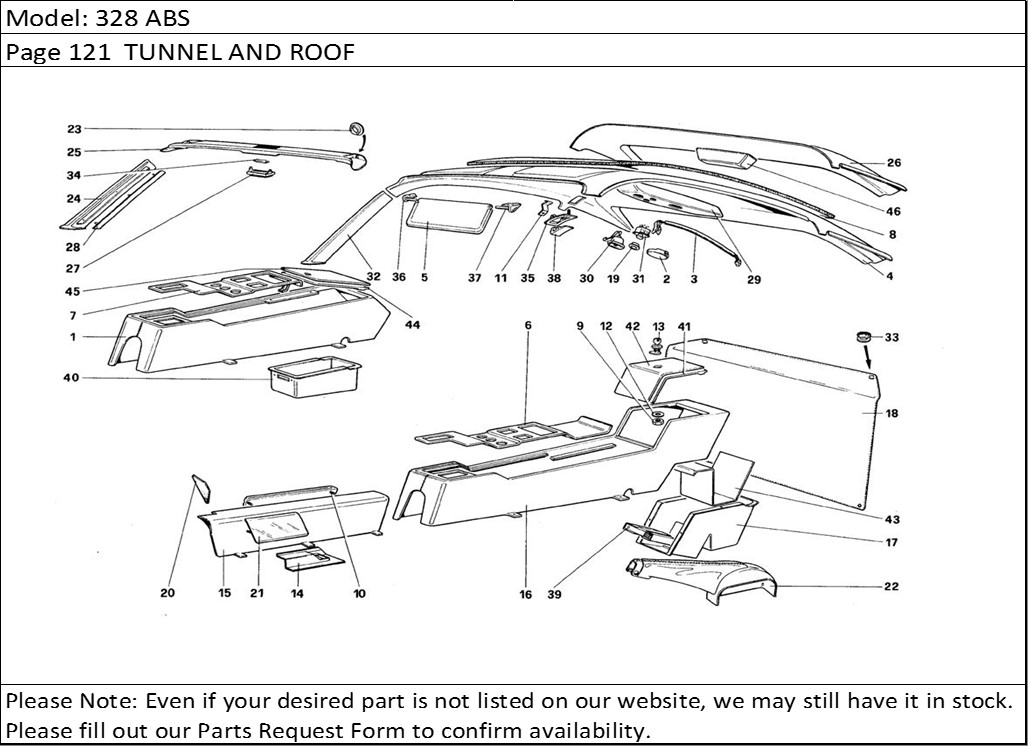

328 ABS Page 121 TUNNEL AND ROOF
Product Description
328 ABS Page 121 TUNNEL AND ROOF
Click on part number below to order. If unable to click on part number please fill out and submit Parts Request Form below to order.
| Location in Parts Diagram | Part # | Description | Quantity Used |
|---|---|---|---|
| 1 | 61848000 | Covering - R.H.D. - GTS | 1 |
| 1 | 62328200 | Central tunnel with covering - L.H.D. -GTS | 1 |
| 1 | 61847600 | Central tunnel with covering - R.H.D. -GTS | 1 |
| 2 | 60811000 | Roof light GTB | 1 |
| 3 | 117131 | Roof cables GTB | 1 |
| 4 | 61869300 | Roof with covering GTB - USUntil car 69367 | 1 |
| 4 | 61868300 | Roof with covering GTBNot for US - Until car 69367 | 1 |
| 4 | 62353600 | Roof with covering GTBNot for US - From car 69369 | 1 |
| 4 | 62354600 | Roof with covering GTB - USFrom car 69369 | 1 |
| 4 | 60995800 | Covering GTB | 1 |
| 5 | 61610700 | Sun visor GTS - AUS | 2 |
| 5 | 61607400 | Sun visor GTB - AUS | 2 |
| 5 | 60993000 | Sun visor passenger side GTSNot for AUS | 1 |
| 5 | 61003900 | Sun visor driver side GTBNot for AUS | 1 |
| 5 | 60992900 | Sun visor driver side GTSNot for AUS | 1 |
| 5 | 61004000 | Sun visor passenger side GTBNot for AUS | 1 |
| 6 | 62325300 | Covering L.H.D. - GTB | 1 |
| 6 | 62321300 | Instrumen panel with coveringGTB -L.H.D. | 1 |
| 6 | 61833700 | Covering R.H.D. - GTB | 1 |
| 6 | 61831100 | Instrument panel with coveringR.H.D. -GTB | 1 |
| 7 | 61855600 | Covering R.H.D. - GTS | 1 |
| 7 | 61847500 | Instrumet panel with coveringR.H.D. -GTS | 1 |
| 7 | 62328100 | Instument panel with coveringL.H.D. -GTS | 1 |
| 7 | 61817000 | Covering L.H.D. - GTS | 1 |
| 8 | 60173606 | Insulation roof | 1 |
| 9 | 61819400 | Ring nut | 1 |
| 10 | 62322500 | Front pocket | 1 |
| 11 | 61115400 | Spring GTB | 2 |
| 12 | 61819500 | Washer | 1 |
| 13 | 61819300 | Lock | 1 |
| 14 | 61879200 | Cover for accelerator pedal LHD | 1 |
| 15 | 62325700 | Covering L.H.D. | 1 |
| 15 | 61833800 | Covering R.H.D. | 1 |
| 15 | 62491800 | (N) Front tunnel with covering L.H.D | 1 |
| 15 | 61831300 | Front tunnel with covering R.H.D. | 1 |
| 15 | 62321500 | (V) Front tunnel with covering L.H.D | 1 |
| 16 | 62321400 | Central tunnel + covering L.H.D. - GTB | 1 |
| 16 | 62322100 | Covering L.H.D. - GTB | 1 |
| 16 | 61831900 | Covering R.H.D. - GTB | 1 |
| 17 | 62321600 | Glove box with covering GTB | 1 |
| 18 | 60418209 | Cover for sun roof GTS | 1 |
| 19 | 60794100 | Swithc rim GTB | 2 |
| 20 | 61902700 | Foot rest R.H.D. | 1 |
| 21 | 61832500 | Protection for front tunnel R.H | 1 |
| 21 | 61816400 | Protection for front tunnel L.H | 1 |
| 22 | 62481500 | Covered seat for brake lever GTS - | 1 |
| 22 | 62480900 | Covered seat for brake lever GTB - | 1 |
| 22 | 62481600 | Covered seat for brake lever GTS - | 1 |
| 22 | 62470300 | Covered seat for brake lever GTB - | 1 |
| 23 | 60342607 | Bushing GTS | 2 |
| 24 | 60356805 | L.H. moulding GTS | 1 |
| 24 | 60356706 | R.H. moulding GTS | 1 |
| 25 | 61968300 | Panel with covering GTS - AUSWith items 5-23-36-37 | 1 |
| 25 | 60354909 | Covering GTS | 1 |
| 25 | 61951600 | Panel with covering (ITS - R.H.D.Not for AUS | 1 |
| 25 | 61168400 | Panel with covering GTS - L.H.D.With items 5-23-36-37 | 1 |
| 26 | 61134600 | Panel with covering GTSNo for US - Until car 75571 | 1 |
| 26 | 62486600 | Panel with covering GTSNot for US - From car 75584 | 1 |
| 26 | 62488300 | Panel with covering GTS - USFrom car 75582 | 1 |
| 26 | 61870200 | Panel with covering GTS - US until car | 1 |
| 26 | 61133800 | Covering GTS | 1 |
| 27 | 60326709 | Roof light - GTS | 1 |
| 28 | 60355906 | Covering for R.H. moulding - GTS | 1 |
| 28 | 60355807 | Covering for L.H. moulding - GTS | 1 |
| 29 | 60996600 | Covering - GTB - Not for US | 1 |
| 29 | 61949700 | Seat for spot lamp with coveringNot for US | 1 |
| 29 | 61949800 | Seat for spot lamp with covering | 1 |
| 29 | 61950400 | Covering GTB - US | 1 |
| 30 | 60811100 | Moring light - GTB | 1 |
| 31 | 60810900 | Switch for roof light GTB | 2 |
| 32 | 61113300 | R.H. moulding - GTB | 1 |
| 32 | 60154002 | Covering for moulding - GTB | 2 |
| 32 | 61113400 | L.H. moulding - GTB | 1 |
| 33 | 60727200 | Knob for cover - GTS | 4 |
| 34 | 50100205 | Lamp for GTS | 1 |
| 35 | 61115200 | Hook frame - GTB | 2 |
| 36 | 61115000 | R.H. pin for sun visor | 2 |
| 37 | 61115100 | L.H. pin for sun visor | 2 |
| 38 | 61116000 | Hook GTB | 2 |
| 39 | 61822900 | Cassette recorder - GTB | 6 |
| 40 | 62328400 | Glove box with covering - GTS | 1 |
| 41 | 62321700 | Exterior side of lid - GTB | 1 |
| 42 | 62321800 | Interior side of lid - GTB | 1 |
| 43 | 61822600 | Lid bottom - GTB | 1 |
| 44 | 62328500 | Interior side of lid - GTS | 1 |
| 45 | 62328600 | Exterior side of lid - GTS | 1 |
| 46 | 61819600 | Locks GTB | 1 |
| 46 | 61817500 | Locks GTS | 1 |
| 46 | 61930100 | Seating for stop - lamp - GTS - US | 1 |
| 32 | 82254300 | LH BRACKET | |
| 33 | 69129500 | ROLLER | |
| 1 | 9664 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Cadenino- -Leather- -Leather- -Valid | 1 |
| 1 | 9665 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Cadenino- -Leather- -Alcantara- stitching | 1 |
| 1 | 9690 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona + lining- -Leather- -Leather- | 1 |
| 1 | 9691 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona + lining- -Leather- -Alcantara- | 1 |
| 1 | 9666 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Daytona + lining- -Leather- -Leather- | 1 |
| 1 | 9667 | L.H. SEAT COMPLETE WITH GUDES -Easy entry- -Full OPT- -Daytona + lining- -Leather- -Alcantara- | 1 |
| 1 | 9692 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Logerzy- -Leather- -Leather- -Valid for | 1 |
| 1 | 9693 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Logerzy- -Leather- -Alcantara- -Valid for | 1 |
| 1 | 9668 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Logerzy- -Leather- -Leather- -Valid for | 1 |
| 1 | 9669 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Logerzy- -Leather- -Alcantara- -Valid | 1 |
| 1 | 9694 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Piping+Quilt- -Leather- -Leather- -Valid | 1 |
| 1 | 9695 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Piping+Quilt- -Leather- -Alcantara- -Valid | 1 |
| 1 | 9670 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Piping+Quilt- -Leather- -Leather- -Valid for USA and CDN- -For vehicles up to Ass. No. 86008 with seat with back panel without | 1 |
| 1 | 9671 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Piping+Quilt- -Leather- -Alcantara- | 1 |
| 1 | 9696 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Carbon- -Leather- -Leather- -Valid for | 1 |
| 1 | 9697 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Carbon- -Leather- -Alcantara- -Valid for | 1 |
| 1 | 9672 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Carbon- -Leather- -Leather- -Valid for | 1 |
| 1 | 9673 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Carbon- -Leather- -Alcantara- -Valid for | 1 |
| 1 | 9698 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona- -Carbon- -Leather- -Leather- | 1 |
| 1 | 9699 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona- -Carbon- -Leather- -Alcantara- | 1 |
| 1 | 9674 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Daytona- -Carbon- -Leather- | 1 |
| 1 | 9675 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Daytona- -Carbon- -Leather- | 1 |
| 1 | 9700 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Cadenino- -Carbon- -Leather- -Leather- | 1 |
| 1 | 9701 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Cadenino- -Carbon- -Leather- | 1 |
| 1 | 9676 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Cadenino- -Carbon- -Leather- -Leather--Valid for USA and CDN- -For vehicles up to Ass. No. 86008 with seat with back panel | 1 |
| 1 | 9677 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Cadenino- -Carbon- -Leather- | 1 |
| 1 | 9702 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona + lining- -Carbon- -Leather- | 1 |
| 1 | 9703 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona + lining- -Carbon- -Leather- | 1 |
| 1 | 9678 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Daytona + lining- -Carbon- -Leather- | 1 |
| 1 | 9679 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Daytona + lining- -Carbon- -Leather- | 1 |
| 1 | 9704 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Lozengy- -Carbon- -Leather- -Leather- | 1 |
| 1 | 9705 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Lozengy- -Carbon- -Leather- -Alcantara- stitching | 1 |
| 1 | 9680 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Lozengy- -Carbon- -Leather- | 1 |
| 1 | 9681 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Lozengy- -Carbon- -Leather- | 1 |
| 1 | 9706 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Piping + Quilt- -Carbon- -Leather- | 1 |
| 1 | 9707 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Piping + Quilt- -Carbon- -Leather- | 1 |
| 1 | 9682 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Piping + Quilt- -Carbon- -Leather- | 1 |
| 1 | 9683 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Piping + Quilt- -Carbon- -Leather- | 1 |
