328 ABS Page 122 INSTRUMENTS PANEL (UNTIL CAR NO. 71595)
Product Description
328 ABS Page 122 INSTRUMENTS PANEL (UNTIL CAR NO. 71595)
Click on part number below to order. If unable to click on part number please fill out and submit Parts Request Form below to order.

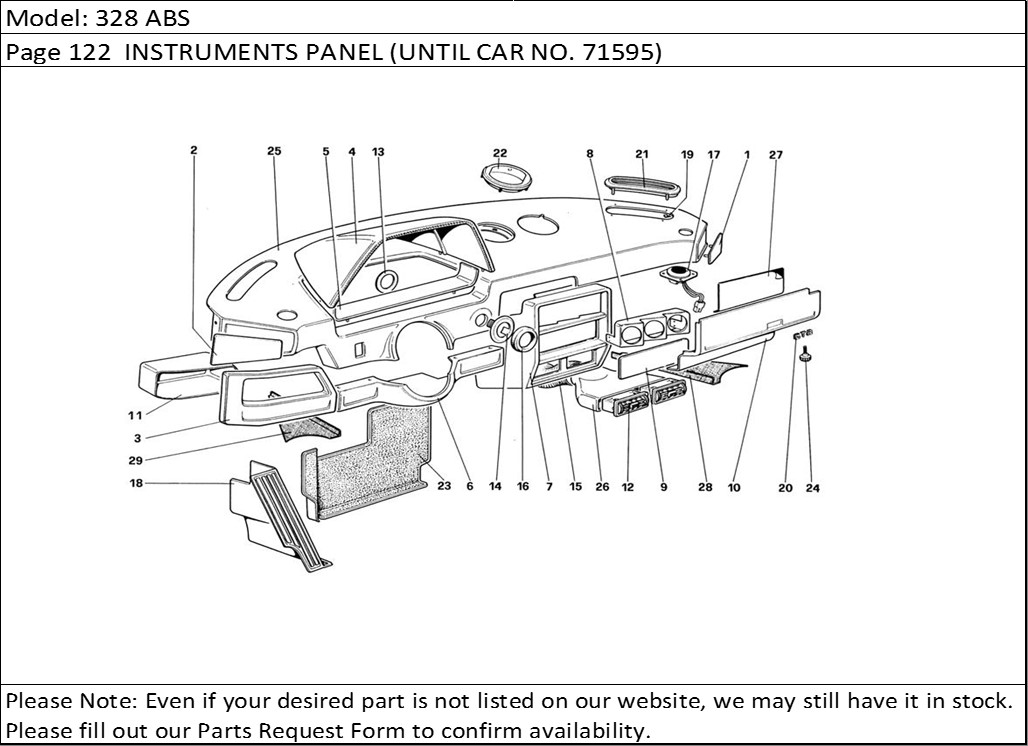

| Location in Parts Diagram | Part # | Description | Quantity Used |
|---|---|---|---|
| 1 | 62316600 | R.H. moulding with covering | 1 |
| 2 | 62316700 | L.H. moulding with covering | 1 |
| 3 | 61852000 | Moulding with covering R.H.D. | 1 |
| 4 | 62316300 | Dash board visor with covering | 1 |
| 4 | 62318900 | Covering | 1 |
| 5 | 61902800 | Moulding with covering R.H.D. | 1 |
| 5 | 61893000 | Moulding with coverign L.H.D. | 1 |
| 6 | 61852600 | Cover for steering column R.H.D. | 1 |
| 6 | 62317300 | Cover for steering column L.H.D. | 1 |
| 7 | 62317500 | Dash board with covering L.H.D. | 1 |
| 7 | 61852700 | Dash board with covering R.H.D. | 1 |
| 8 | 61853000 | Moulding with covering R.H.D. | 1 |
| 8 | 61812500 | Moulding with covering L.H.D. | 1 |
| 9 | 62316900 | Radio board with covering | 1 |
| 10 | 62319400 | Outsider covering L.H.D. | 1 |
| 10 | 61873100 | Lid with covering GTS - R.H.D. | 1 |
| 10 | 61813900 | Lid with covering GTS - L.H.D | 1 |
| 10 | 62852500 | Lid with covering GTB - R.H.D. | 1 |
| 10 | 61856000 | Outsider covering R.H.D. | 1 |
| 10 | 62317200 | Lid with covering GTB - L.H.D. | 1 |
| 11 | 61852100 | Glove box with covering R.H.D. | 1 |
| 11 | 62316200 | Glove box with covering L.H.D. | 1 |
| 12 | 60124302 | Air outlet AC | 2 |
| 13 | 60164100 | Ring nut | 1 |
| 14 | 60164001 | Moulding for ignition key opening | 1 |
| 15 | 60133204 | AC duct | 1 |
| 16 | 62320300 | Gasket lor ring nut | 1 |
| 17 | 127296 | Loud speaker - Until exhaustion | 2 |
| 17 | 62462600 | Loud speaker - After exhaustion 127296 | 1 |
| 18 | 61361400 | Toeboard GTS - L.H.D. | 1 |
| 18 | 61352500 | Toeboard GTB - L.H.D. | 1 |
| 19 | 60048501 | Clip | 8 |
| 20 | 61743700 | GTB mark | 1 |
| 20 | 61813800 | GTS mark | 1 |
| 21 | 60044401 | Lateral air outlet | 2 |
| 22 | 61738800 | Air outlet | 3 |
| 23 | 61365200 | Carpet, under pedals GTB - R.H.D. | 1 |
| 23 | 61361300 | Carpet, under pedals GTS - L.H.D. | 1 |
| 23 | 61365700 | Carpet, under pedals GTS - R.H.D. | 1 |
| 23 | 61352400 | Carpet, under pedals GTB - L.H.D. | 1 |
| 24 | 61802700 | Knob fixing lid | 2 |
| 25 | 61852400 | Panel with covering R.H.D. | 1 |
| 25 | 62317100 | Panel with covering L.H.D. | 1 |
| 26 | 60375201 | AC conveyor for L.H.D. | 1 |
| 26 | 60375300 | AC conveyor for R.H.D. | 1 |
| 27 | 62367100 | Relay labelFor electric board 62344200 | 1 |
| 27 | 61917800 | Relay labelFor electric board 61804200 | 1 |
| 28 | 60143609 | R.H. carpet | 1 |
| 29 | 60143708 | L.H. carpet | 1 |
| 32 | 82254300 | LH BRACKET | |
| 33 | 69129500 | ROLLER | |
| 1 | 9664 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Cadenino- -Leather- -Leather- -Valid | 1 |
| 1 | 9665 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Cadenino- -Leather- -Alcantara- stitching | 1 |
| 1 | 9690 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona + lining- -Leather- -Leather- | 1 |
| 1 | 9691 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona + lining- -Leather- -Alcantara- | 1 |
| 1 | 9666 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Daytona + lining- -Leather- -Leather- | 1 |
| 1 | 9667 | L.H. SEAT COMPLETE WITH GUDES -Easy entry- -Full OPT- -Daytona + lining- -Leather- -Alcantara- | 1 |
| 1 | 9692 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Logerzy- -Leather- -Leather- -Valid for | 1 |
| 1 | 9693 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Logerzy- -Leather- -Alcantara- -Valid for | 1 |
| 1 | 9668 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Logerzy- -Leather- -Leather- -Valid for | 1 |
| 1 | 9669 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Logerzy- -Leather- -Alcantara- -Valid | 1 |
| 1 | 9694 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Piping+Quilt- -Leather- -Leather- -Valid | 1 |
| 1 | 9695 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Piping+Quilt- -Leather- -Alcantara- -Valid | 1 |
| 1 | 9670 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Piping+Quilt- -Leather- -Leather- -Valid for USA and CDN- -For vehicles up to Ass. No. 86008 with seat with back panel without | 1 |
| 1 | 9671 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Piping+Quilt- -Leather- -Alcantara- | 1 |
| 1 | 9696 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Carbon- -Leather- -Leather- -Valid for | 1 |
| 1 | 9697 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Carbon- -Leather- -Alcantara- -Valid for | 1 |
| 1 | 9672 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Carbon- -Leather- -Leather- -Valid for | 1 |
| 1 | 9673 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Carbon- -Leather- -Alcantara- -Valid for | 1 |
| 1 | 9698 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona- -Carbon- -Leather- -Leather- | 1 |
| 1 | 9699 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona- -Carbon- -Leather- -Alcantara- | 1 |
| 1 | 9674 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Daytona- -Carbon- -Leather- | 1 |
| 1 | 9675 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Daytona- -Carbon- -Leather- | 1 |
| 1 | 9700 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Cadenino- -Carbon- -Leather- -Leather- | 1 |
| 1 | 9701 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Cadenino- -Carbon- -Leather- | 1 |
| 1 | 9676 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Cadenino- -Carbon- -Leather- -Leather--Valid for USA and CDN- -For vehicles up to Ass. No. 86008 with seat with back panel | 1 |
| 1 | 9677 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Cadenino- -Carbon- -Leather- | 1 |
| 1 | 9702 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona + lining- -Carbon- -Leather- | 1 |
| 1 | 9703 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona + lining- -Carbon- -Leather- | 1 |
| 1 | 9678 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Daytona + lining- -Carbon- -Leather- | 1 |
| 1 | 9679 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Daytona + lining- -Carbon- -Leather- | 1 |
| 1 | 9704 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Lozengy- -Carbon- -Leather- -Leather- | 1 |
| 1 | 9705 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Lozengy- -Carbon- -Leather- -Alcantara- stitching | 1 |
| 1 | 9680 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Lozengy- -Carbon- -Leather- | 1 |
| 1 | 9681 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Lozengy- -Carbon- -Leather- | 1 |
| 1 | 9706 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Piping + Quilt- -Carbon- -Leather- | 1 |
| 1 | 9707 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Piping + Quilt- -Carbon- -Leather- | 1 |
| 1 | 9682 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Piping + Quilt- -Carbon- -Leather- | 1 |
| 1 | 9683 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Piping + Quilt- -Carbon- -Leather- | 1 |
