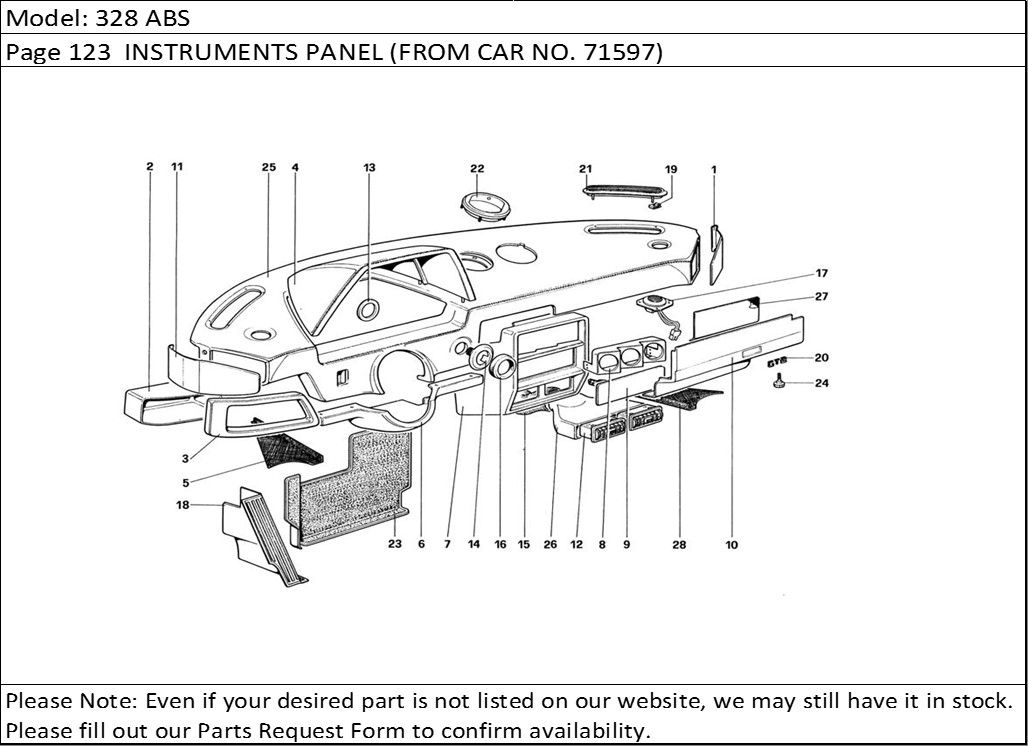

328 ABS Page 123 INSTRUMENTS PANEL (FROM CAR NO. 71597)
Product Description
328 ABS Page 123 INSTRUMENTS PANEL (FROM CAR NO. 71597)
Click on part number below to order. If unable to click on part number please fill out and submit Parts Request Form below to order.
| Location in Parts Diagram | Part # | Description | Quantity Used |
|---|---|---|---|
| 1 | 61995600 | R.H. moulding with covering | 1 |
| 2 | 61995300 | Glove box with covering LHD | 1 |
| 3 | 61995200 | Moulding with covering LHD | 1 |
| 3 | 62336400 | Moulding with covering RHD | 1 |
| 4 | 62318900 | Covering | 1 |
| 4 | 62316300 | Dash board visor with covering | 1 |
| 5 | 60143708 | L.H. carpet | 1 |
| 6 | 62337700 | Cover for steering column RHD | 1 |
| 6 | 61996000 | Cover for steering column LHD | 1 |
| 7 | 62317500 | Dash board with covering LHD | 1 |
| 7 | 61852700 | Dash board with covering RHD | 1 |
| 8 | 61812500 | Moulding with covering LHD | 1 |
| 8 | 61853000 | Moulding with covering RHD | 1 |
| 9 | 62316900 | Radio board with covering | 1 |
| 10 | 62368200 | Lid with covering GTB - LHD | 1 |
| 10 | 62319400 | Outsider covering LHD | 1 |
| 10 | 62868600 | Lid with covering GTS - RHD | 1 |
| 10 | 62368400 | Lid with covering GTS - LHD | 1 |
| 10 | 62368500 | Lid with covering GTB - RHD | 1 |
| 10 | 61856000 | Outsider covering RHD | 1 |
| 11 | 61995700 | L.H. moulding with covering | 1 |
| 12 | 60124302 | Air outlet AC | 2 |
| 13 | 60164100 | Ring nut | 1 |
| 14 | 60164001 | Moulding for ignition key opening | 1 |
| 15 | 60133204 | AC duct | 1 |
| 16 | 62320300 | Gasket for ring nut | 1 |
| 17 | 62462600 | Loud speaker | 2 |
| 18 | 62497900 | (N) Teaboard GTB - LHD | 1 |
| 18 | 61352500 | (V) Teaboard GTB - LHD | 1 |
| 18 | 62504800 | (N) Teaboard GTS - LHD | 1 |
| 18 | 61361400 | (V) Teaboard GTS - LHD | 1 |
| 19 | 60048501 | Clip | 8 |
| 20 | 61743700 | GTB mark | 1 |
| 20 | 61813800 | GTS mark | 1 |
| 21 | 60044401 | Lateral air outlet | 2 |
| 22 | 61738800 | Air outlet | 3 |
| 23 | 61352400 | Carpet, under pedals GTB - LHD | 1 |
| 23 | 61365200 | Carpet, under pedals GTB - RHD | 1 |
| 23 | 61361300 | Carpet, under pedals GTS - LHD | 1 |
| 23 | 61365700 | Carpet, under pedals GTS - RHD | 1 |
| 24 | 61802700 | Knob fixing lid | 2 |
| 25 | 61995900 | Panel with covering LHD | 1 |
| 25 | 62337600 | Panel with covering RHD | 1 |
| 26 | 60375300 | AC conveyor for RHD | 1 |
| 26 | 60375201 | AC conveyhor for LHD | 1 |
| 27 | 62367100 | Relay label - For electric board 62344200RHD From car 68197 | 1 |
| 27 | 61936500 | Relay label C8 | 1 |
| 27 | 61917800 | Relay label - For electric board 61804200LHD - Not for C8- For RHD until car 68195 | 1 |
| 28 | 60143609 | R.H. carpet | 1 |
| 32 | 82254300 | LH BRACKET | |
| 33 | 69129500 | ROLLER | |
| 1 | 9664 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Cadenino- -Leather- -Leather- -Valid | 1 |
| 1 | 9665 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Cadenino- -Leather- -Alcantara- stitching | 1 |
| 1 | 9690 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona + lining- -Leather- -Leather- | 1 |
| 1 | 9691 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona + lining- -Leather- -Alcantara- | 1 |
| 1 | 9666 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Daytona + lining- -Leather- -Leather- | 1 |
| 1 | 9667 | L.H. SEAT COMPLETE WITH GUDES -Easy entry- -Full OPT- -Daytona + lining- -Leather- -Alcantara- | 1 |
| 1 | 9692 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Logerzy- -Leather- -Leather- -Valid for | 1 |
| 1 | 9693 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Logerzy- -Leather- -Alcantara- -Valid for | 1 |
| 1 | 9668 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Logerzy- -Leather- -Leather- -Valid for | 1 |
| 1 | 9669 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Logerzy- -Leather- -Alcantara- -Valid | 1 |
| 1 | 9694 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Piping+Quilt- -Leather- -Leather- -Valid | 1 |
| 1 | 9695 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Piping+Quilt- -Leather- -Alcantara- -Valid | 1 |
| 1 | 9670 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Piping+Quilt- -Leather- -Leather- -Valid for USA and CDN- -For vehicles up to Ass. No. 86008 with seat with back panel without | 1 |
| 1 | 9671 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Piping+Quilt- -Leather- -Alcantara- | 1 |
| 1 | 9696 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Carbon- -Leather- -Leather- -Valid for | 1 |
| 1 | 9697 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Carbon- -Leather- -Alcantara- -Valid for | 1 |
| 1 | 9672 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Carbon- -Leather- -Leather- -Valid for | 1 |
| 1 | 9673 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Carbon- -Leather- -Alcantara- -Valid for | 1 |
| 1 | 9698 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona- -Carbon- -Leather- -Leather- | 1 |
| 1 | 9699 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona- -Carbon- -Leather- -Alcantara- | 1 |
| 1 | 9674 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Daytona- -Carbon- -Leather- | 1 |
| 1 | 9675 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Daytona- -Carbon- -Leather- | 1 |
| 1 | 9700 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Cadenino- -Carbon- -Leather- -Leather- | 1 |
| 1 | 9701 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Cadenino- -Carbon- -Leather- | 1 |
| 1 | 9676 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Cadenino- -Carbon- -Leather- -Leather--Valid for USA and CDN- -For vehicles up to Ass. No. 86008 with seat with back panel | 1 |
| 1 | 9677 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Cadenino- -Carbon- -Leather- | 1 |
| 1 | 9702 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona + lining- -Carbon- -Leather- | 1 |
| 1 | 9703 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona + lining- -Carbon- -Leather- | 1 |
| 1 | 9678 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Daytona + lining- -Carbon- -Leather- | 1 |
| 1 | 9679 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Daytona + lining- -Carbon- -Leather- | 1 |
| 1 | 9704 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Lozengy- -Carbon- -Leather- -Leather- | 1 |
| 1 | 9705 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Lozengy- -Carbon- -Leather- -Alcantara- stitching | 1 |
| 1 | 9680 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Lozengy- -Carbon- -Leather- | 1 |
| 1 | 9681 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Lozengy- -Carbon- -Leather- | 1 |
| 1 | 9706 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Piping + Quilt- -Carbon- -Leather- | 1 |
| 1 | 9707 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Piping + Quilt- -Carbon- -Leather- | 1 |
| 1 | 9682 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Piping + Quilt- -Carbon- -Leather- | 1 |
| 1 | 9683 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Piping + Quilt- -Carbon- -Leather- | 1 |
